SAE-Compliant On-Road Lighting With RGBW Chasing Style
The XKGlow XKGMX-CUBE-D-KIT delivers the XKmax RGBW Addressable Cube Light Kit in a driving beam configuration engineered for on-road visibility. Each kit includes two cube lights packed with 20-watt high-output LED chips, drawing 30W max per cube, and a RGBW chasing backlight powered by 7.2W for a total of 16 million color combinations.
The XKGMX-CUBE-D-KIT driving beam is DOT-compliant and SAE-certified, making it legal for on-road use while still delivering the RGBW color chasing effects and XKmax smartphone app control that XKGlow is known for. Whether you are looking to upgrade your trail rig or your daily driver, the XKGMX-CUBE-D-KIT cube lights offer a purpose-built driving beam with the style to match.
Key Features
- Driving beam pattern engineered for on-road visibility, SAE-compliant and DOT-approved for legal street use
- 20-watt high-output LED chips per cube deliver intense, dependable white light output
- RGBW chasing backlight with 16 million colors and 28+ pre-built chasing themes
- XKmax Bluetooth smartphone app control with music sync, speed sync, and acceleration sync
- DIY pattern builder for fully custom chasing animations, brightness, speed, and color
- Upgradeable controller supports 2-channel or 4-channel expansion for adding additional XKmax lights
- Firmware update capability via app keeps your lights current with the latest XKmax features
- Multiple mounting options available including fog light and flush-mount face plates (sold separately)
- 3-year warranty backed by XKGlow
Specifications
| Detail | Value |
|---|---|
| Part Number | XKGMX-CUBE-D-KIT |
| Brand | XKGlow |
| Beam Pattern | Driving Beam |
| Compliance | SAE / DOT Compliant |
| LED Power per Cube | 20W high-output LED chips |
| Max Power per Cube (White) | 30W |
| Backlight Max Power per Cube | 7.2W RGBW |
| Input Voltage | 11 to 14V DC |
| Controller Max Load | 5A per channel |
| Connectivity | Bluetooth 4.0 Low Energy |
| Color Options | 16 million RGBW colors |
| Light Themes | 28+ pre-built chasing themes |
| App | XKmax Smartphone App (iOS and Android) |
| Quantity | 2 cube lights per kit |
| Warranty | 3 Years |
| Fitment | Universal |
| UPC | 850066621929 |
What’s Included

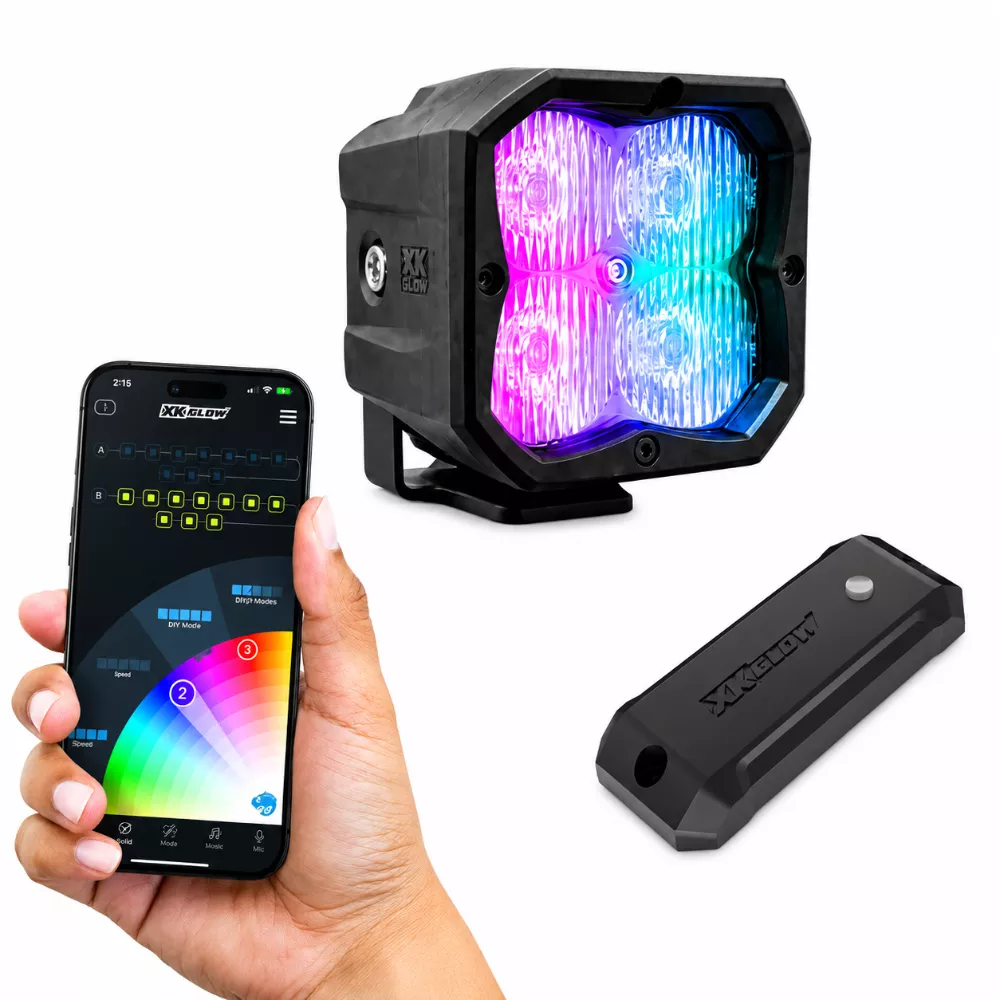

- 2x XKGlow XKmax RGBW addressable cube lights (driving beam)
- 1x XKmax Bluetooth controller
- Wiring harness and mounting hardware
Frequently Asked Questions
Is the XKGMX-CUBE-D-KIT driving beam legal for on-road use?
Yes. The driving beam variant of the XKGlow XKmax cube kit is SAE-compliant and DOT-approved, making it legal for use on public roads in the United States. The fog and driving beam models are specifically engineered for on-road visibility while meeting DOT-compliant beam standards for safer driving.
What is the difference between the driving beam and the flood or spot beam cube kits?
The XKGMX-CUBE-D-KIT driving beam is engineered for on-road use with a controlled, road-legal beam pattern. The flood and spot beam kits are designed for off-road use where wider coverage or longer-distance projection is needed. For street use, the driving beam is the correct choice.
How does the XKmax smartphone app control the XKGMX-CUBE-D-KIT?
The XKmax app connects via Bluetooth 4.0 Low Energy and gives you full control over color, brightness, speed, and chasing patterns. You can choose from 28+ pre-built themes or build your own in the DIY builder. The app also supports music sync, vehicle speed sync, and acceleration sync for dynamic real-time effects.
Can I add more XKmax lights to the XKGMX-CUBE-D-KIT system?
Yes. The included controller is upgradeable to a 2-channel or 4-channel version, allowing you to expand your XKmax lighting ecosystem with additional cube lights, rock lights, or other XKmax-compatible accessories on the same controller and app.
What mounting options are available for the XKmax cube lights?
The XKmax cube lights support multiple mounting configurations including standard, fog light bracket mount, and flush-mount face plate options. Additional mounting hardware is available separately through XKGlow to fit your specific vehicle and build requirements.
Does the XKGMX-CUBE-D-KIT work in the rain or off-road conditions?
The XKmax cube lights are built for rugged use and are designed to handle wet and dusty off-road conditions. Consult the XKGlow website for the specific IP waterproof rating of the cube lights in your kit before any submersion-level use.
What vehicles is the XKGMX-CUBE-D-KIT compatible with?
The XKGMX-CUBE-D-KIT is a universal kit that fits any 12V vehicle. It is especially popular on Jeeps, trucks, UTVs, and off-road builds. Mounting bracket compatibility varies by vehicle, and additional brackets may be needed for your specific application.
How long does installation take for the XKmax cube kit?
XKGlow rates the installation at approximately 1 to 2 hours for a standard mount configuration. Flush-mount or custom bracket installations may take longer depending on the vehicle and build complexity.
Installation Notes
- Select a mounting location for each cube light with adequate airflow clearance and away from direct heat sources.
- Mount the cube lights using the included hardware or optional bracket accessories for your specific vehicle.
- Route the wiring harness from each cube to the controller, keeping wires away from moving parts and heat.
- Connect the controller to a switched 12V power source and ground using the included leads.
- Download the XKmax app on your iOS or Android device and pair via Bluetooth.
- Follow the in-app setup to calibrate and test all lights before finalizing the installation.
