The VIDENT iSmart920 EV is a professional intelligent diagnostic tablet built for electric, hybrid, gasoline, and diesel vehicles. Designed for auto repair shops, locksmiths, and fleet maintenance, it combines EV battery pack detection, fullsystem diagnostics, advanced IMMO & ODO functions, and 38+ special service functions in one powerful tool. With 3 years of free online updates, it stays compatible with 20232024 models and supports over 150 EV brands.
Core Functions
- AllSystem Diagnostic Coverage
Perform OElevel diagnosis for engine, ABS, SRS, transmission, TPMS, gateway, immobilizer, and other control modules. Read/clear codes, view live data, perform active tests, access ECU info, and support coding functions. - Professional EV Battery Pack Detection
Deeply diagnose and analyze high-voltage battery packs for most electric vehicles, including cell voltage, insulation status, temperature, SOC/SOH, and fault locationcritical for EV maintenance and repair. - Advanced IMMO & ODO Functions
Support professional immobilizer programming and odometer adjustment services, making it ideal for locksmiths and auto electronics specialists. - 38+ Special Maintenance Functions
Covers oil service reset, EPB, DPF regeneration, injector coding, steering angle calibration, throttle matching, ABS bleeding, and many other daily repair tasks. - Wide Vehicle Compatibility
Works with 150+ electric vehicle brands and fully supports traditional gasoline & diesel cars, offering true 4in1 versatility.
Hardware Specifications
- System: Android 7.1
- CPU: CortexA17, 1.8GHz
- Memory: 2GB RAM + 64GB ROM
- Display: 10.1inch HD touch screen (1280800)
- Connectivity: USB 2.0, WiFi, HDMI, TypeC, Micro SD
- Power: 12V 2A input; builtin 10000mAh battery
- Operating Temp: 0C ~ 55C
- Dimensions: 320 210 32mm
- Weight: 6.3KG
- Item No.: HKSP637

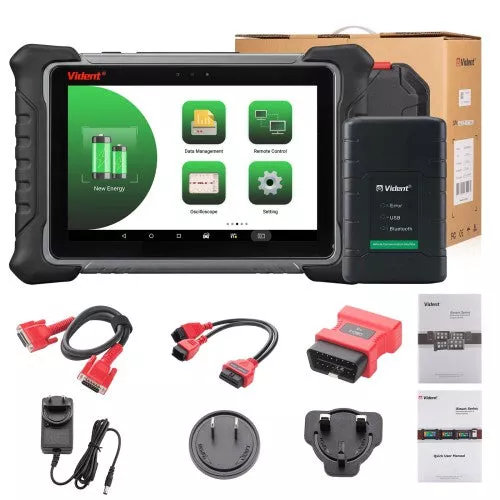

Whats Included
1 Main Tablet Unit
1 VCI Communication Box
1 Main Test Cable
1 12V Power Adapter
1 Universal Connector
1 Universal Jumper Cable
1 OBDII16 Connector
1 VL10, VL16
1 Honda3, Mazda17, KIA20
1 Chrysler12+8
1 VP001, RF01, RFID01
1 VB001, VB002
1 VW001, VW002, VW003
1 User Manual & Quick Guide
1 Rugged Carrying Case
Why Choose VIDENT iSmart920 EV?
4in1 Tool EV + gasoline + diesel + IMMO/ODO in one device
Battery Pack Expert professional high-voltage battery diagnosis
3 Years Free Update keep software current at no extra cost
Large HD Screen 10.1inch display for clear data & easy operation
Complete Accessories ready to use out of the box
Stable & Durable reliable performance for daily workshop use
Ideal for professional repair shops, locksmiths, new energy service centers, and multibrand maintenance facilities.
