Overview

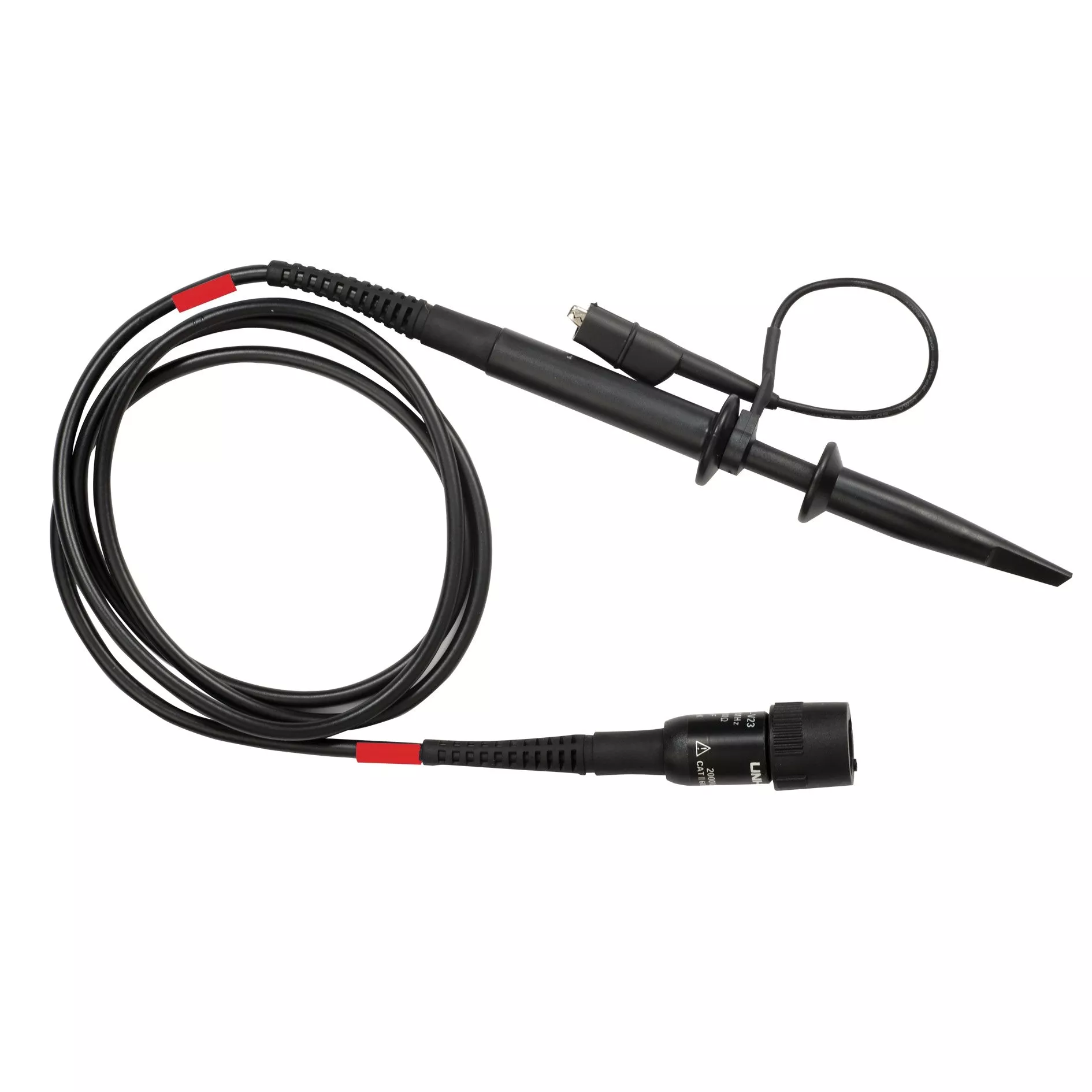

100 MHz high-voltage passive probe with 100:1 attenuation rated to 2000 Vpp. Measures power supply rails, inverter outputs, and high-voltage circuits safely on compatible oscilloscopes. Connects to UNI-T oscilloscopes and other oscilloscopes via BNC.
Key Features
- 100MHz Bandwidth Captures signal content up to 100MHz for accurate waveform measurement.
- 100:1 Attenuation Attenuation ratio suited to the probe measurement range.
- 2000Vpp Maximum Input Voltage Rated input voltage for safe operation.
- Standard BNC Connection Compatible with UNI-T oscilloscopes and most oscilloscopes with BNC inputs.
Specifications
| Bandwidth | 100 MHz |
| Probe Attenuation | 100:1 |
| Probe Max Voltage | 2000Vpp |
| Connector Type | BNC |
| Cable Length | 120cm |
| Input Capacitance | 10 pF |
| Input Resistance | 100 M |
| Compensation Range | 10 pF-50 pF |
Documentation
- UT-V23 User Manual
