Overview

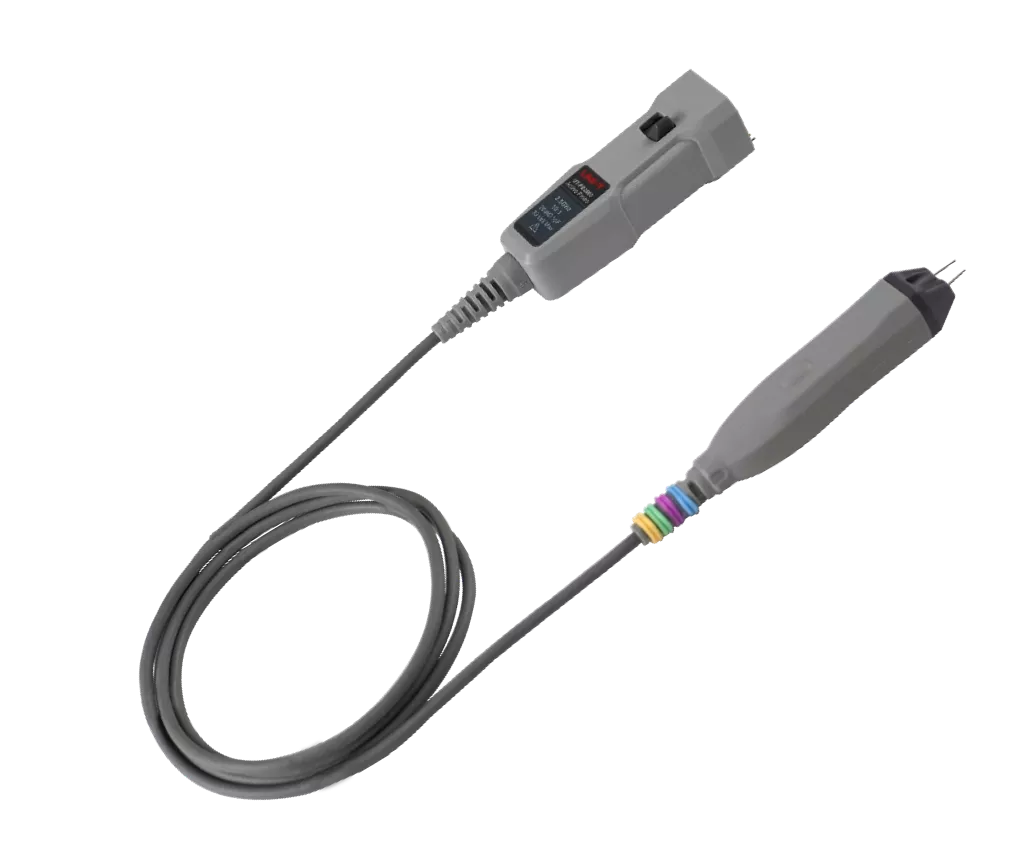

1.5 GHz active differential oscilloscope probe with 10:1 attenuation and 4V dynamic range. Safely measures floating voltages across motor drives, power converters, and bridge circuits without ground referencing. Compatible with UNI-T oscilloscopes and most oscilloscopes with BNC inputs.
Key Features
- 1.5GHz Bandwidth Captures signal content up to 1.5GHz for accurate waveform measurement.
- 10:1 Attenuation Divides the input signal for measuring higher-voltage circuits.
- 4 V Maximum Input Voltage Rated input voltage for safe operation.
- Standard BNC Connection Compatible with UNI-T oscilloscopes and most oscilloscopes with BNC inputs.
Specifications
| Bandwidth | 1.5 GHz |
| Probe Attenuation | 10:1 |
| Probe Max Voltage | 4 V |
