Overview

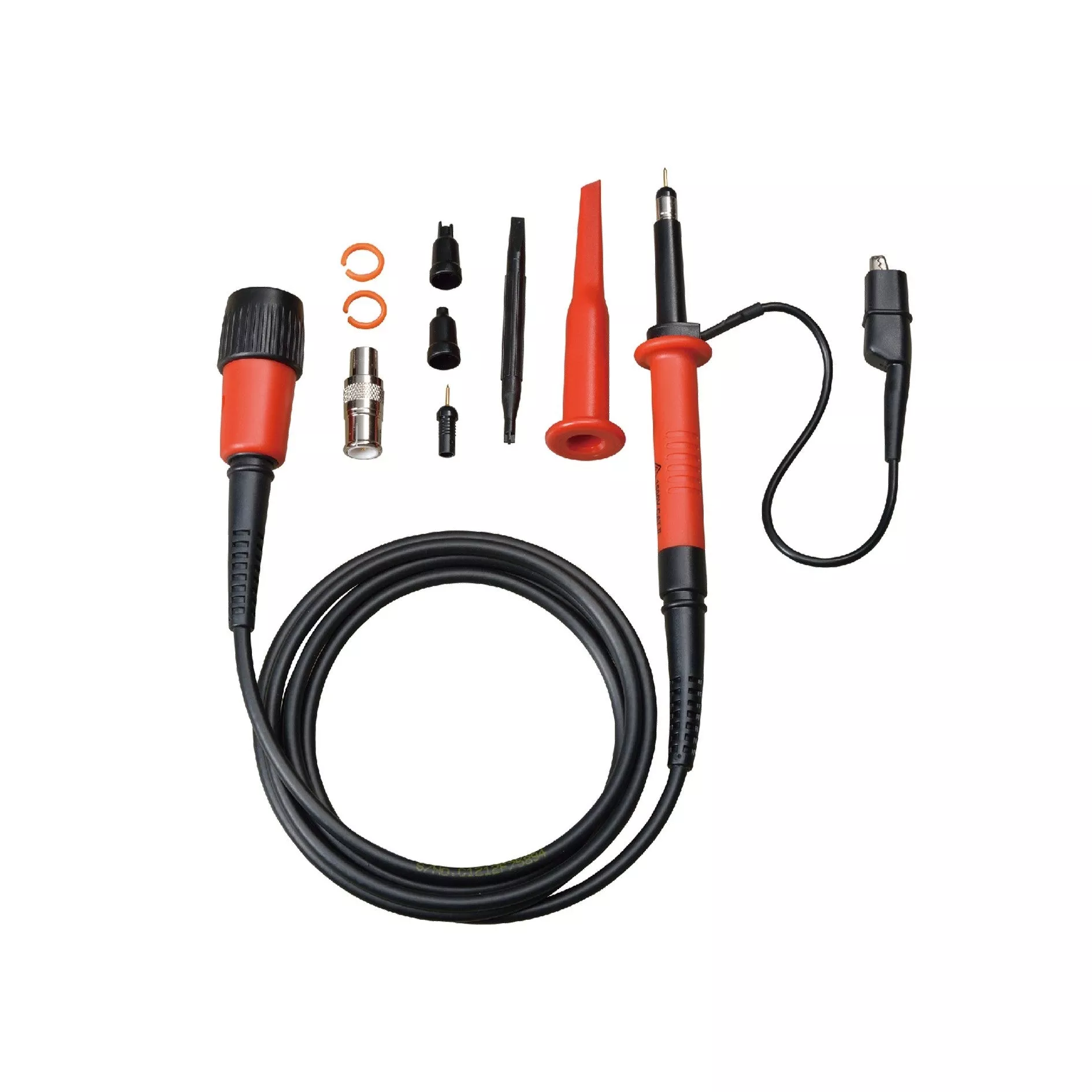

250 MHz high-voltage passive probe (100:1 attenuation) for measuring power supply rails, inverters, and high-voltage circuits up to several kV. Compatible with UNI-T oscilloscopes and most oscilloscopes with BNC inputs.
Key Features
- 250MHz Bandwidth Captures signal content up to 250MHz for accurate waveform measurement.
- 100:1 Attenuation Attenuation ratio suited to the probe measurement range.
- 1500Vpp Maximum Input Voltage Rated input voltage for safe operation.
- Standard BNC Connection Compatible with UNI-T oscilloscopes and most oscilloscopes with BNC inputs.
Specifications
| CAT Rating | CAT II 1500 V |
| Bandwidth | 250 MHz |
| Probe Attenuation | 100:1 |
| Probe Max Voltage | 1500Vrms |
| Rise Time | 1.4ns |
| Connector Type | BNC |
| Input Capacitance | 5.5 pF |
| Input Resistance | 100 M |
| Compensation Range | 10 pF-30 pF |
| Operating Temperature | 0 C – 50 C |
Documentation
- UT-P20 Datasheet
