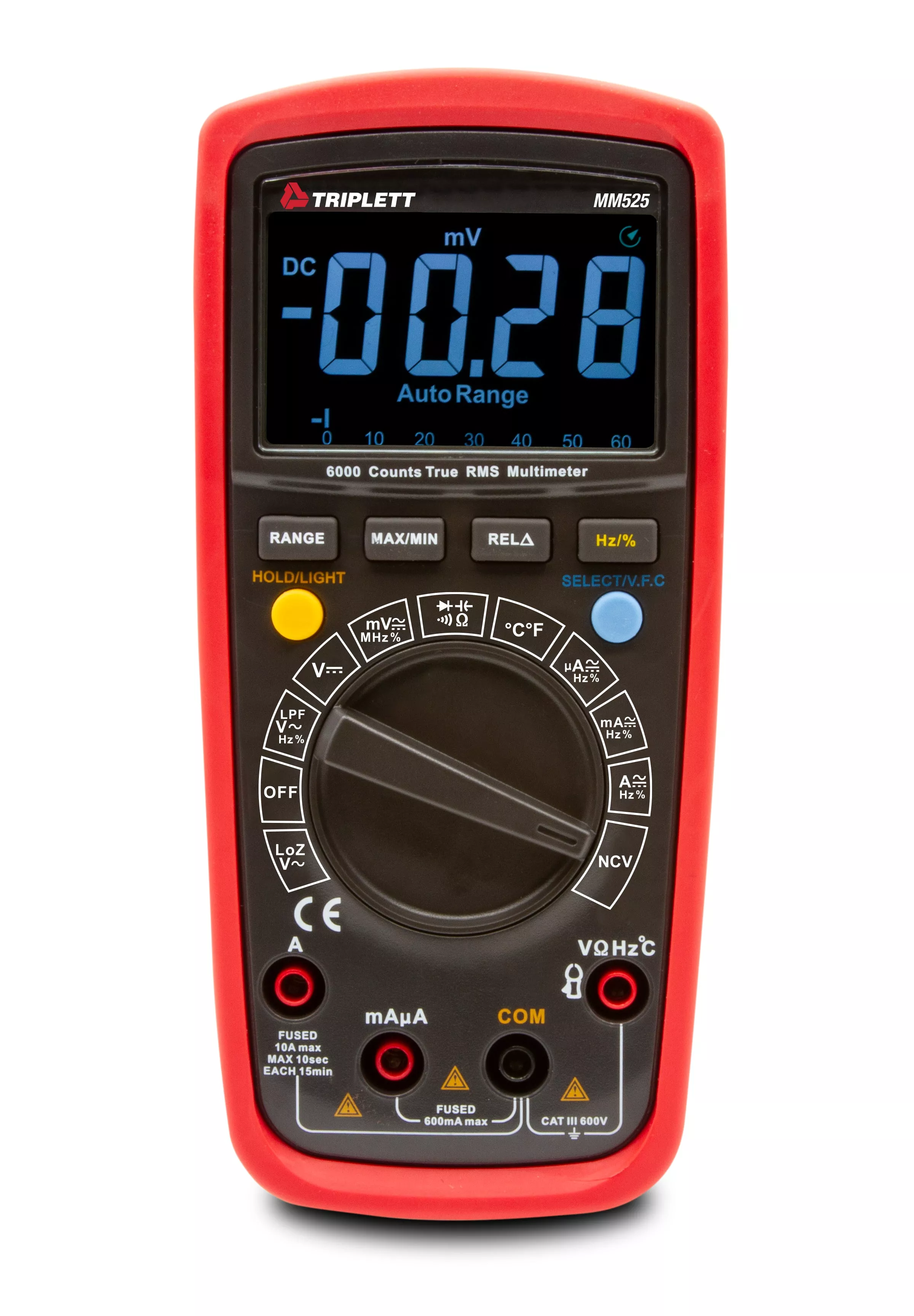

The Triplett MM525 is a 6000 count high performance digital multimeter with True RMS readings to provide better accuracy when measuring non-sinusoidal or noisy waveforms. It offers a large variety of measurement features including AC/DC Voltage, AC/DC Current, AC/DC A Current, Resistance, Temperature, Frequency, Capacitance, Continuity, and Diode Test. Read More>
DESCRIPTION
The Triplett MM525 is a 6000 count high performance digital multimeter with True RMS readings to provide better accuracy when measuring non-sinusoidal or noisy waveforms. It offers a large variety of measurement features including AC/DC Voltage, AC/DC Current, AC/DC A Current, Resistance, Temperature, Frequency, Capacitance, Continuity, and Diode Test. Additional features include an EBTN (Enhanced Black Twisted Nematic) display with 31-segment analog bargraph, Lo Z (impedance) mode for identifying ghost voltages, Low Pass FIlter (LPF) for filtering frequency and harmonic interference when measuring variable frequency drives, data hold, relative mode, and a built-in NCV Detector. The rubberized overmolded housing provides impact and drop resistance in a sleek ergonomic design. ETL listed with CAT III 600V safety rating that provides superior resistance to damage from transient overvoltages in demanding settings. The Model MM525 is suited for a variety of industrial and residential applications such as security, home theater, electrical, HVAC installations and more. Includes test leads, temperature probe, pouch case, and 2 x AA batteries. 1-year warranty.
MM525-NIST Comes with Certificate of traceability to NIST Standards
Please add11 businessdays lead-time for the NIST calibration process
CATEGORY: DIGITAL MULTIMETER
Features
- True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms
- 6000 count EBTN display w/bargraph
- LoZ mode (Low Impedance)
- A Current measurement
- Low Pass Filter (LPF)
- Data Hold and Relative mode
- Min/Max and Auto power off
- Low battery indicator
- CAT III 600V safety category
- ETL listed
Specification
| MM520 | MM525 | |
| Display counts | 6000 count | 6000 count EBTN w/bargraph |
| Basic Accuracy | 0.7% | 0.7% |
| AC/DC Voltage | 600V | 600V |
| AC/DC Current | 10A | 10A |
| AC/DC A Current | 600A | 600A |
| Resistance | 60M | 60M |
| Temperature | -40 to 1832F (-40 to 1000C) |
-40 to 1832F (-40 to 1000C) |
| Capacitance | 100mF | 100mF |
| Frequency | 10MHz | 10MHz |
| Duty Cycle | 0.1 to 99.9% | 0.1 to 99.9% |
| Continuity | <10 | <50 |
| Lo Pass Filter (LPF) | Yes | Yes |
| LoZ | Yes | |
| NCV Detector | Yes | Yes |
| Clamp Adapter Input | 10mV/A (60A max) | |
| Safety Category | CAT III-600V | CAT III-600V |
| Dimensions | 6.9 x 3.2 x 1.9″ (175 x 81 x 48.5mm) |
6.9 x 3.2 x 1.9″ (175 x 81 x 48.5mm) |
| Weight | 12.3oz. (350g) | 12.2oz. (345g) |
Downloads
Datasheet
Manual
