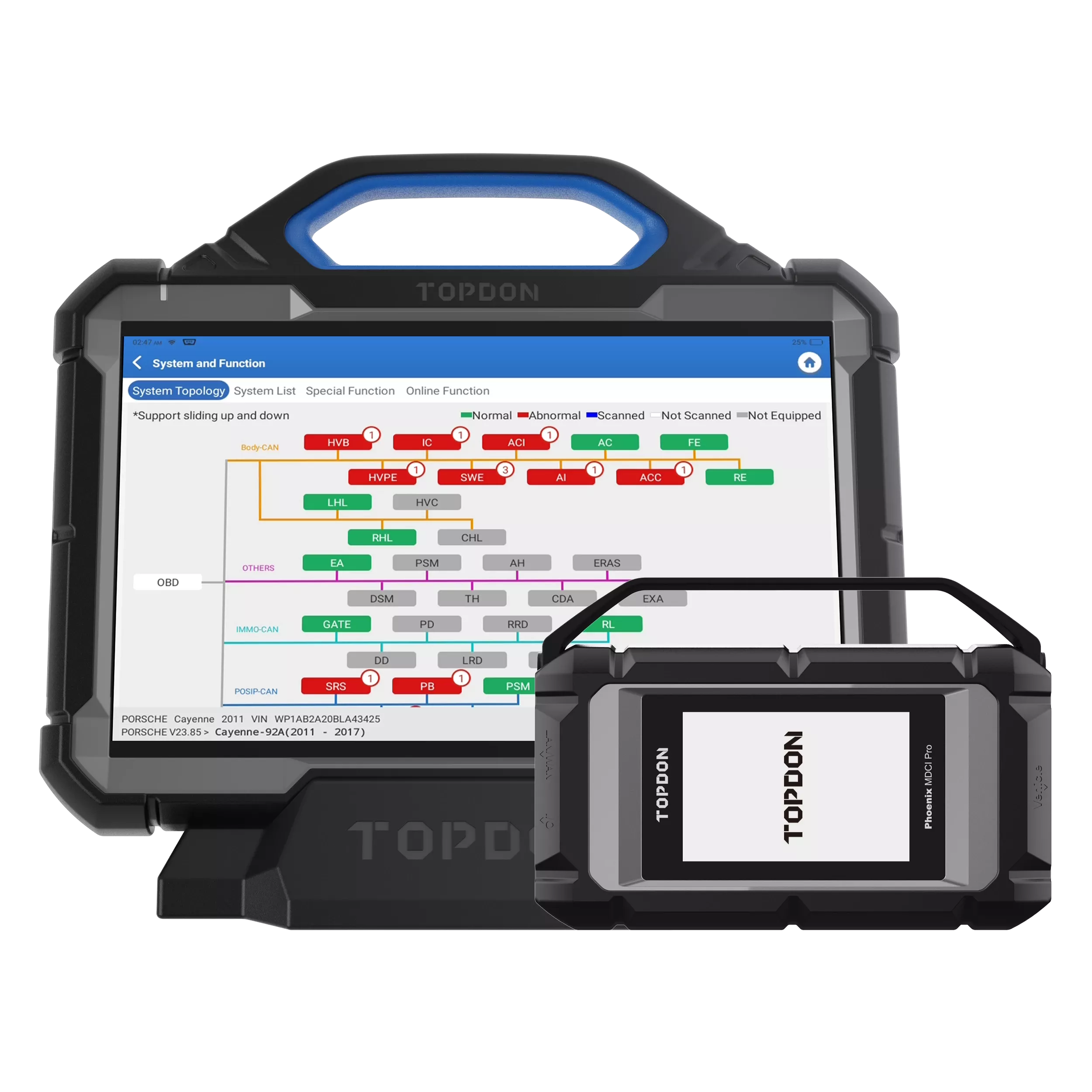

TOPDON Phoenix Max Diagnostic Kit

ThePhoenix MAX seriesby TOPDON includes the standard Phoenix MAX and the enhanced Phoenix MAX with Scope, both designed for professional automotive diagnostics. These tools offer a13.3-inch touchscreen, powerful8-core 2.0 GHz processor, and256GB storage for efficiently handling complex diagnostic tasks.

Both versions feature thePhoenix MDCI Pro, a versatile diagnostic interface that supportsJ2534, CAN FD, DoIP, D-PDU, and RP1210 protocols. This ensures compatibility with various vehicles, allowing professionals to performOE-level diagnostics, cloud-based programming, and online coding. Built-inADAS compatibility,topology mapping, andcloud-based programming for over 13 car brands streamline diagnostics for modern vehicles.

The Phoenix MAX w/ Scope comes with a 4-channel oscilloscope.This oscilloscope enables detailed analysis of electrical signals, allowing technicianstoevaluate sensors, ignition components, and circuit faults accurately.

Key Features

13.3-inch Full HD Display: Large anti-glare screen for clear data visualization.

8-Core Processor (2.0 GHz): Fast processing for smooth operation.

256GB Storage & 8GB RAM: Ample space for data and software.

Comprehensive Diagnostics:Offers 41 maintenance services and full-system diagnostics for over 200 vehicle models, with features like AutoVIN and topology mapping for simplified troubleshooting.

Phoenix MDCI Pro: Supports a wide range of protocols (J2534, CAN FD, DoIP).

Cloud-Based Programming: Compatible with brands like Benz, BMW, VW, Audi, Porsche, and more.

ADAS Compatibility: Simplifies calibration of advanced driver-assistance systems.

Advanced Security Access:The FCA Secure Gateway Module allows for DTC clearing, testing, and calibration on FCA vehicles.

Topology Mapping: Displays all car systems and statuses in one view.

Battery Life: 18,600 mAh battery for all-day operation.

Docking Station: Ensures fast charging and secure storage.

Exclusive Features for Phoenix MAX with Scope:

4-Channel Oscilloscope

Ideal for analyzing sensors, ignition components, and circuit faults.

Color-coded channels for comparing multiple signals at once.

Supports waveform capture for detailed diagnostics.

Precision Diagnostics: Pinpoint intermittent issues andaccurately evaluatepressure, vacuum, and electrical faults.
