DETAILS

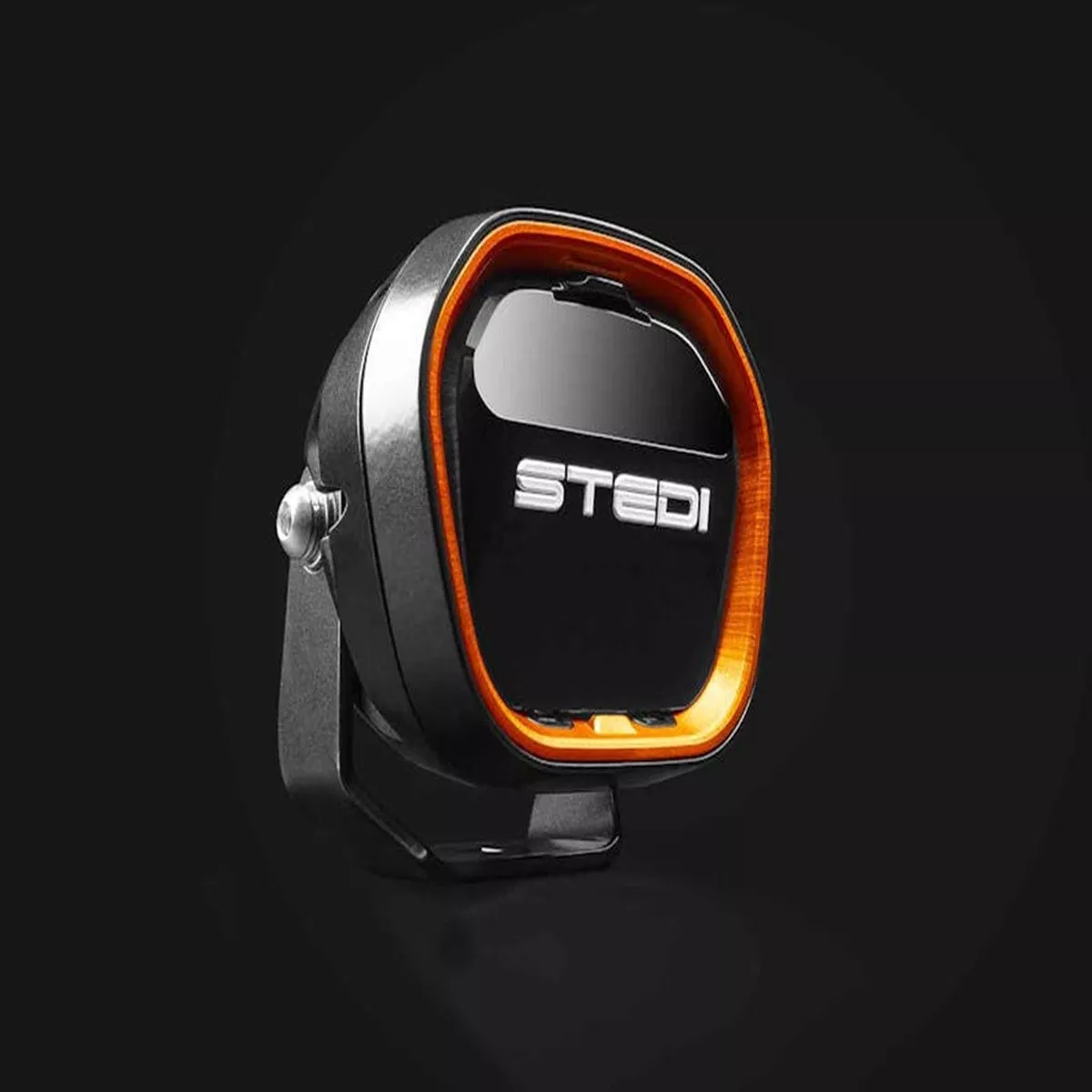

STEDI Type-X EVO 4″LED Spot/Flood Beam Driving Light
To view more details about each product please select a tab at the top of this description. When ready select an option from the dropdown menu and add to cart.
Just like its big brothers, the TYPE-X EVO 4″ LED Driving Light has arrived in a separate dedicated flood and spot beam pattern, meaning you can mix and match, and have full control of your desired beam to suit your driving. Utilising a more efficient technology from CREEs XP range of LEDs, TYPE-X EVO offers up to a staggering 285m of light throw down the road, and up to a 140m of light spread out to the shoulders when installed as a pair. Promising an even more intense beam pattern, this is the evolution of driving lights.
FLOOD BEAM
STEDI Type-X EVO 4″ LED Flood Beam Driving Light
Includes:1x STEDI Type-X MINI 4 INCH EVO LED Driving Light Flood Beam1x Protective STEDI Black Out Cover1x Grey Colour Fascia1x Orange Colour Fascia1x Type-X 4 INCH EVO BagComplete Bracket & Stainless Steel Fastener Kit Fitting Instructions
TECH SPECS
| LED | 10 x CREE XPP LED (each) |
| RAW LUMENS | 3,700 (each) |
| TESTED LUMENS | 2,500 (each) |
| AMP DRAW | 2.7A @ 12v / 1.35A @ 24V (each) |
| POWER DRAW | 27W |
| CANDELA | 55,000 (each)110,000 (each) |
| BEAM PATTERN | 10 x 30 Spread |
| INGRESS PROTECTION | IP68 | Submersible up to 3m |
| COLOUR TEMP (CCT) | 5000K |
| VOLTAGE COMPATIBILITY | 12v & 24v |
| LUMEN MAINTENANCE | 30,000 LM-80 |
| WEIGHT | 0.78kg (each) |
| OPERATING TEMP | -40C to 60C |
SPOT BEAM
STEDI Type-X EVO 4″
LED Spot Beam Driving Light
Includes:1x STEDI Type-X MINI (4 inch) EVO LED Driving Light Spot Beam1x Protective STEDI Black Out Cover1x Grey Colour Fascia1x Orange Colour Fascia1x Type-X 4 INCH EVO BagComplete Bracket & Stainless Steel Fastener Kit Fitting Instructions
TECH SPECS
| LED | 10 x CREE XPP LED (each) |
| RAW LUMENS | 3,700 (each) |
| TESTED LUMENS | 2,500 (each) |
| AMP DRAW | 2.7A @ 12v / 1.35A @ 24V (each) |
| POWER DRAW | 27W |
| CANDELA | 129,000 (each)258,000 (pair) |
| BEAM PATTERN | 10 x 5 Pencil Beam |
| INGRESS PROTECTION | IP68 | Submersible up to 3m |
| COLOUR TEMP (CCT) | 5000K |
| VOLTAGE COMPATIBILITY | 30,000 LM-80 |
| LUMEN MAINTENANCE | 12v & 24v |
| WEIGHT | 0.78kg (each) |
| OPERATING TEMP | -40C to 60C |
