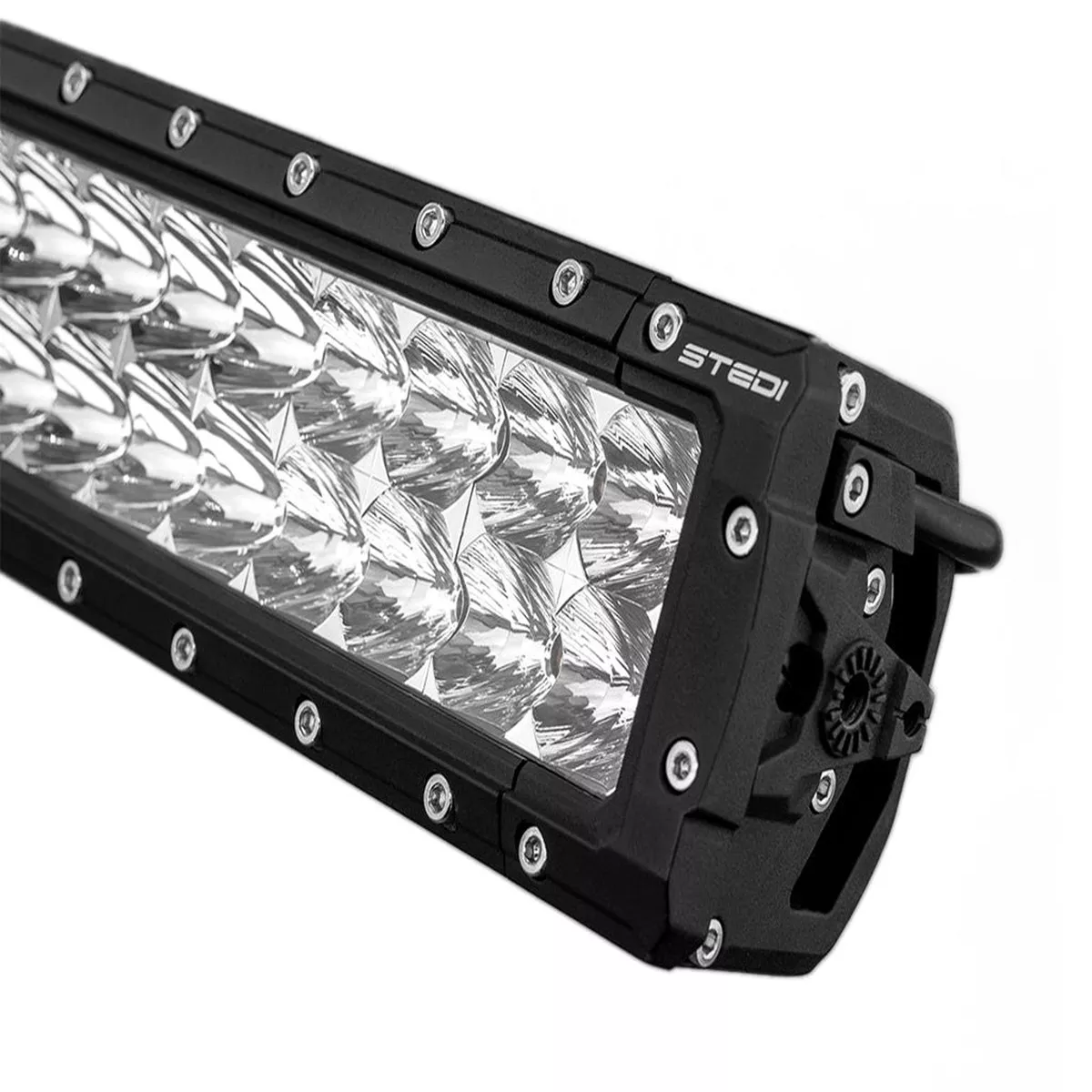

STEDI LED Lightbar Double Row 22″ 40 LED
Includes:1x ST4K-40 STEDI Oslon LED Light Bar2x Brushed Stainless Steel Side Brackets2x Adjustable Sliding Brackets Easy-Fit High Beam Wiring Kit | HB3 & H4 piggy-back included.Cable TiesWiring Instructions
TECH SPECS
| LEDMANUFACTURER | OSRAM (Oslon) |
| LED COUNT | 40 |
| VOLTAGE | 12V & 24V |
| LENS MATERIAL | OPTICAL GRADE, HARD COATED LEXAN |
| LUMENS | 9,600 LUMENS |
| PEAK INTENSITY (CANDELA) | 441,600cd |
| HOUSING MATERIAL | A360.0 Cast face plate, extruded Aluminum heat sink |
| AMPERES | 8.9A @ 13.6v |
| LIFESPAN | 50,000 |
| FLOOD BEAM | 50 |
| SPOT BEAM | 5.8 |
| INGRESS PROTECTION | IP68 |
| WEIGHT | 2.880kg |
| OPERATING TEMP | -40C to 60C |
MORE INFORMATION
PERFORMANCE THAT LETS YOU TURN THE SUN BACK ON.
STEDI ST4K-40 features 40 of OSRAMs finest OSLON LED, selected for its high luminous flux and perfectly matching optical properties.8 Flood + 24 Spot + 8 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50 and spot beam at 5.8 all the way to staggering 1 lux @ 663m Crystal White 5700K Colour temperature offers stunning clarity and definition with an excellent Colour Rendering Index (CRI). Our Pure-Drive circuit design allows 97% of input power to go directly to LEDs.BUILT TO GO ALL NIGHT.
A360.0 Cast face plate, extruded Aluminum heat sink | finished in 100% Polyester UV and abrasion resistant powder coat, ensures that our bars will never discolour.Pressure Equalization vent with Gore membrane | Protects against water ingress, dust & contaminants.IP68 | Dust & Particle tight + Water-proof up to 3 metersDrown it, we insist!Environmentally sealed DeutschDT connector.Backed by our no-nonsense 5-year replacement warranty.
MOUNT IT YOUR WAY.
We know you want flexible mounting options, which is why weve included two separate mounting options.
The included adjustable sliding mounts allow you to align the mount bolts to any pre-existing mounting holes. Make mounting to UHF tabs or Bullbars very straightforward.Or use our 3mm thick 304 Stainless steel side brackets, which feature + or – 15mm height adjustment.EASY FIT PLUG & PLAY HIGH BEAM WIRING HARNESS.
Included are the acclaimed Easy-Fit Plug and Play Wiring Harness with supplied H4 and HB3 adaptors making for an easy connection to the high beam. Further unlike other brands, our kit has built in electronics making our harness compatible with even the most modern and sophisticated wiring systems. Whether your vehicle is positive or negatively switched our harness will work right out of the box without any modification whatsoever.
