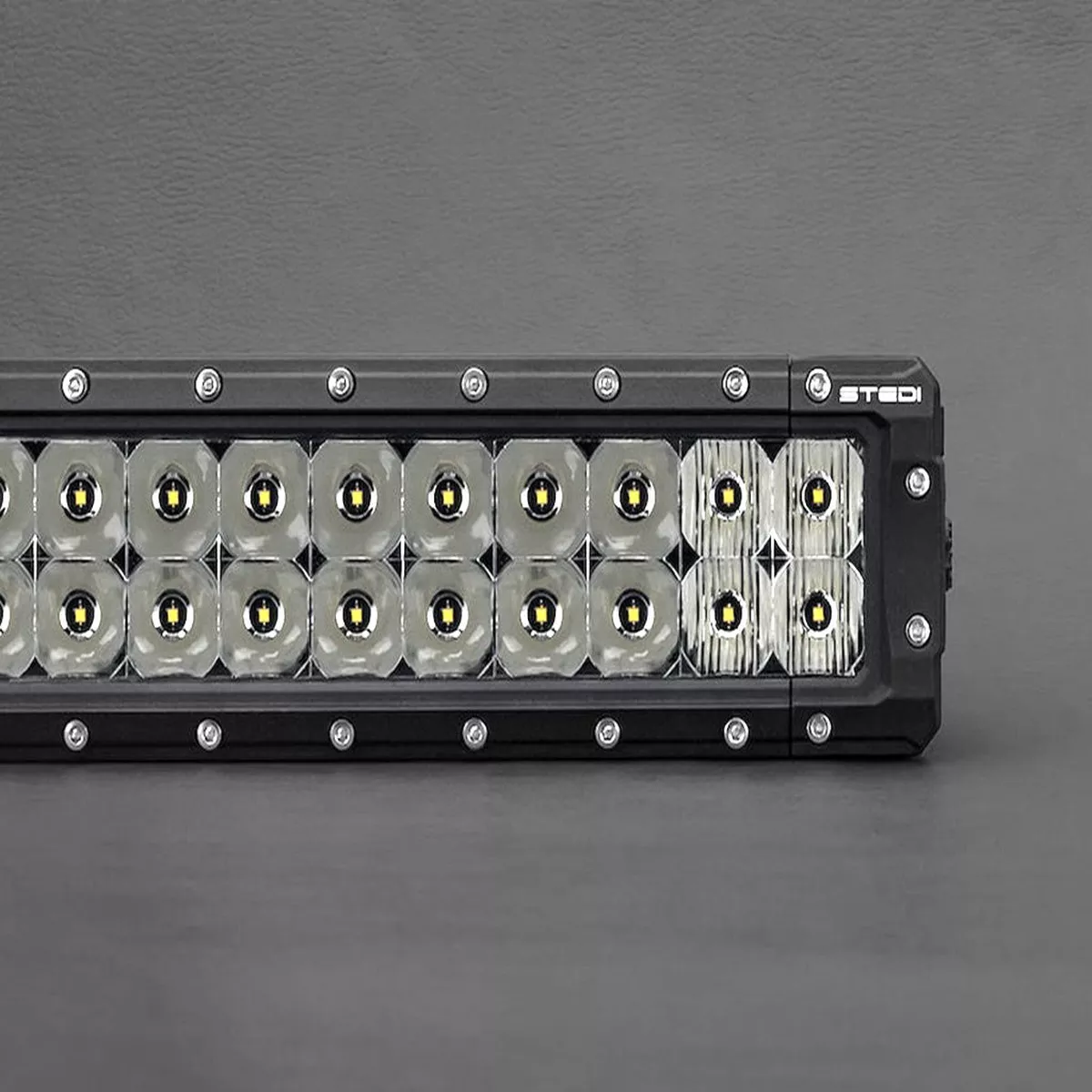

STEDI LED Lightbar Double Row 12″ 20 LED
Includes:1x 12 inch 20 LED STEDI Oslon LED Light Bar2x Brushed Stainless Steel Side Brackets2x Adjustable Sliding Brackets Easy-Fit High Beam Wiring Kit | HB3 & H4 piggy-back included.
TECH SPECS
| LEDMANUFACTURER | OSRAM (Oslon) |
| LED COUNT | 20 |
| VOLTAGE | 12V & 24V |
| LENS MATERIAL | Optical Grade, Hard Coated Lexan |
| LUMENS | 4,800 LUMENS |
| PEAK INTENSITY (CANDELA) | 220,800cd |
| HOUSING MATERIAL | A360.0 Cast face plate, extruded Aluminum heat sink |
| AMPERES | 4.2A @ 13.6v |
| LIFESPAN | 50,000 |
| FLOOD BEAM | 50 |
| SPOT BEAM | 5.8 |
| INGRESS PROTECTION | IP68 |
| WEIGHT | 1.610kg |
| OPERATING TEMP | -40C to 60C |
MORE INFORMATION
PERFORMANCE THAT LETS YOU TURN THE SUN BACK ON
STEDI ST4K-20 features 20 of OSRAMs finest OSLON LED, selected for their high luminous flux and perfectly matching optical properties.4 Flood + 12 Spot + 4 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50 and spot beam at 5.8 all the way to staggering 1 lux @ 468mCrystal White 5700K Colour temperature offers stunning clarity and definition with excellent Colour Rendering Index (CRI). Our Pure-Drive circuit design allow 97% of input power to go directly to LEDs.BUILT TO GO ALL NIGHT
A360.0 Cast face plate, extruded Aluminum heat sinkg | finished in 100% Polyester UV and abrasion resistant powder coat, ensures that our bars will never discolour.Pressure Equalization vent with Gore membrane | Protects against water ingress, dust & contaminants.IP68 | Dust & Particle tight + Water-proof up to 3 metersDrown it, we insist!Environmentally sealed DeutschDT connector.Backed by our no nonsense 5-year replacement warranty.
MOUNT IT YOUR WAY;
We know you want flexible mounting options, which is why we’ve included two seperate mounting options.
The included adjustable sliding mounts allow you to align the mount bolts to any pre-existing mounting holes. Make mounting to UHF tabs or Bull bar dech very straight forward.Or use our 3mm thick 304 Stainless steel side brackets, which feature + or – 15mm height adjustment.
