DETAILS

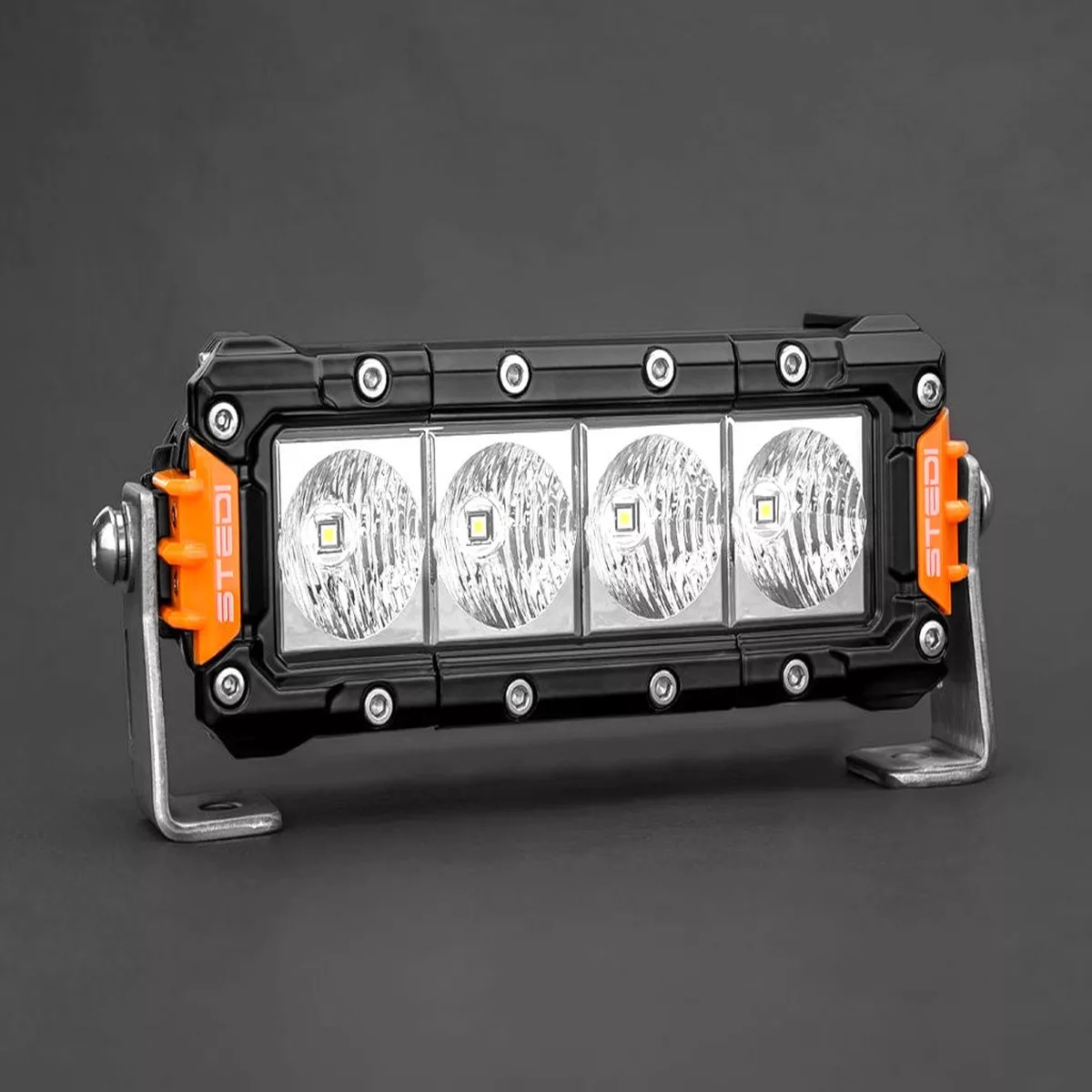

STEDI ST3301 PRO 7.5″ 4 LED Work Light Bar
Includes:1x ST3301 Pro 7.5 INCH 2x Coloured end caps (Grey)2x Coloured end caps (Orange)Stainless Steel Nuts & Bolts Stainless Side BracketsMale and Female Deutsch Connectors
TECH SPECS
| LUMEN FLUX | 3,440Lm |
| OPERATING VOLTAGE | 10-45V DC |
| OPERATING TEMPERATURE | -40C – 60C |
| IP RATING | IP68 |
| LED | 4 x OSRAM |
| COLOUR TEMPERATURE (CCT) | 5600K |
| MATERIAL | Die-Cast Aluminium Housing |
| LENS | GE Lexan |
| MOUNTING BRACKET | 3mm 304 Stainless Steel |
| BOLTS AND FITTINGS | 3 Series Stainless Steel |
| BEAM TYPE | 45 Flood |
| AMP DRAW | 2.4A @ 13.6v |
| WEIGHT | 0.840kg |
PHOTOMETRIC DATA
| 770 m | |
| 1,192 m |
MORE INFORMATION
The ST3301 Pro Series 7.5″ 4 LED Work Light has been designed to offer a high volume of light in the mid-range, with excellent visibility on the road shoulders. With a strong performance beam suited for any application,it is perfect as a small but sturdy work light. With this size, you will be able to emit a powerful beam in order to illuminate any space, large or small.The all-new flood reflector design minimizes light scatter on the vertical axis, allowing for a more concentrated illumination. This means that there is more light where it matters most. The half-width beam angle of 45 allows for a range of rotations, achieving excellent light coverage.
KEY TECHNICAL BREAKDOWN
Ingress Protection IP68 (Backed by a certificate of conformity),Coordinated Colour Temperature 5500K – Excellent colour contrast. 4 x CREE XM-L2 LEDs4 Flood Reflectors Tough GE Lexan primary lens which 250 times the impact-resistant strength of glass and 30 times stronger than acrylic Poly-carbonate. Waterproof Deutsch DT-2 ConnectorStainless steel side bracket included, with optional bottom mount sold separately.Guaranteed against electromagnetic (EMC) and radio frequency (RFI) interference
