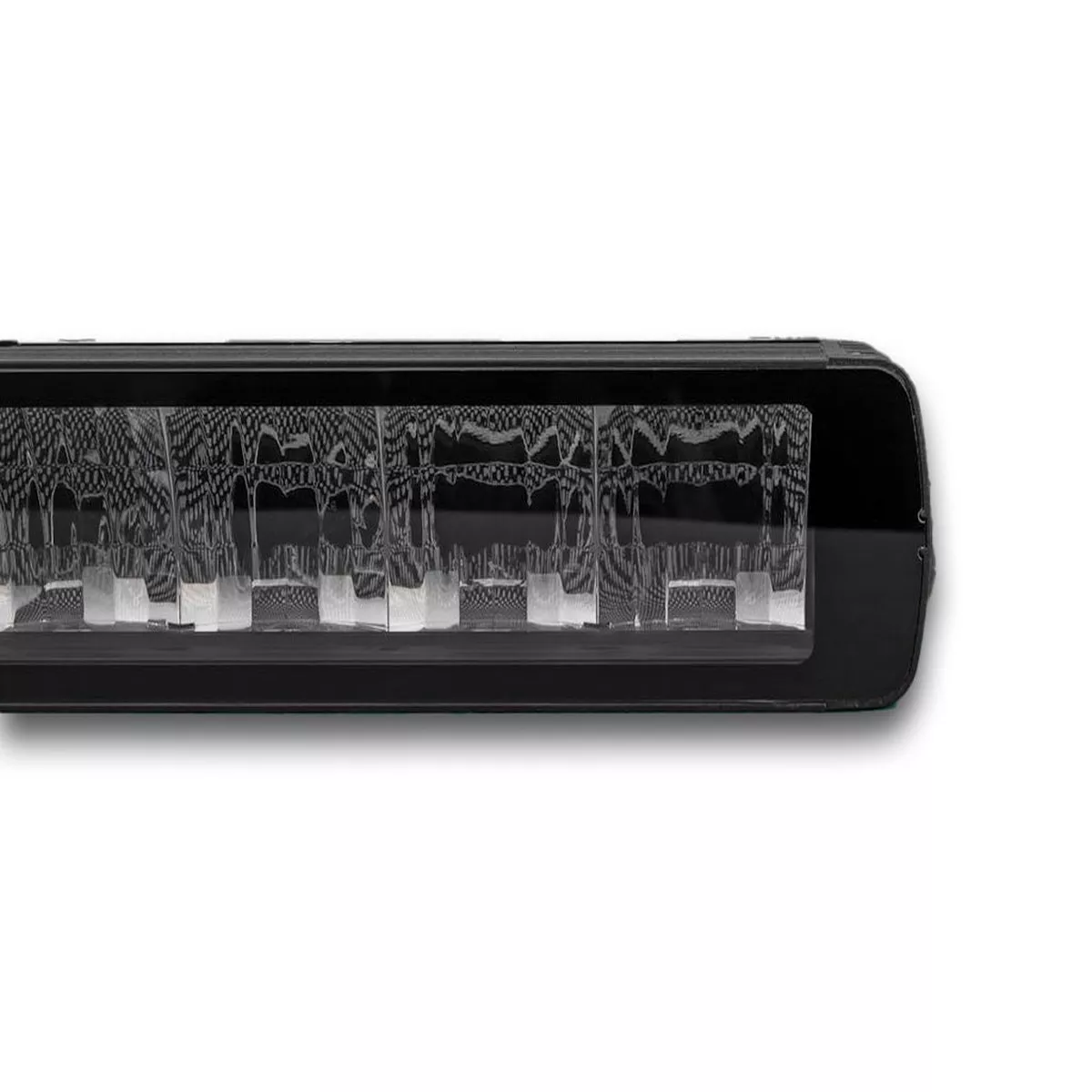

STEDI 40.5″ 40 LED Slim Light Bar
Includes:– 1 x 40.5 Inch ST-X-20L LED Light Bar– 2 x Steel Side Brackets– 2 x Steel Sliding Brackets– 2 x Brace Support Brackets– Easy-Fit High Beam Wiring Kit | HB3 & H4 piggy-back included.– Comprehensive 304 Stainless Steel fasteners– Wiring Instructions
Details:If you’re looking for a driving light that offers near-field spread, keep moving, this is not that. The optical properties of the hooded reflector design is best described as high-beam on steroids. The ST-X excels in the high-speed, high-way application when mid to long-range visibility is critical.
– Significantly minimises adverse reflection from road signs– Controlled vertical spread minimises reflections off of high-mounted road signs.– 16x 15W LEDs– LED Parking / Position Light Function (Amber or White built-in)– Breather allows pressure equalisation when rapid heat up and cool down cycles occur– Anodized Polyester Powder Coat– Weatherproof Deutsch DTP Connector– Includes adjustable Side brackets & Sliding bottom brackets– Includes our Easy-Fit Plug & Play High Beam Wiring Harness with HB3 & H4 adapter (Compatible with both negative and positive switched vehicles)– Protected against reverse polarity– Shockproof, IP68 waterproof, UV Shielded– Protected Against RFI / EMC Interference– Voltage & current surge protection– Pulse Width Modulation Thermal Management
Tech Specs:Voltage:9-36VAmperes: 17.2A @ 12V (full power), 3.28A @ 12V (limit power)Power: 206.4W (full power), 39.36 (limit power)Lumens: 8400LM (full power), 2327LM (limit power)Colour Temperature:5000kAmp Rating: 0.5aPhotometric Data: 1 lux @ 859m (full power), 1 lux @ 450m (limit power)Lens Material: Optical Grade, Hard-Coated LexanHousing Material: 6063 ExtrusionIngress Protection:IP68Candelas: 739582 @ full power, 203337 @ limit powerConnector: 60cm cable with DTP 4inOperating Temp: -40C ~ +60CCertificates: R112, ref. 50 and R10Lifespan 50, 000hrs (LM80)Product Weight: 3.7kgShipping Weight: 4.2kg
