DETAILS

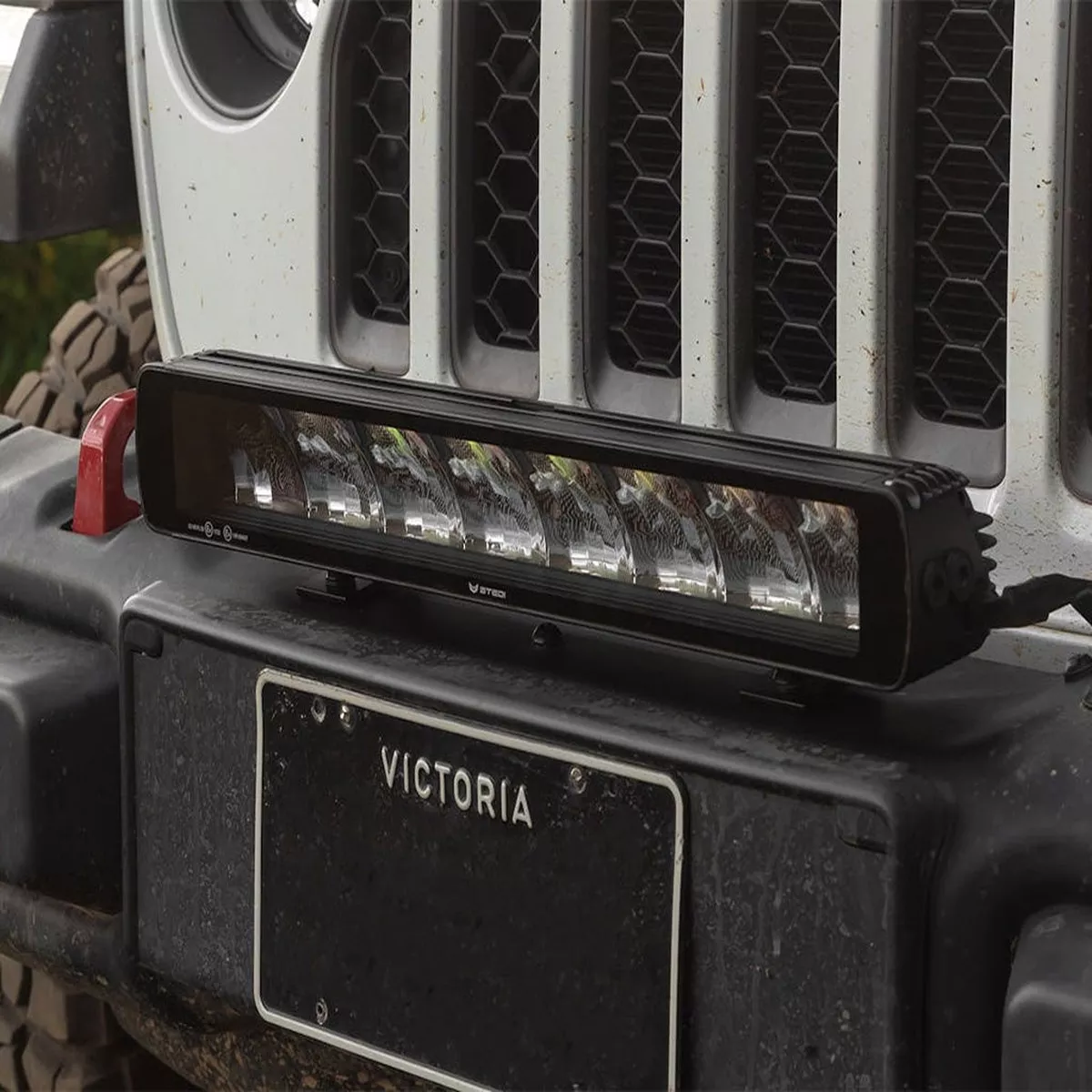

STEDI ST-X 21.5 inch LED Light Bar
Includes:1x 21.5 Inch ST-X-20L LED Light Bar2x Steel Side Brackets2x Steel Sliding Brackets2x Brace Support BracketsEasy-Fit High Beam Wiring Kit | HB3 & H4 piggy-back included.Comprehensive 304 Stainless Steel fastenersWiring Instructions
TECH SPECS
| VOLTAGE | 9-36V |
| DRL VOLTAGE | 12-24V compatible |
| AMPERES | 8.5A @ 12V (full power), 3.46A @ 12V (limit power). |
| POWER | 102W (full power). 41.52W (limit power) |
| LUMENS | 4010LM (full power). 2310LM (limit power) |
| COLOUR TEMPERATURE | 5000K |
| AMP RATING | 0.3a |
| PHOTOMETRIC DATA | 1 lux @ 586m (full power), 1 lux @ 445m (limit power) |
| LENS MATERIAL | Optical grade, Hard-Coated LEXAN |
| HOUSING MATERIAL | 6063 EXTRUSION |
| INGRESS PROTECTION | IP68 |
| CANDELAS | 344017 (full power), 189429 (limit power) |
| CONNECTOR | 60cm Cable with DTP 4in |
| CERTIFICATES | R112, ref. 50 and R10 |
| LIFESPAN | 50, 000hrs (LM80) |
| WEIGHT | 2.6kg |
| OPERATING TEMP | -40C ~ +60C |
MORE INFORMATION
THE BEAM PATTERNIf you’re looking for a driving light that offers near-field spread, keep moving, this is not that. The optical properties of the hooded reflector design is best described as high-beam on steroids. The ST-X excels in the high-speed, high-way application when mid to long-range visibility is critical.
Significantly minimises adverse reflection from road signsControlled vertical spread minimises reflections off of high-mounted road signs.KEY FEATURES
8x 15W LEDsLED Parking / Position Light Function (Amber or White built-in)Breather allows pressure equalisation when rapid heat up and cool down cycles occurAnodized Polyester Powder CoatWeatherproof Deutsch DTP ConnectorIncludes adjustable Side brackets & Sliding bottom bracketsIncludes our Easy-Fit Plug & Play High Beam Wiring Harness with HB3 & H4 adapter (Compatible with both negative and positive switched vehicles)Protected against reverse polarityShockproof, IP68 waterproof, UV ShieldedProtected Against RFI / EMC InterferenceVoltage & current surge protectionPulse Width Modulation Thermal Management
