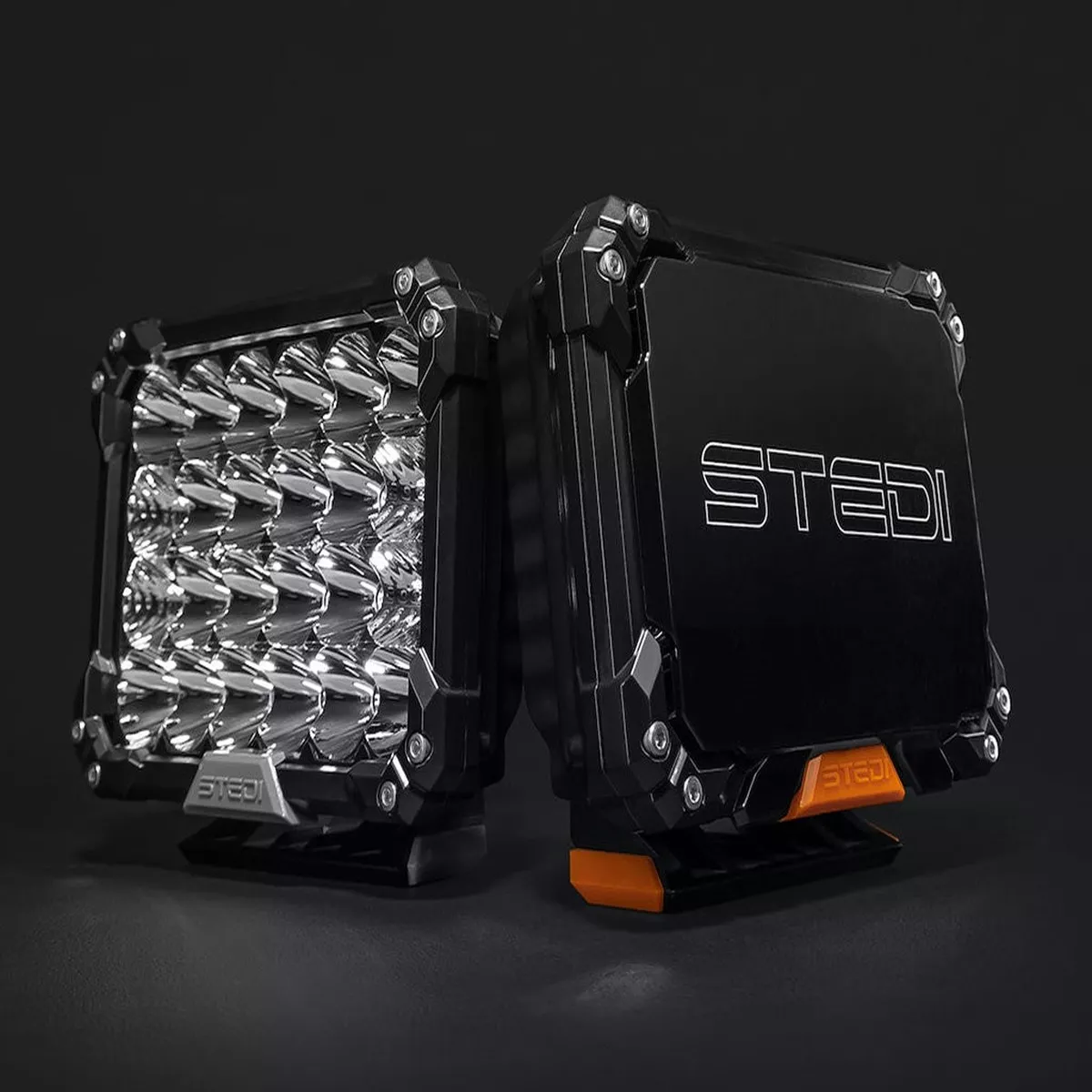

STEDI Quad Pro LED Driving Lights
Includes:2 x QUAD Pro LED Spot Lights2 x STENCIL Black Out Covers1 x Set Orange Colour Caps (fitted) 1 x Set Grey Colour Caps Easy Fit High Beam Wiring HarnessH4 & HB3 adapters to High Beam Installation ManualStainless fitting hardware
Details:– The compact housing design offers endless possibilities in terms of mounting locations. We think these are going to be hugely popular as roof-mounted arrays and on bull bars with minimal clearance like the AFN bars.
– Includes our legendary Easy-Fit plug and play high beam wiring harness– IP68 Ingress protection means our QUADS are 100% immersible in water and dust-tight.– 5700K Colour temperature provides just the right amount of warmth to cut-through air-born particles.– Environmentally sealed Deutsch DT connectors– RFI and EMI suppressed circuit design, means no interference with radio or communications equipment.– High-Pressure Die-Cast Bracket– Spread and Spot beam reflectors built-in.
Tech Specs:LED: 24 x Oslon High-Flux LEDRaw Lumens: 17,040 (Pair)Tested Lumens: 11,360 (Pair) Amp Draw: 7.4A @ 13.2v (each)Power Draw: 97W (each)Candela: 693,889cd Beam Pattern: 4 x Spread 20 x Pencil BeamIngress Protection: IP68 | Submersible up to 3mColour Temp (CCT): 5700KVoltage Compatibility: 12v & 24v Lumen Maintenance: 50,000 LM-80Weight: 1.4Kg (Including cover) (each)
Photometric Data10m: 6,938 Lx50m: 277 Lx200m: 17 Lx300m: 7.7 Lx400m: 4 Lx500m: 2.7 Lx833m: 1 Lx
