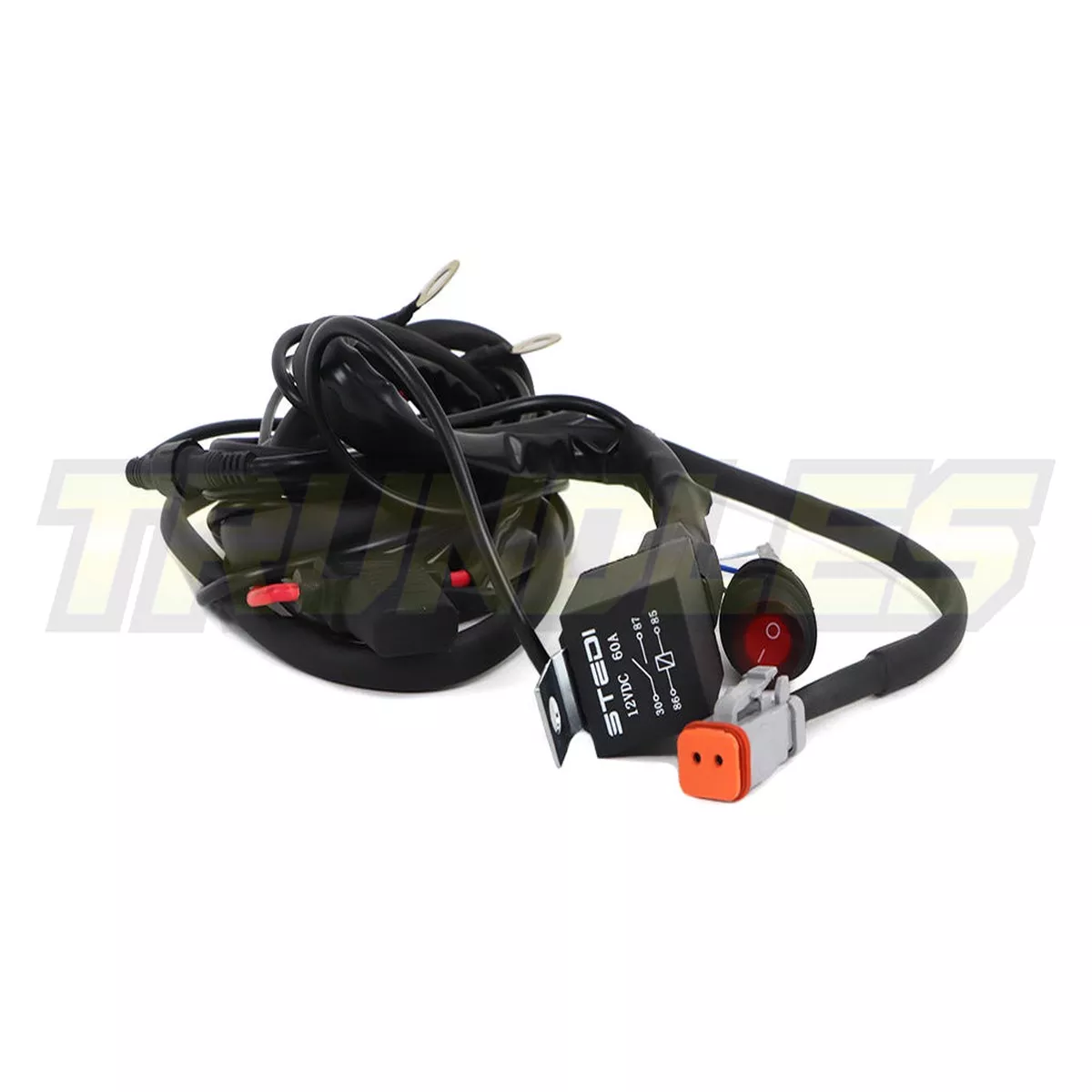

STEDI LED Work Light Wiring Harness (Not High Beam Triggered)
Note 1:This harness is not high beam activated, please refer to our other listing for our High Beam Trigger light harnesses.
Includes:1x STEDI Work Light Wiring Harness Kit (12v)1x Dime Switch (20mm)1x User Instruction Manual
Details:
STEDI – Fully Assembled Wiring kit for LED Work Lights or camp lights.
It contains everything you need to get your lights connected. Press button ON/OFF switch. The included relay is rated to 60A so you can use the one wiring kit to connect several light bars to the one wiring loom.
Featuring a total of 4.8 meters of wiring (full stretched out)
2.8m of cabling from Relay to Switch2.0m of cabling from light connectors to Relay12vDC 30A Rated Fuse Kit12vDC 60A Switching RelayON/OFF SwitchUV Rated Insulation
TECH SPECS
| WIRING KIT RATING | 12vDC 30A |
| RELAY RATING | 12vDC 60A |
| FUSE | 30A |
| CABLE LENGTH | 4.5m + or – |
| SWITCH TYPE | Dime Switch 20mm |
| RATED | 15A |
