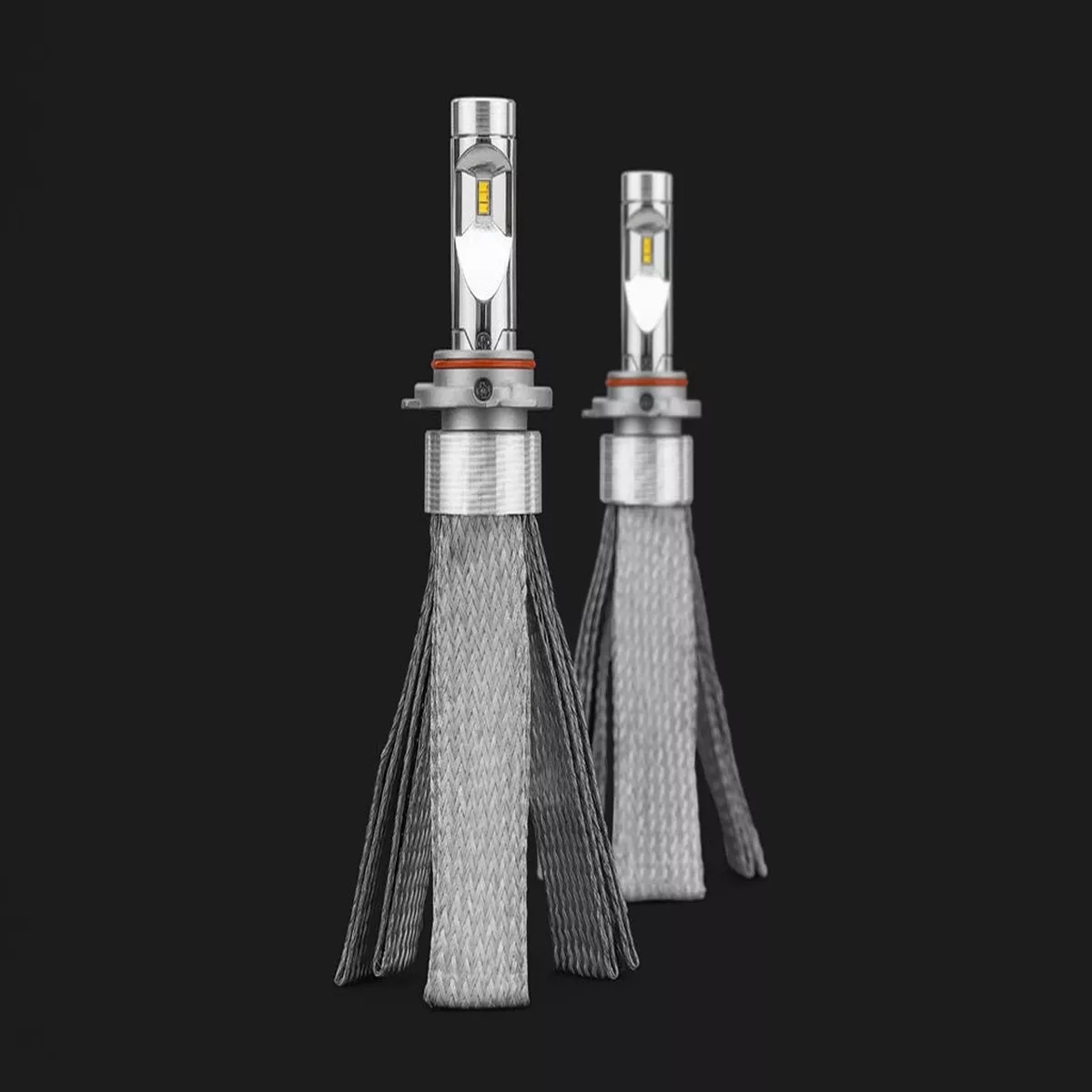

STEDI HB3 (9005) Copper Head LED Bulbs (Pair)
Note 1: Due to the difference in Road ruling between Australia and New Zealand these are designed for off-road use only and are not compliant on NZ roads.
Note 2: CLICK HERE TO DOUBLE CHECK THESE ARE COMPATIBLE WITH YOUR VEHICLE.
Includes:2x HB3 (9005) STEDI Copper Head Headlight LED Conversion Headlights2x Driver Modules3M Double Sided TapeZip TiesUser Instruction Manual
Details:– Six 100% Pure Copper(Cu) belts allow maximum thermal conductivity. The thermoelectrically separated copper substrates allow heat to transfer to the substrate efficiently and quickly.– American made Down Corning thermal paste to increase conductivity to 6063 aluminium tower.– No fan means modern vehicles which have rigid dust covers or fully enclosed headlights bulbs can upgrade to LED without modifying the dust cap or worse leaving them off altogether.– Smaller driver footprint for tight applications.– Near identical footprint to standard halogen bulb ensure 100 compatibilities.– Top Bin Philips Lumileds Luxeon ZES LED | Weve independently verified the authenticity of the Philips Lumileds used. The undomed nature of the ZES provides better optical control with minimal scatter.– CCT 5700K means colours sync with our auxiliary LED driving lights.– OEM matching light distribution through the exact positioning of the LED emitters to optimize the vehicle’s reflector design as the OEM intended.– Instant Full Beam without any warm-up time.– CANBUS Friendly – resistive Canbus cancellation built-in– Unlike other platforms on the market, our Copper Heads LED Kit will not discolour or tarnish your vehicle’s headlamp reflector or lenses.– Electrically Protected again RFI and EM Interference– Over and Under Voltage Protection– Waterproof connectors– Plug and Play HB3 Connector | No cutting or professional installation required, as easy as changing the OEM bulb– Ingress Protection IP65 means our kits will not fail at the first sign of water.– True White 5700Kelvin
TECH SPECS
| HOUSING MATERIAL | 6063 Aviation Aluminium |
| LED CHIP TYPE | 6 x Philip ZES (Each Lamp) |
| POWER | 1.6A each @ 13.6v |
| RAW LUMENS |
3,450Lm each globe (RAW)1,760Lm each globe (Actual) |
| COMPATIBLE VOLTAGE | DC 12v and 24v |
| LUMEN MAINTENANCE | 50,000 hours |
| LIFE EXPECTANCY | 5,000 hours (9 x longer than halogen) |
| CANBUS | Built-in |
| SOCKET TYPE | HB3 (9005) |
| INGRESS PROTECTION | IP65 |
| OPERATING TEMP | -40c to + 80c |
