DETAILS

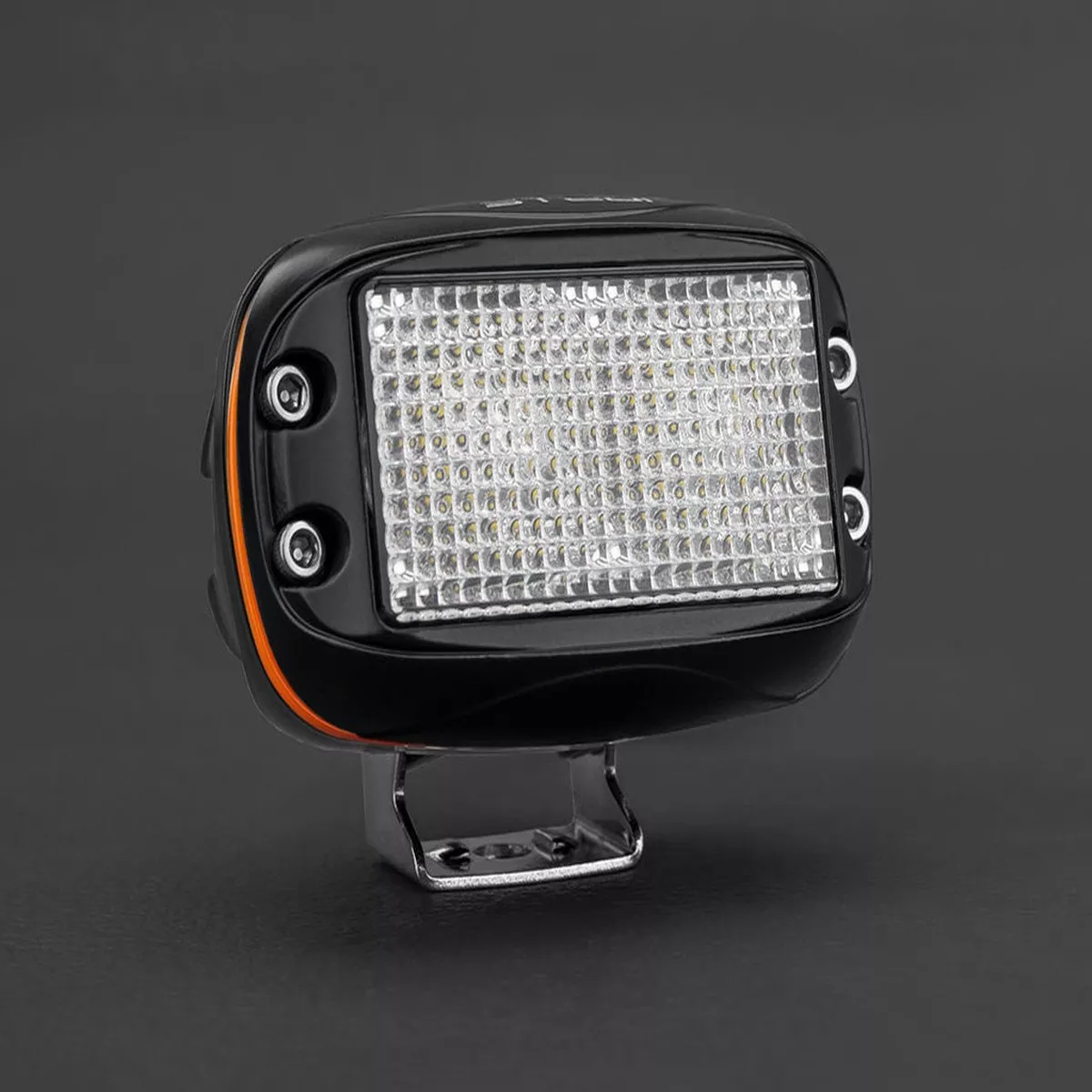

STEDI 10W Mini V2 LED Flood Light
Includes:1 x 10W Mini V2 LED Flood Light (5700K)2 x M6 Bolts1 x Nylock Nut + 1 x Standard Nut1 x Flat Washer + 1 x Lock WasherMale & Female Deutsch Connectors
TECH SPECS
| LED POWER | 10 Watts |
| OPERATING VOLTAGE | 12v & 24v Compatible |
| LED CHIPS | 5W x 2 Osram LED’s |
| COLOUR TEMPERATURE | 5700K |
| OPERATING TEMPERATURE | -40C to 60C |
| RAW LUMENS | 1,000Lm |
| CURRENT DRAW | 0.5A @ 13.8V |
| BEAM | Flood Beam |
| WATERPROOF | IP67 |
| DUSTPROOF & ANTI-VIBRATION | Yes |
| LENS | Optical PC |
| MOUNTING BRACKET | Stainless Steel |
| HOUSING MATERIAL | Cast Aluminum Housing |
| LIFE SPAN | 50,000+ Hrs |
| DIMENSIONS (W x H x D) | 77mm x 48mm x 55mm |
| CERTIFICATES | CE, RoHs & ECE |
| WEIGHT | 0.3kg |
MORE INFORMATION
The 10w Minis have a huge variety of applications and can be used from work/camping lights to bumper-mounted reverse lights. The 2 styles of 10w Mini are easily mounted via the U-Bracket or Flush Face Plate depending on the intended location of the light.If youve been trying to upgrade the dull, factory reverse lights, then these are the perfect option.
KEY FEATURES
Flood Optics for a wide 40 degree spread pattern12 Volt and 24v Compatible Waterproof Male & Female Deutsch connectors includedStainless Steel Fittings IP67 – Protected against immersion up to 1m in depth for no longer than 30 minutes at a time OSRAM GmbH Emitters
