Ridetech Rear Bolt-On 4-Link System for 1968-1974 Nova
The Ridetech Rear Bolt-On 4-Link System, MPN 11267197, replaces the rear leaf spring suspension on a 1968-1974 Chevrolet Nova, Chevy II, or Acadian, as well as the Apollo, Omega, and Ventura, with a double-adjustable 4-Link using patented R-Joint rod ends. The kit provides 1 to 3 inches of adjustable drop through a bolt-on cradle that mounts between the frame rails, with four small tabs welded to the axle for the upper bars. The system is compatible with mini-tubs. This part number is the double-adjustable version for 1968-1974 frames without the frame-rail bump. Some 1973-1974 X-body cars have a different frame rail shape and require a different kit. Coil-overs or ShockWaves are sold separately.
Key Features
- Rear bolt-on 4-Link system, double-adjustable upper and lower bars
- 1 to 3 inch adjustable drop
- Patented R-Joint rod ends
- Bolt-on cradle between frame rails, four small tabs welded to axle for upper bars
- Compatible with mini-tubs, part number 11267197
- Ships as system 11267197 with cradle, bars, and hardware
Fitment
| Vehicle Application | Position |
|---|---|
| 1968-1974 Chevrolet Nova / Chevy II / Acadian / Apollo / Omega / Ventura (frames without frame-rail bump) | Rear |
Specifications
| Detail | Value |
|---|---|
| MPN | 11267197 |
| Retailer SKU | RID11267197 |
| Drop Range | 1 to 3 in, adjustable |
| Rod Ends | Patented R-Joint |
| Mounting | Bolt-on cradle, welded axle tabs for upper bars |
| Mini-Tub Compatible | Yes |

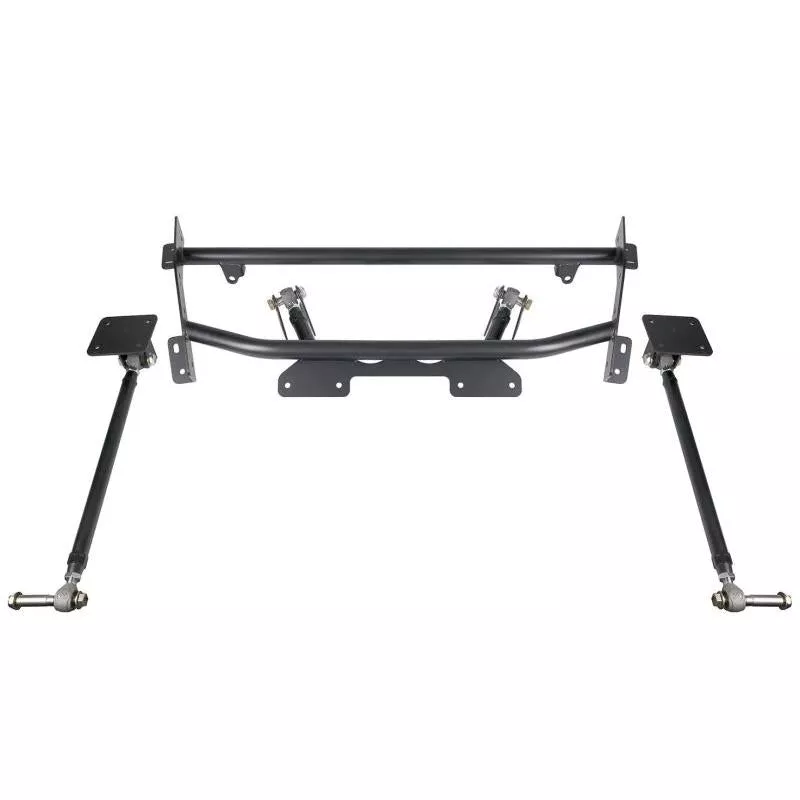

What’s Included
- 1 bolt-on frame cradle
- 2 double-adjustable upper 4-Link bars
- 2 double-adjustable lower 4-Link bars
- Axle mounting tabs
- Mounting hardware
About Ridetech
Ridetech engineers air suspension, coilovers, and chassis components in the USA and tests every system on real vehicles. System 11267197 is part of Ridetech’s Nova 4-Link suspension lineup.
Related Parts
- Ridetech Front HQ Series CoilOvers for 1968-1974 Nova
- Ridetech Front MuscleBar for 1968-1974 Nova
FAQ
Does this kit include coil-overs or shocks?
No. Coil-overs or ShockWaves are sold separately from this 4-Link system.
How much drop does this kit provide?
The kit provides 1 to 3 inches of adjustable drop.
Does every 1968-1974 Nova use this same kit?
Most do, but some 1973-1974 X-body cars have a different frame rail shape with a frame-rail bump and require a different kit number.
Does this kit require welding?
The frame cradle is bolt-on, but four small tabs must be welded to the axle for the upper bars.
Is this kit compatible with mini-tubs?
Yes. This 4-Link system is compatible with mini-tubbed rear wheel wells.
What rod ends does this kit use?
The kit uses Ridetech’s patented R-Joint rod ends on the double-adjustable bars.
Does this fit an Acadian or Ventura?
Yes. This kit fits the Nova platform shared by the Chevy II, Acadian, Apollo, Omega, and Ventura.
Are the upper and lower bars both adjustable?
Yes. Both the upper and lower 4-Link bars are double adjustable.
Installation Instructions
- Raise the rear of the vehicle and support the frame on jack stands
- Support the rear axle, then remove the wheels
- Remove the factory leaf springs and rear shocks
- Bolt the frame cradle between the frame rails
- Weld the four upper bar mounting tabs to the axle housing
- Install the double-adjustable upper and lower 4-Link bars
- Install coil-overs or ShockWaves, then torque all fasteners to the manufacturer’s specification
- Lower the vehicle and set ride height before driving
