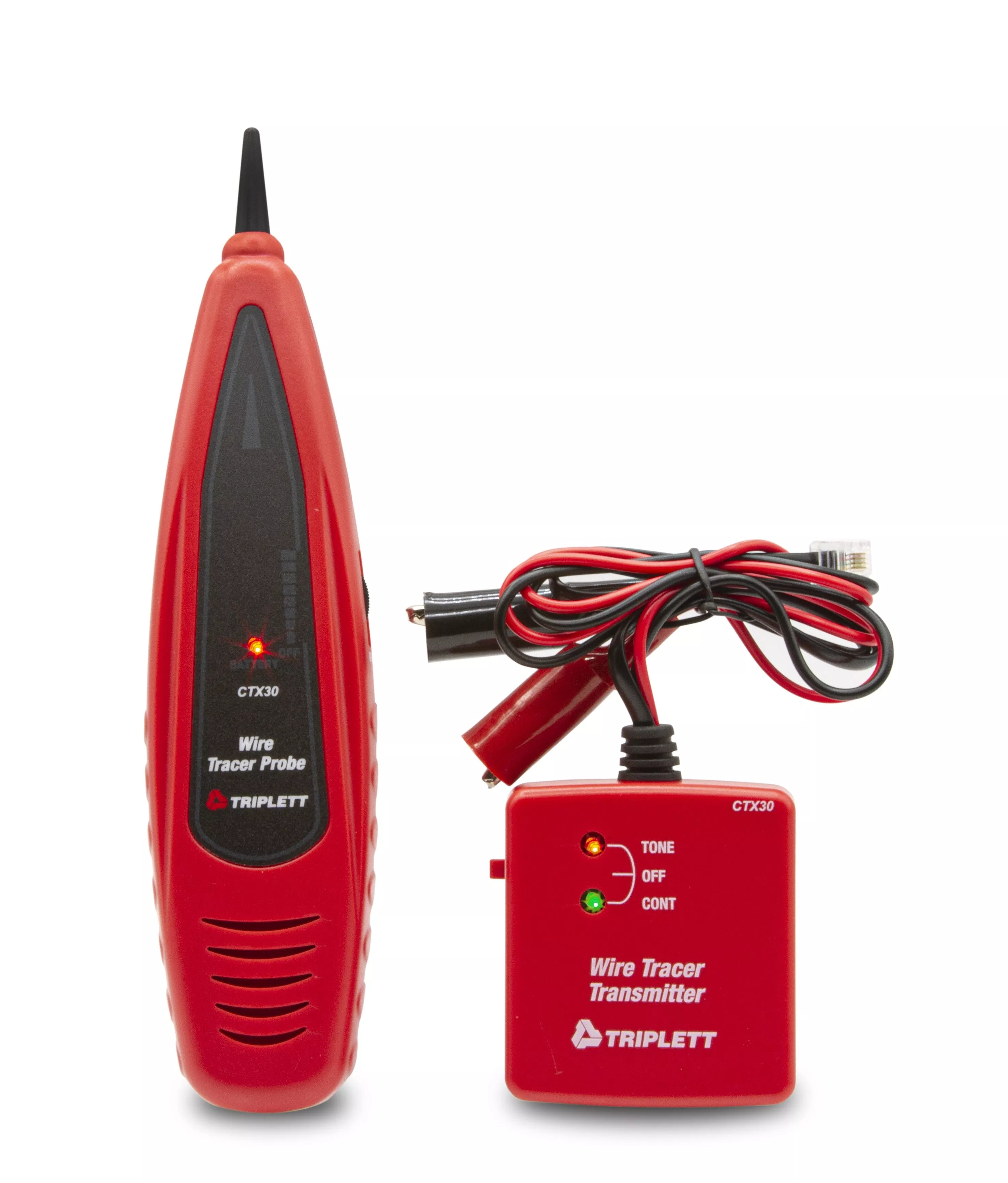

Quickly trace various types of unenergized cable including electrical wire, twisted pair, LAN, multi-conductor, telephone, alarm and others. It features insulated probe tip to prevent short circuits, adjustable sensitivity, audible and visual notification, and Tip/Ring/Continuity testing. Includes RJ11 and Alligator clip connectors.
CATEGORY: TONER PROBE KITS
Features
- Quickly trace wires and check phone lines
- Adjustable sensitivity
- Audible and visual notification
- Tip/Ring/Continuity testing
Product Overview
Triplett Solutions for Every Contractor
Cable/Wire Tracing
Quickly trace and locate various types of unenergized cable including electrical wire, twisted pair, LAN, multi-conductor, telephone, alarm and more. After the Toner is connected to the wire, use the Probe to trace the location of the wire. Audible warble sound will indicate wire location.
Continuity Testing
Use the CTX30 to confirm you’ve identified both ends of the wire being traced, and it’s not open.
- Insulated probe tip prevents short circuits
- Adjustable sensitivity
- Audible and visual notification
- Tip/Ring/Continuity testing
- RJ11 and Alligator Clip connectors
POTS Line Tip and Ring Testing
“POTS” refers to Plain Old Telephone Service, also known as Analog Telephone or Landline Telephone Service. For DID trunks, T-1 lines, PBX, and other special telephone circuits, it is important to connect the telephone circuit with proper tip and ring polarity. This tester will allow you to determine which connection is the Tip (T) line and which is the Ring (R) line. Tip is the Positive side, and Ring is the Negative side.
While the toner is designed to work with standard telephone ringing voltage (24 VAC), it is not intended to be used on any active AC circuits over 24V, nor is it designed to be used on any DC circuits exceeding 42 VDC.
| 3399 Fox & Hound Premium | 3388 Fox & Hound HotWire | 3375 Fox & Hound Jr | CTX690 | CTX590 ProTone | CTX30 | |
|---|---|---|---|---|---|---|
| Application | Traces various types of cable including electrical wire, twisted pair, LAN cable, multi-conductor cable, telephone cable, alarm cable and more | Traces wires from 0 ~ 250VAC, including 12, 24, 28, 120, 220, and 240VAC | Trace security, thermostat, data, telephone,audio and other types of wiring | Locate and trace cables on inactive or active networks, live or dead phone lines, as well as coaxial video cabling systems | Traces various types of cables including electrical wire, twisted pair, LAN cable, multi-conductor cable, telephone cable, alarm cable and more | Trace various types of unenergized cable including electrical wire, twisted pair, LAN, multi-conductor, telephone, alarm and more |
| Detect Trace Tones up to 12″ Away | ||||||
| Probe LEDs Light Up Dark Areas | ||||||
| Audible and Visual Notification | ||||||
| Built-in Earphone Jack | ||||||
| Adjustble Sensitivity | ||||||
| Connectivity | RJ11, RJ45 or Alligator Clips | Flat Blade, Pointed Probe or Alligator Clips | RJ11 or Alligator Clips | F-Type Connector, RJ11, RJ45 or Alligator Clips | RJ11, RJ45 or Alligator Clips | RJ11 or Alligator Clips |
Specifications
CTX30 Input Voltage/Current Max: 24VAC, 42VDC, 15A Resistance Max: 10k (for continuity testing) Power 9V Batteries for Toner and Probe (not included) Dimensions Toner: 2.63 x 2.75 x 1.12 (66.8 x 69.8 x 28.4mm) Probe: 8.5 x 2 x 1.4 (216 x 51 x 36mm) Weight Toner: 3.2oz (91g) Probe: 3.2oz (91g)
