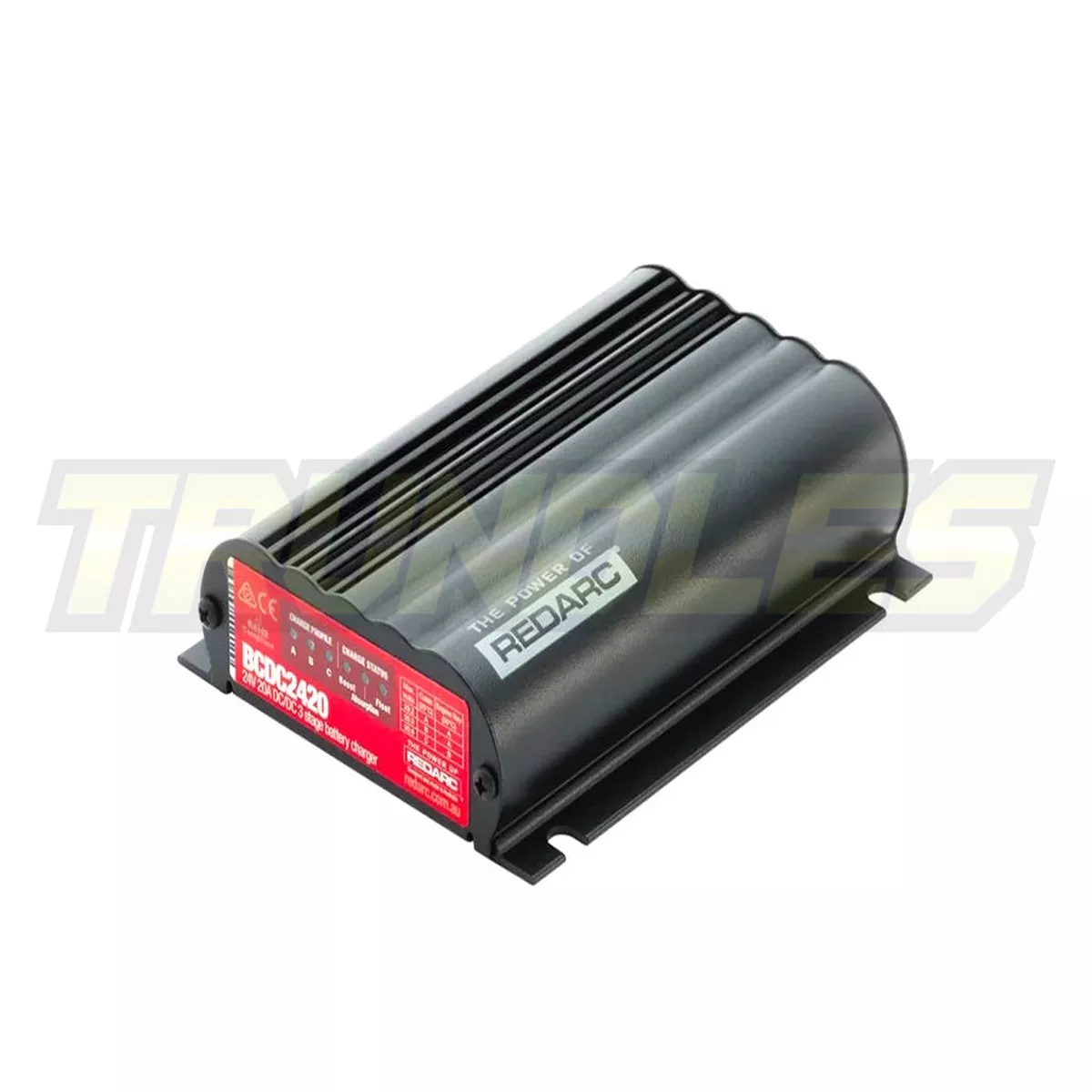

RedArc 24V 20A Low Voltage In-Vehicle DC Battery Charger
Includes:1x Low Voltage In-Vehicle DC Battery Charger – BCDC2420-LV
Details:The BCDC2420-LVis a 24 Volt 20 Amp low voltage In-vehicle DC Charger featuring technology designed to charge all major lead acid batteries to a proven 100%. Itssuitable for vehicles fitted with an ECU-controlled variable voltage alternator.
The REDARC BCDC2420-LV Low Voltage In-vehicle battery chargeris a three stage DC DC charger that operates from a vehicle input between 9 and 32 Volts DC. It is designed to chargeAGM, gel, VRLA and standard lead acid automotive 24V battery systems to an optimal level with chemistry specific battery charging algorithms.
The BCDC2420-LV features a multi-stage charging algorithm, with a 24V charging output the DC to DC charger is perfectly suited to trucking applications such as charging battery banks for tailgate lifters and side curtains.
The BCDC2420-LV features a MPPT Solar Regulator, which means12V solar panelscan be used to charge your 24V auxiliary batteries. The MPPT Solar charging algorithm extracts the maximum available power from your solar panels at any given time.
Features– Multi Stage DC to DC Battery Charger– MPPT Solar Regulator– Start Battery Isolator– Fully sealed– No fan for super quiet operation– Charges AGM, Gel, Calcium content, VRLA and Standard Lead Acid batteries
SpecificationsInput (Operating) Voltage: 9 – 32VDCMaximum Charging Voltage: 30.6VOutput System Voltage: 24VDCOutput Current Rating (Cont.): 20AOutput Power: 600WInput Fuse Rating: 50AOutput Fuse Rating: 30AWarranty: 2 YearsStandby Current Draw: <50mALength (mm): 150Width (mm): 120Height (mm): 37Weight (kg): 0.68Type Approval: E and CE
