SKU: 16-82-2260

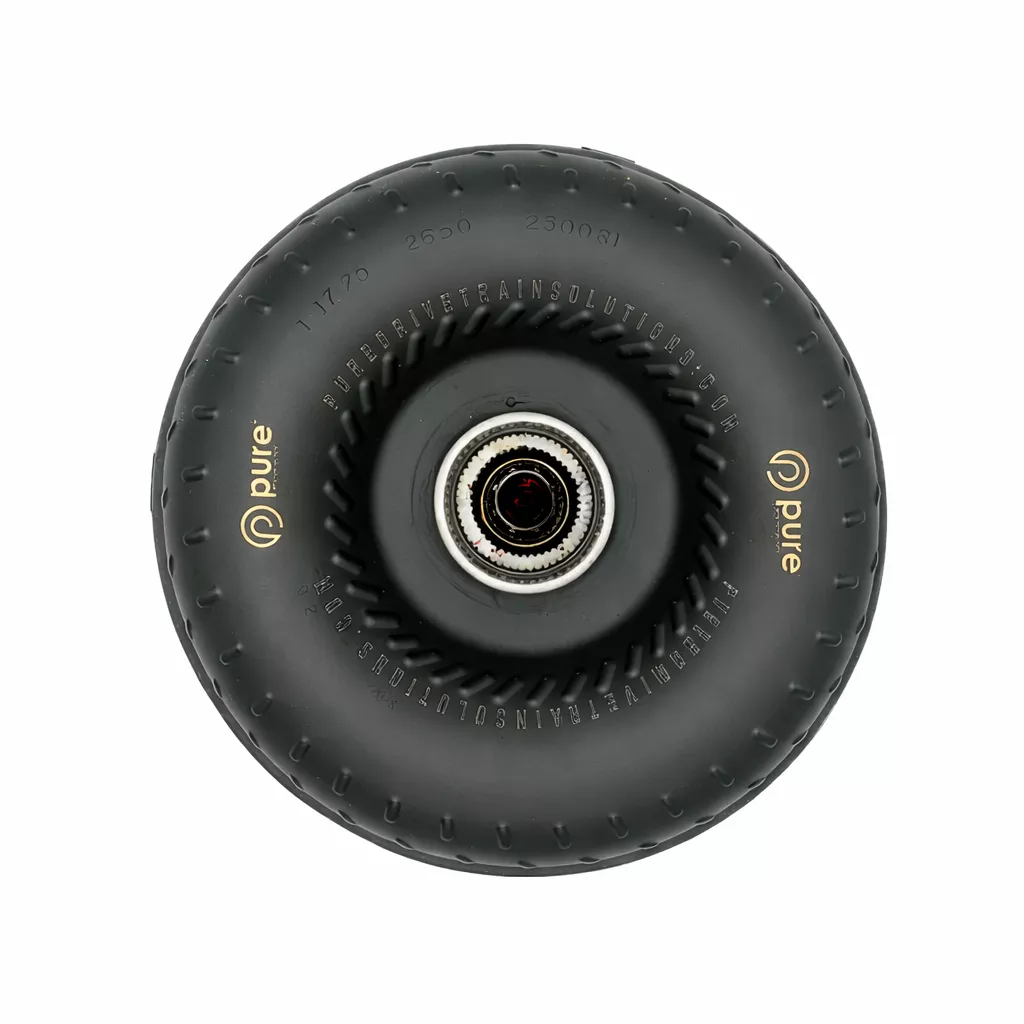

PDS 8HP95 High Performance Billet Race Torque Converter – 22/60 Stator – AWD Fits 2018-2023 Jeep Grand Cherokee Trackhawk Dodge Durango SRT Hellcat
This PDS torque converter upgrades ZF 8HP95 AWD transmissions in high-output Jeep and Dodge SUVs. Built for drag racing and street/strip use it delivers precise stall control and massive torque multiplication. The 22/60 stator targets 2500-3000 RPM stall for quicker launches in 1000+ HP applications.
Key Features
- Billet Front Cover: 6061-T6 aluminum construction withstands 1500+ HP without flexing for consistent performance
- 22/60 Stator: Custom pitch diameter design provides sharp stall breakover and efficient power transfer in AWD setups
- Billet Lockup Piston: Multi-disc clutch system enables full lockup at high RPM for straight-line speed without slippage
- Furnace Brazed Fins: TIG-welded impellers resist ballooning under extreme heat and pressure
- Precision Balanced: Computer-balanced assembly eliminates vibration for smooth operation and longer transmission life
Product Notes
- Designed exclusively for ZF 8HP95 AWD transmissions verify compatibility before purchase
- Break-in required run at 1500 RPM light throttle for 20 minutes before full power use
- Ships freight due to size contact for residential delivery options
Installation Notes
- Professional installation recommended.
- Transmission must be removed converter installs with OEM torque specs of 40 ft-lbs on flexplate bolts
- Compatible with stock or aftermarket flexplates no special hardware needed
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2018-2021 | Jeep | Grand Cherokee | Trackhawk |
| 2021-2023 | Dodge | Durango | SRT Hellcat |
Why Choose PDS?
- PDS builds championship-winning converters trusted in NHRA and drag radial classes
- Every unit hand-assembled with MPRL billet components for reliability under boost
- Engineered in the USA with dyno-tested stall speeds for real-world performance
Frequently Asked Questions
- Q: Will this fit my 2019 Jeep Grand Cherokee Trackhawk?
A: Yes direct fit for all 2018-2021 Trackhawk models with ZF 8HP95 AWD transmission no modifications required - Q: What materials are used in construction?
A: Billet 6061-T6 aluminum cover billet steel piston and furnace-brazed steel impellers for maximum durability - Q: What is the warranty and break-in process?
A: 1-year unlimited mileage warranty proper break-in extends life to race season full details included
Shipping & Handling
- Method: UPS Freight or LTL Carrier
- Availability: Special order ships in 5-7 business days
- Packaging: Securely boxed 24 x 24 x 12 inches
- Weight: 72 lbs
