SKU: 16-84-2655

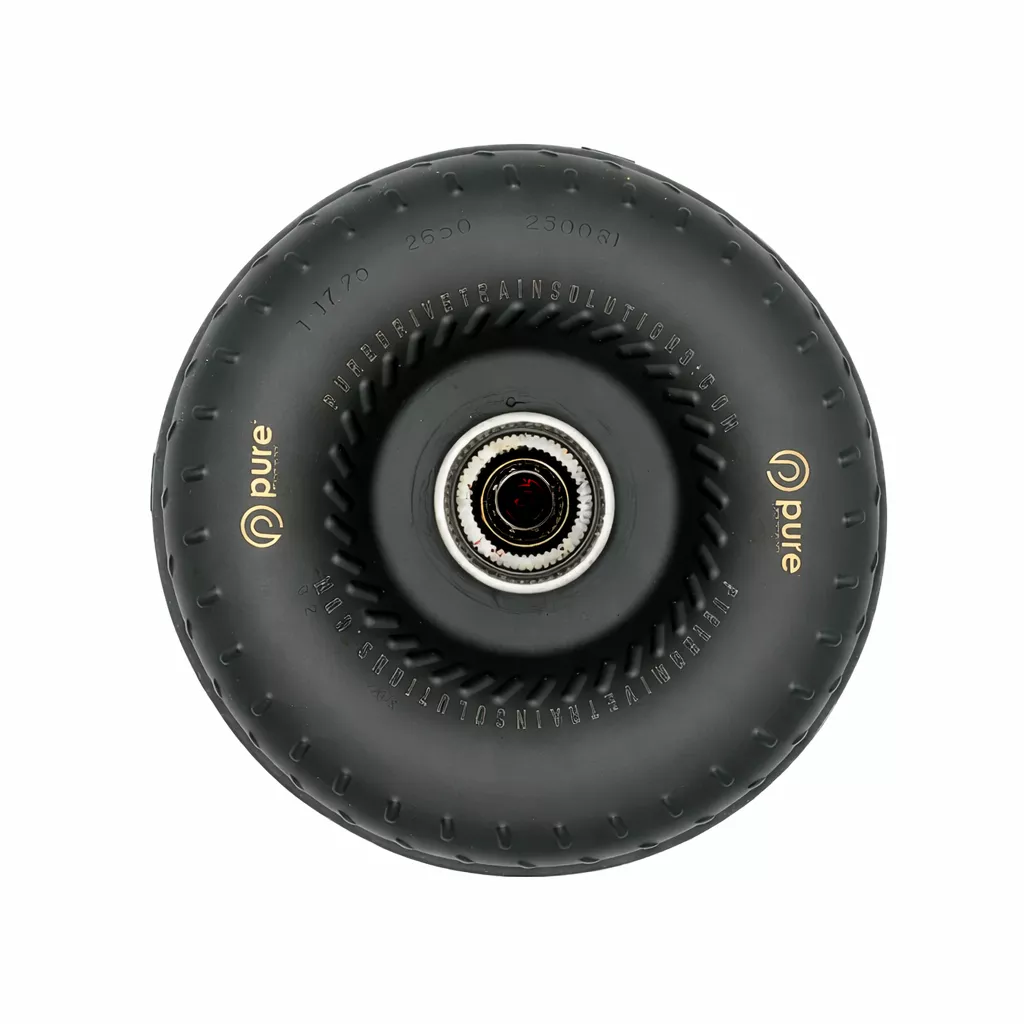

PDS 8HP90 High Performance Billet Race Torque Converter -26/55 Stator – RWD 2015-2023 Dodge SRT Hellcat Challenger Charger
The PDS 8HP90 High Performance Billet Race Torque Converter upgrades ZF 8HP90 RWD transmissions in 2015-2023 Dodge Challenger SRT Hellcat Redeye Demon Charger SRT Hellcat and Jeep Trackhawk. This billet unit delivers precise stall control from 2600-5500 RPM via the -26/55 stator for immediate power transfer in high horsepower drag applications. Engineered for reliability under 2000+ HP it replaces stock converters in demanding race builds.
Key Features
- Billet 7075 Aluminum Front Cover: Resists flex and heat for consistent performance during repeated hard launches
- Billet Steel Lockup Piston: Enables multi-clutch lockup for direct drive efficiency at high RPM without slippage
- -26/55 Custom Stator: Provides 2600-5500 RPM stall speed with aggressive angles for quicker turbo spool and supercharger boost buildup
- TIG Welded Impeller and Turbine: Full billet fins handle extreme torque without brazing failure common in stock units
- Computer Balanced Assembly: Ensures vibration-free operation with SFI 29.3 certification for safety in sanctioned racing
Product Notes
- Special order production allows custom balancing contact for lead times
- No core charge required simplifies purchase and return process
- Heavy duty design requires compatible high performance transmission cooler
Installation Notes
- Professional installation recommended.
- Transmission must be removed requires certified shop with ZF experience
- Direct bolt-in uses stock 27-spline input shaft and mounting hardware
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2015-2023 | Dodge | Challenger | SRT Hellcat Redeye Demon Super Stock |
| 2015-2023 | Dodge | Charger | SRT Hellcat Redeye |
| 2018-2021 | Jeep | Grand Cherokee | Trackhawk |
| 2018-2023 | BMW | M5 | F90 RWD |
| 2020-2023 | BMW | M8 | Competition RWD |
Why Choose PDS?
- Leaders in ZF 8HP torque converters with NHRA Pro Mod wins
- Hand-built in USA with aerospace grade materials
- Precision CNC machining guarantees exact tolerances for OEM fit
Frequently Asked Questions
- Q: Will this fit my 2019 Dodge Challenger Hellcat Redeye?
A: Yes direct replacement for factory ZF 8HP90 RWD no modifications needed - Q: What materials are used in construction?
A: 7075-T6 billet aluminum cover billet 4140 steel piston and TIG welded 6061 fins - Q: What warranty coverage applies?
A: Limited lifetime warranty against defects when installed by certified technician
Shipping & Handling
- Method: UPS Freight Ground
- Availability: Special order ships within 3-5 business days
- Packaging: Heavy duty double wall box 20x20x12 inches
- Weight: 48 lbs
