SKU: 16-84-2065

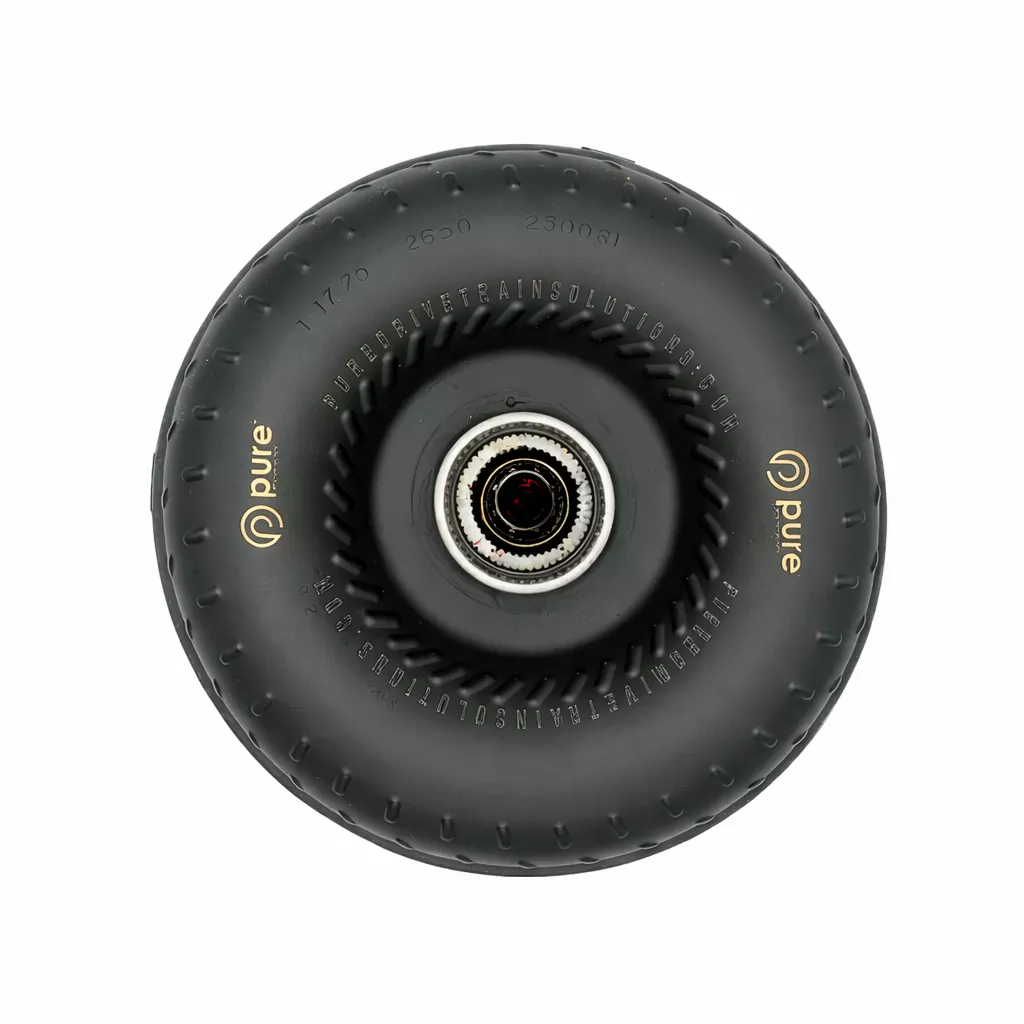

PDS 8HP90 High Performance Billet Race Torque Converter – 20/65 Stator – RWD for 2015+ Dodge Hellcat
Engineered for ZF 8HP90 transmissions in RWD high-horsepower vehicles, this PDS billet race torque converter delivers aggressive stall speeds and direct power transfer. It fits 2015+ Dodge Challenger SRT Hellcat, Charger SRT Hellcat, and Durango SRT Hellcat models. The 20/65 stator setup provides quicker et times and handles over 2000 HP in drag and circuit racing.
Key Features
- Billet Aluminum Front Cover: Resists flex and withstands extreme heat and pressure in high-HP builds for reliable shifts.
- 20/65 Stator Design: Multi-angle stator generates 4500-5500 RPM stall speeds for immediate throttle response and maximum torque multiplication.
- Furnace Brazed Fins: Impeller and turbine vanes endure high RPM abuse without delamination common in stock units.
- Precision Balanced Assembly: Rotates smoothly at 8000+ RPM to eliminate vibrations and extend transmission life.
- Upgraded Billet Lockup Piston: Engages firmly for road racing efficiency while surviving drag strip launches.
Product Notes
- Designed exclusively for racing and track use, pair with built 8HP90 valve body and clutches.
- Inspect pump and flexplate for wear prior to installation to prevent premature failure.
- Heavy item, secure packaging protects during transit.
Installation Notes
- Professional installation recommended.
- Torque converter bolts to 65 ft-lbs, verify spline count matches 8HP90 input shaft.
- Uses OEM mounting hardware and pump drive tangs for direct bolt-in fit.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2015-2023 | Dodge | Challenger | SRT Hellcat |
| 2015-2023 | Dodge | Charger | SRT Hellcat |
| 2021-2023 | Dodge | Durango | SRT Hellcat |
| 2017-2022 | Dodge | Challenger | SRT Hellcat Redeye |
| 2018-2022 | Dodge | Charger | SRT Hellcat Redeye |
Why Choose PDS?
- Specializes in ZF 8-speed converters proven in NHRA and NMRA competition.
- Made in USA with aerospace-grade materials for drag-ready strength.
- Custom-built to order with dyno testing for consistent stall and balance.
Frequently Asked Questions
- Q: Will this fit my 2018 Dodge Challenger Hellcat with stock 8HP90?
A: Yes, direct replacement for RWD ZF 8HP90 in 2015+ Hellcat models, no modifications needed to bellhousing or input shaft. - Q: What materials are used in construction?
A: Billet 6061-T6 aluminum cover, TIG-welded 4140 steel shells, and proprietary poly lockup lining for heat resistance up to 600 degrees. - Q: What warranty coverage applies?
A: 12-month unlimited mileage warranty against defects when installed by certified shop, excludes abuse or improper fluid.
Shipping & Handling
- Method: Ground freight
- Availability: In stock – ships same or next business day
- Packaging: Double-walled box 24x24x14 inches
- Weight: 65 lbs
