SKU: 16-85-2655

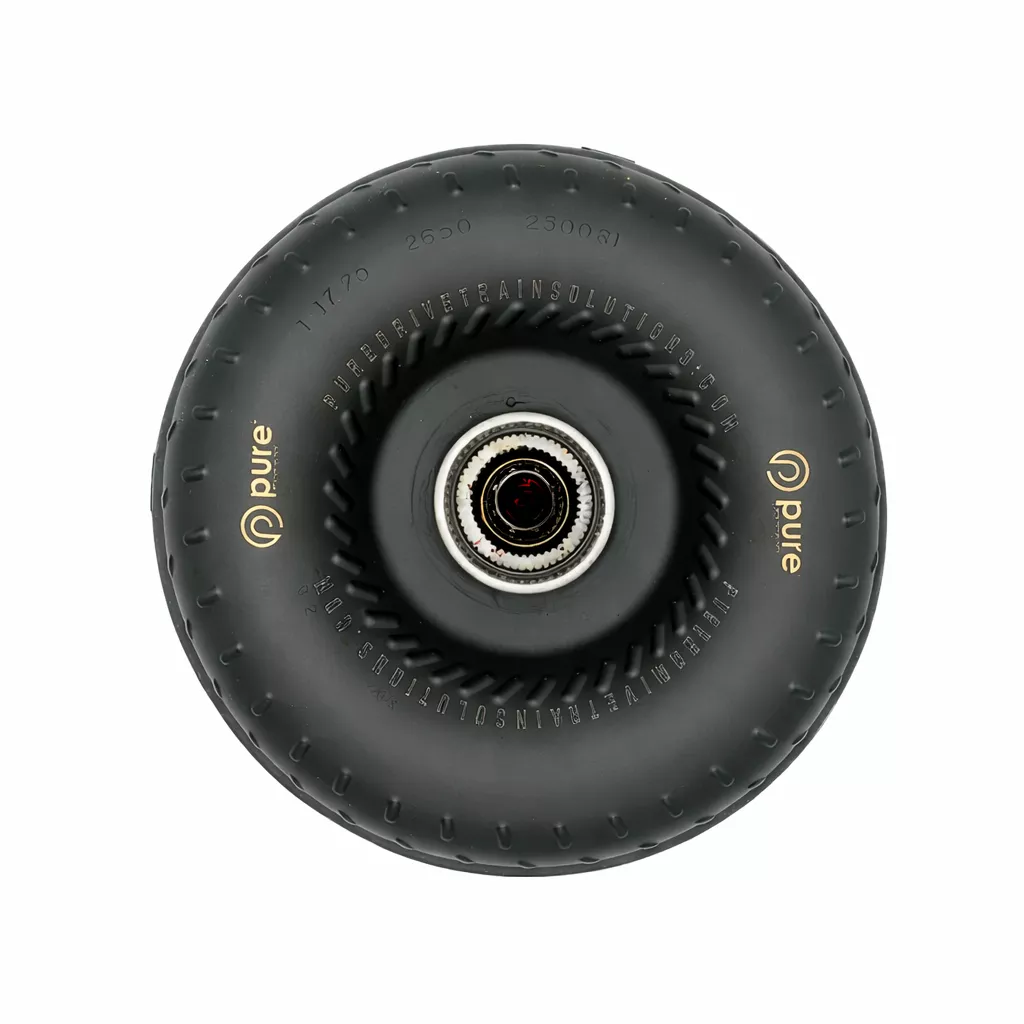

PDS 8HP76 High Performance Billet Race Torque Converter – 26/55 Stator – AWD for 2015-2024 BMW X5 M X6 M
Equip your ZF 8HP76 AWD transmission with the PDS billet race torque converter designed for BMW X5 M and X6 M models. The 26/55 stator delivers aggressive stall speeds from 2600 to 5500 RPM perfect for drag strip launches and track performance. This unit multiplies engine torque efficiently to put power to the wheels in high-horsepower AWD setups.
Key Features
- Billet 6061-T6 Aluminum Front Cover: Resists ballooning and flex under extreme pressure for consistent performance at high RPM.
- Billet Steel Lockup Piston: Provides firm clutch apply for immediate lockup and zero slip during shifts.
- Furnace Brazed Impeller and Turbine: Eliminates weak spot welds ensuring longevity under racing heat and stress.
- 26/55 Race Stator: Optimized for 2600-5500 RPM stall range enabling precise launch control and maximum low-end torque multiplication.
- Precision Balanced Assembly: Reduces vibration and harmonics for smooth operation and extended transmission life.
Product Notes
- For off-road and competition use only not intended for daily street driving.
- No core charge required simplifying purchase and return process.
- Special order item with typical lead time of 3-5 business days.
Installation Notes
- Professional installation recommended.
- Verify ZF 8HP76 AWD transmission identification before install.
- Torque converter bolts to 40 ft-lbs in crisscross pattern OEM hardware compatible.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2015-2018 | BMW | X5 | M (F85) |
| 2015-2019 | BMW | X6 | M (F86) |
| 2020-2024 | BMW | X5 | M Competition (F95) |
| 2020-2024 | BMW | X6 | M Competition (G06) |
| 2019-2022 | BMW | X7 | M50i |
Why Choose PDS?
- Proven reliability in NHRA and drag racing classes.
- Hand-built with aerospace-grade materials for power handling over 1000 HP.
- Engineered and balanced in-house for perfect OEM replacement fit.
Frequently Asked Questions
- Q: Will this fit my 2017 BMW X6 M with ZF 8HP76?
A: Yes it bolts directly to all 8HP76 AWD transmissions in listed BMW M models with no modifications. - Q: What materials are used in construction?
A: Features billet 6061-T6 aluminum cover billet steel piston and furnace brazed steel fins for maximum strength. - Q: What is the warranty and install process?
A: Backed by 1-year warranty on materials and workmanship professional install advised with full transmission disassembly.
Shipping & Handling
- Method: UPS Freight or Ground
- Availability: Special order ships within 3-5 business days
- Packaging: Double-wall cardboard box 24 x 24 x 14 inches
- Weight: 68 lbs
