SKU: 16-95-2645

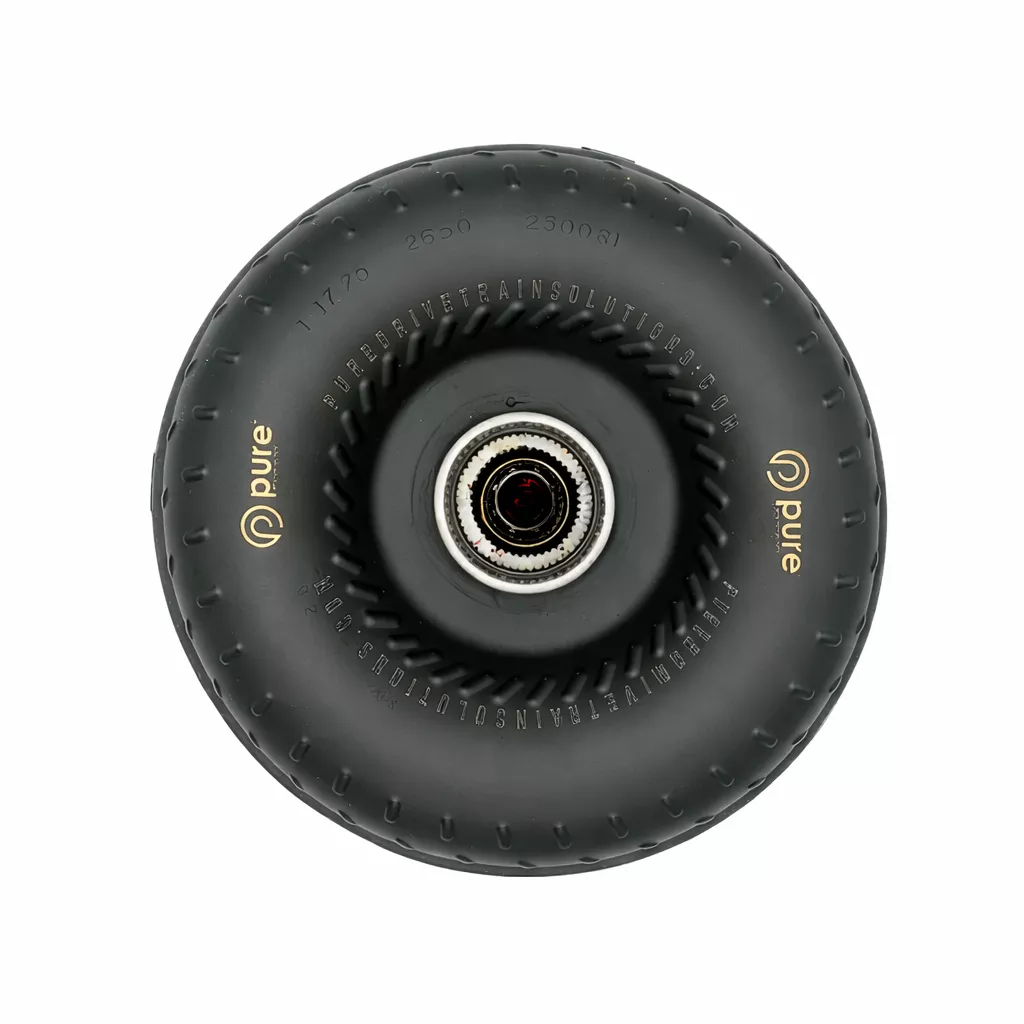

PDS 8HP51 High Performance Billet Race Torque Converter – 26/45 Stator – RWD 2015-2023 Dodge Challenger SRT Hellcat, Charger SRT Hellcat & More
Upgrade your ZF 8HP51 transmission with the PDS high performance billet race torque converter designed for RWD vehicles. Engineered for Dodge Hellcat models, Jeep Trackhawk and select BMW M series, this 26/45 stator unit delivers aggressive stall speeds from 2600 to 4500 RPM for quicker launches and better track performance. Built to withstand over 1500 horsepower in drag racing and street/strip applications.
Key Features
- Billet 6061-T6 Aluminum Front Cover: Resists flex and fatigue under extreme torque loads for reliable power transfer
- 26/45 Stator Design: Provides high stall range for instant throttle response and maximum torque multiplication off the line
- Furnace Brazed Impeller and Turbine: Eliminates weld separation and ballooning at high RPM for consistent performance
- Heavy Duty Needle Bearings: Reduces friction and supports high-speed operation in racing conditions
- TIG Welded Fins: Enhances fluid coupling efficiency and heat dissipation for cooler operation
Product Notes
- Direct replacement for stock torque converter in ZF 8HP51 transmissions
- Requires matching flexplate and pump access during install
- Ships via ground carrier due to size and weight
Installation Notes
- Professional installation recommended.
- Transmission must be removed for replacement. align pump stator correctly
- Uses stock 27-spline input shaft and mounting hardware
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2015-2023 | Dodge | Challenger | SRT Hellcat, Super Stock, Redeye |
| 2015-2023 | Dodge | Charger | SRT Hellcat, Redeye |
| 2021-2023 | Dodge | Durango | SRT Hellcat |
| 2018-2021 | Jeep | Grand Cherokee | Trackhawk |
| 2014-2023 | BMW | M5 | F10, F90, Competition |
| 2014-2017 | Land Rover | Range Rover Sport | SVR |
Why Choose PDS?
- Track-proven design used in NHRA and heads-up racing
- Machined in-house from aerospace-grade materials
- Dyno-tested for precise stall and lockup calibration
Frequently Asked Questions
- Q: Will this fit my 2018 Dodge Challenger Hellcat with 8HP transmission?
A: Yes, it bolts directly into all ZF 8HP51-equipped Hellcats from 2015-2023 with no modifications - Q: What materials are used in construction?
A: Billet 6061-T6 aluminum cover, 4340 steel hub, and furnace-brazed shells for maximum durability - Q: What is the warranty and install process?
A: 1-year unlimited mileage warranty. requires transmission removal and torque converter fluid prime before startup
Shipping & Handling
- Method: UPS Ground or FedEx Ground
- Availability: In stock – ships same or next business day
- Packaging: Double-wall cardboard box measuring 24 x 20 x 12 inches
- Weight: 62 lbs
