(65 psig Open, 56 psig Closed) Accessory Port (1)1/8in-18 NPT Inlet Port (1)1/4in-18 NPT Outlet Port (1)1/4in-18 NPT
- Part number: 802632
- OE MFG: HALDEX COMMERCIAL VEHICLE SYSTEMS
- OEM Reference: KN31000
- Cross Reference: BENDIX : 288323, 288323N; CATERPILLAR : 2G8815; GMC TRUCK : 2430717, 9019718; IHC : 503511C91; INGERSOLL : 51022598; KENWORTH : K295197; MACK : 20QE1326, 20QE2109, 20QE2286, 5396-KN31000, 745-285537; MERITOR : R955288323; VOLVO : 3107966; OTHER : 110257, 285537, C6TA2A435A, KN31000, N15759DC, S-C089 | AUTOMANN : 170.288323
- Product Class: Air Valves & Kits

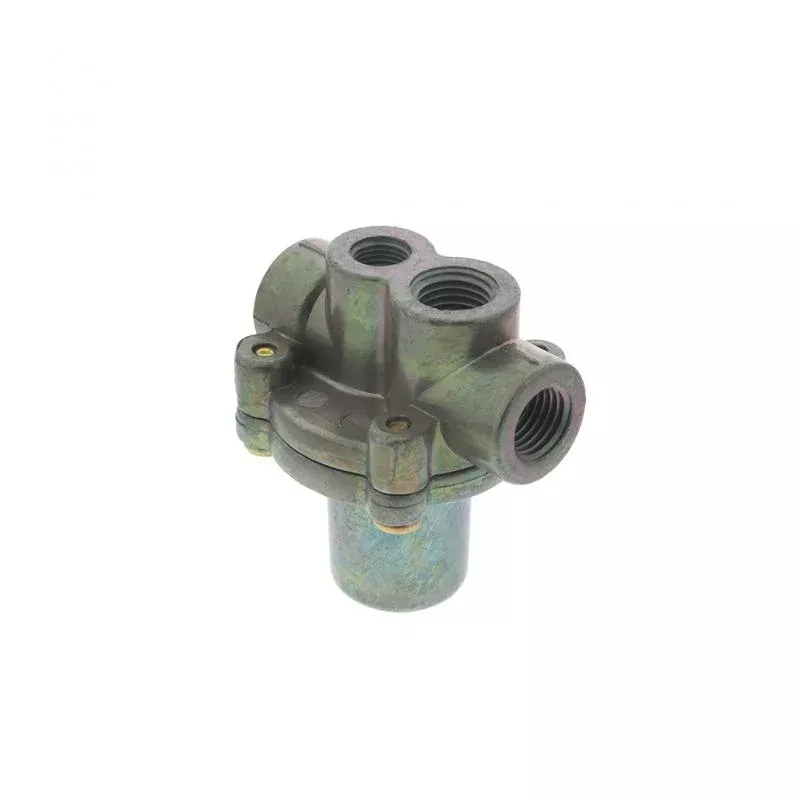

The PAI 802632 is a Haldex pressure protection valve with a 65 psig opening point and 56 psig closing point, plus one accessory port, a 1/8in-18 NPT inlet, and a 1/4in-18 NPT outlet. As heavy duty diesel truck parts, pressure protection valves regulate compressed-air distribution by opening at a specified pressure and closing to protect an air circuit when pressure falls. Haldex Commercial Vehicle Systems lists KN31000 as the OEM reference, and Bendix cross-references this valve to 288323 and 288323N.
