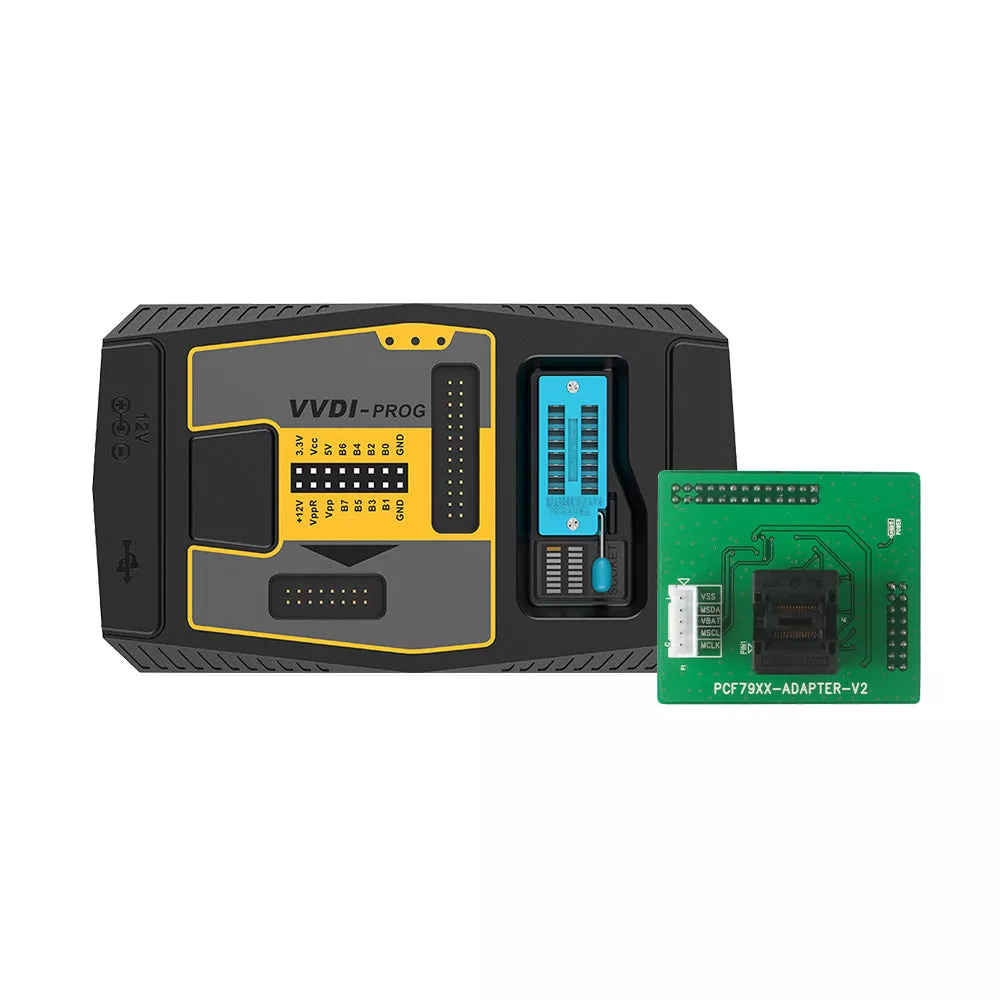

Original Xhorse VVDI PROG Programmer with PCF79XX Adapter
Highlights
- Purchase VVDI PROG programmer and get free BMW ISN reading function.
- Continuous chip updates for NEC, MPC, Infineon, and more.
- Multi-language support: English, Arabic, Czech, French, Italian, Polish, Portuguese, Russian, Spanish, Turkish, Simplified Chinese.
New Supported Options
- MCU Additions: MPC5632M, MPC5633M, MPC5634M
- MCU Additions: CR16MCS9V, CR16MCT9V
- MCU Additions: R7F701417, R7F701437, R7F701441, R7F701442, R7F701461, R7F701462
- Immobilizer: BUICK-REGAL-BCM (MC9S12XDP512)
- Airbag: S350 SRS (CR16MCT9VJE7)
Adapter Features
- 16-pin locking socket for secure chip connection
- Supports reading common EEPROM chips
- Note: Insert the chip following the provided diagram for correct operation
1.3.2MCUReflashCable
UsedtoprogramMCUonboard
1.3.3ECUReflash Cable
UsedtoprogramECU
1.3.4MC9S12ReflashCable
UsedtoprogramMC9S12serieschip
Supported chip list:
EEPROM
| Manufactures | Types | Support | Remark |
| ATMEL | AT24CXX | R | |
| AT25XXX | R | ||
| AT93CX6 | R | ||
| BOSCH | B3XX | R | |
| B4XX | R | ||
| B5XX | R | ||
| B58XXX | R | ||
| CATALYST | CAT24CXX | R | |
| CAT24WXX | R | ||
| CAT93CX6[A] | R | ||
| EXEL | XL[S]24CXX | R | |
| XL[S]93CX6 | R | ||
| FAIRCHILD | FM24CXX | R | |
| NM24CXX | R | ||
| NM93CX6 | R | ||
| GRUNDIG | GRXX | R | |
| HOLTEK | HT93CX6 | R | |
| MICROCHIP | 24AAXX | R | |
| 24[L]CXX | R | ||
| 93[L]CX6 | R | ||
| 93AAX6 | R | ||
| MITSUBISHI | M6M800X1 | R | |
| SEIKO | S-24CXX | R | |
| S-93CX6 | R | ||
| ST | D80/D160 | R | Can erase the first 32 bytes |
| M35080 | R | Can erase the first 32 bytes | |
| NEC | M24CXX | R | |
| ST | ST24CXX | R | |
| ST24EXX | R | ||
| ST24WXX | R | ||
| ST25CXX | R | ||
| ST25EXX | R | ||
| ST95P0X | R |
Note: R means the type is supported, means the type will be supported soon in the future
MCU
| Manufactures | Types | Support | Remark |
| MOTOROLA | MC9S12XEP | R | Can automatically determine D-FLASH/EEE space |
| MC9S12XA | R | ||
| MC9S12XB | R | ||
| MC9S12XD | R | ||
| MC9S12XDT | R | ||
| MC9S12XDP | R | ||
| MC9S12XDQ | R | ||
| MC9S12DG | R | ||
| MC9S12DT | R | ||
| MC9S12P | R | ||
| MC9S12H | R | ||
| MC9S12HY | |||
| MC9S12HA | |||
| MC9S12HZ | |||
| MC9S12XHZ | |||
| MC9S12B | |||
| MC9S12GC | |||
| MC9S12XS | |||
| MC9S12K | |||
| MC9S12Q | |||
| MC9S12C | |||
| MC9S12P | |||
| MC9HC(9)08 | |||
| ATMEL | ATTINY | ||
| ATMEGEA | |||
| NEC | uPD70F | ||
| ST | TMS370 |
Note: R means the type is supported means the type will be supported soon in the future.
ECU
| Manufactures | Types | Support | Remark |
| VAG | MED17.1-TC1796 | ||
| MED17.11-TC1796 | |||
| VAG MEG17.5-TC1766 | |||
| VAG MED17.5.1-TC1796 | |||
| VAG MED17.5.2-TC1767 | |||
| VAG MED17.5.5-TC1766 | |||
| VAG MED17.5.20-TC1766 | |||
| VAG EDC17 CP14/CP20-TC1796 | |||
| VAG EDC17 CP04-TC1796 | |||
| VAG EDC17 C46-TC1767 | |||
| VAG EDC17 CP24-TC1796 | |||
| VAG EDC17 CP44-TC1797 | |||
| VAG EDC17 U01-TC1766 | |||
| VAG EDC17 U05-TC1796 | |||
| VAG/Porsche Siemens Continental SDI 3-
TC1796 |
|||
| BMW | MEVD172(N55) | R | |
| MEVD172P(N20) | R | ||
| MEVD172G(N55) | R | ||
| MEVD172S(N55) | R | ||
| MEVD1724(N20) | R | ||
| MEVD1725(N13) | R | ||
| MEVD1726(N55) | R | ||
| MEVD1729(N20) | R | ||
| MEVD1728(N63/S63) | R |
Note: R means the type is supported means the type will be supported soon in the future.
Package List:
| Parts | Number | Remark |
| Programmer multiplexer | 1 | |
| Square USB cable | 1 | |
| SOP16 test socket | 1 | |
| 16pin converter | 1 | Support SOP/SOT/SSOP |
| MCU reflash cable | 1 | |
| ECU reflash cable | 1 | |
| MC9S12 reflash cable | 1 | Used to program MC9S12 series chip |
| 12V3A power adapter | 1 | High quality power supply |
| PCF79XX-Adapter | 1 |
