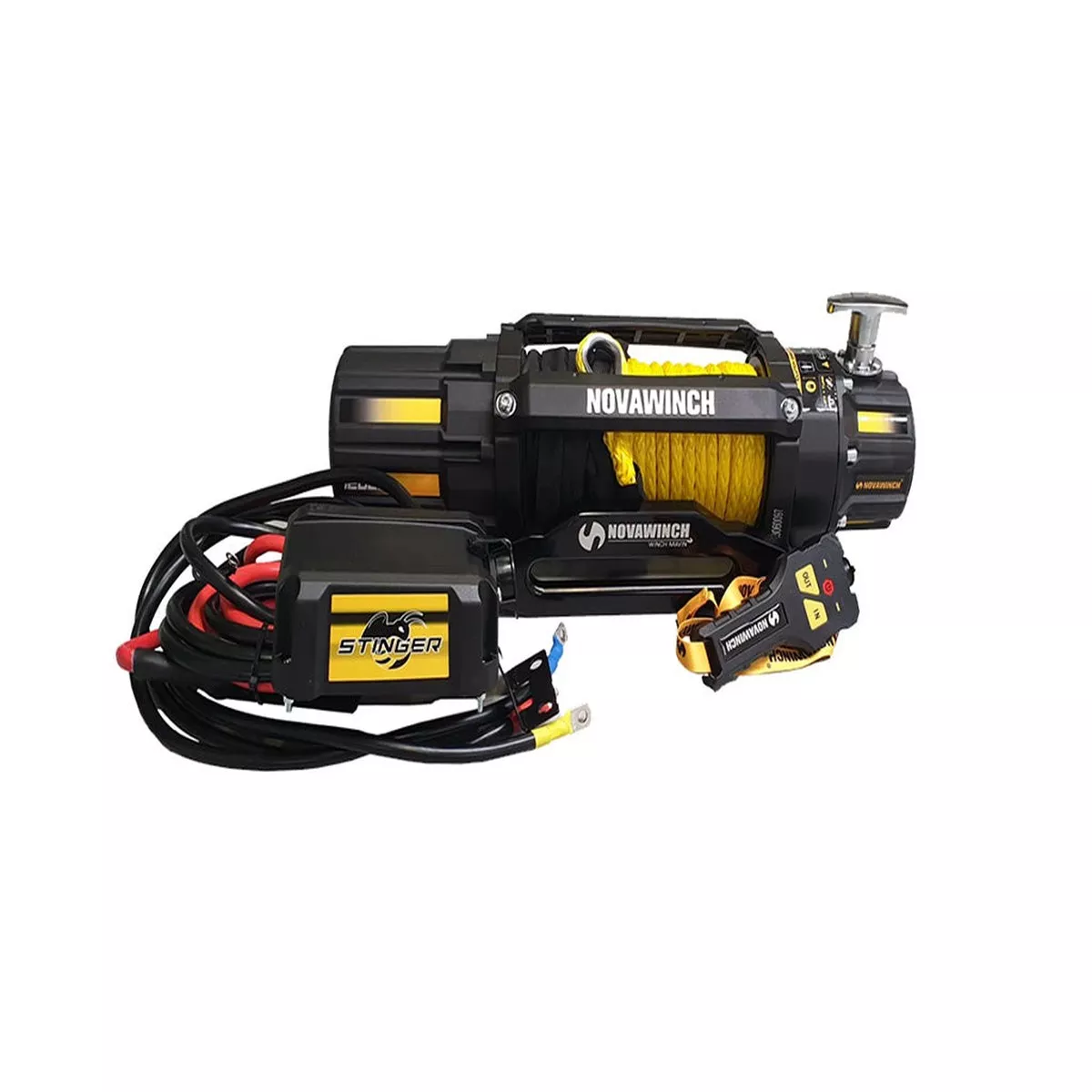

Novawinch Stinger+ 12,000lb Electric Winch with Wireless Remote
12V WINCH
Includes:– 12-volt foot-down Stinger+ electric winch (free spool T bar can be rotated)– DUO Wireless/Wired controller with integrated receiver– Fairlead– Synthetic rope– Winch hook– Solenoid enclosure with wiring to suit mounting to the winch tie bars– Ancillary – Solenoid enclosure remote mounting bracket kit – includes solenoid enclosure remote mounting bracket and 800mm long remote mount power leads
Details:– A new standard in 4WD and general purpose winches, the Novawinch is great value for money.– Free spool handle can be rotated to suit mounting. – Longer, 740mm long solenoid control box lead allows greater installation versatility.– Solenoid enclosure can be remote-mounted or mounted to the winch tie bars.– High Torque Motor – Thicker copper windings deliver more power with ease and cool faster. Ultra-heavy-duty silver contacts keep the Novawinch contactor running at lower temperatures.– Drive – Large-diameter splined drum to maximise power-transfer.– Novawinch dual function wireless/wired controller offers remote push-button control of winch operation.– Winch Rope – High-visibility rope makes rigging safer in low-light operations.– Weatherproofing – The IP68-rated seals keep out water, mud, sand and dust.– For more tech specs please click HERE
Specifications:Rated line pull: 12000lbs (5448kg) single line.Motor(Series wound): 12V DC with 5.3hp/3.95kW, 24V DC with 7hp/5.4kW.Gear train: 3 stage gear-driven.Gear ratio: 196:1.Clutch: Pull and turn.Braking action: Mechanical, Automatic load holding.Rope: 9mm26 meters.Drum size:2.48″8.8″(63mm224mm)Dimensions: 548mm158mm270mm (21.57″6.2″10.63″).Bolt pattern: 254mm114.3mm (10″4.5″).
24V WINCH
Includes:– 24-volt foot-down Stinger+ electric winch (free spool T bar can be rotated)– DUO Wireless/Wired controller with integrated receiver– Fairlead– Synthetic rope– Winch hook– Solenoid enclosure with wiring to suit mounting to the winch tie bars– Ancillary – Solenoid enclosure remote mounting bracket kit – includes solenoid enclosure remote mounting bracket and 740mm long remote mount power leads– Mounting hardware
Details:– A new standard in 4WD and general purpose winches, the Novawinch is great value for money.– Free spool handle can be rotated to suit mounting. – Longer, 800mm long solenoid control box lead allows greater installation versatility.– Solenoid enclosure can be remote-mounted or mounted to the winch tie bars.– High Torque Motor – Thicker copper windings deliver more power with ease and cool faster. Ultra-heavy-duty silver contacts keep the Novawinch contactor running at lower temperatures.– Drive – Large-diameter splined drum to maximise power-transfer.– Novawinch dual function wireless/wired controller offers remote push-button control of winch operation.– Winch Rope – High-visibility rope makes rigging safer in low-light operations.– Weatherproofing – The IP68-rated seals keep out water, mud, sand and dust.– For more tech specs please click HERE
Specifications:Rated line pull: 12000lbs (5448kg) single line.Motor(Series wound): 12V DC with 5.3hp/3.95kW, 24V DC with 7hp/5.4kW.Gear train: 3 stage gear-driven.Gear ratio: 196:1.Clutch: Pull and turn.Braking action: Mechanical, Automatic load holding.Rope: 9mm26 meters.Drum size:2.48″8.8″(63mm224mm)Dimensions: 548mm158mm270mm (21.57″6.2″10.63″).Bolt pattern: 254mm114.3mm (10″4.5″).
