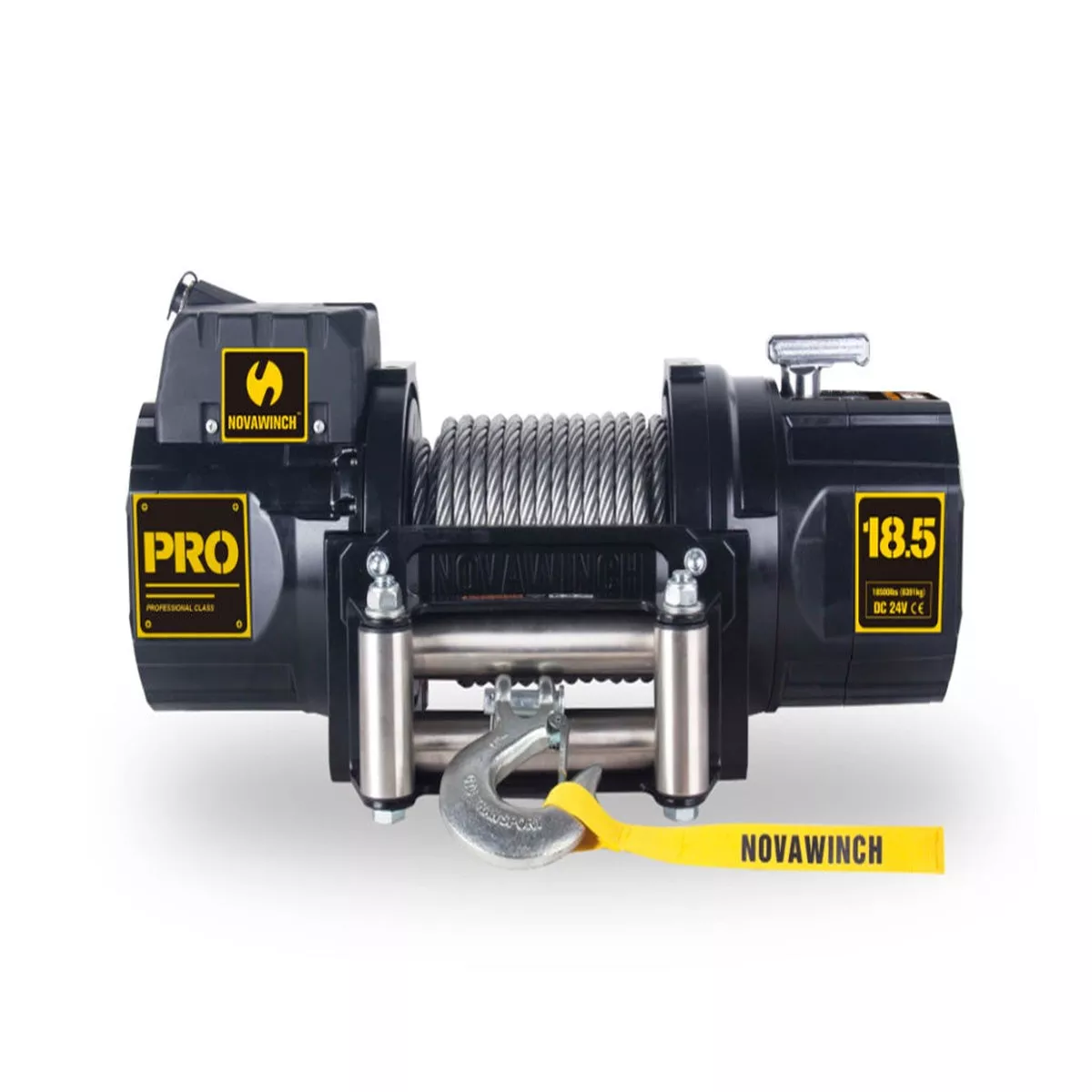

Novawinch PRO18500 24V
Includes:1x Novawinch PRO18500 24V -PRO18500-24
Details:– Works for up to eight times longer than traditional electric winches (4 minutes continuous usage when winching under full load) this exceeds all military specifications for this type of winch.– 24V stable performance, making PRO18500 ideal for commercial vehicle use.– Super low working current (280 amps), avoiding short circuiting during operation.– Large drum diameter which reduces rope wear.– High torque and durable motor.– Innovative double lock brake design provides zero drag on cable.– Weather resistant, unbreakable handheld switch made from industrial grade rubber.– Universal wireless remote switch (optional extra)
SPECIFICATIONS:
Rated line pull:18500lbs (8391kgs) single lineMotor(Series wound):DC 24V: 8.6hp/6.5kWGear train:4 stage planetary gearGear ratio:505:1Clutch:Pull and turnBraking action:Automatic in the ratchet wheelFairlead:4-way roller fairleadWire rope:1/2 x 85.3 (13mm x 25m)Drum size:3.468.66(88mmx220mm)Dimensions:27. 76x 10.5x 12.5(705mm266mm318mm)Bolt pattern:10 x4.5(254mmx114.3mm)10×6.5(254mmx165.1 mm)Net Weight(with wire rope):181bs(82kgs)
