Novawinch Pro+ 12500LB Electric Winch
Note: Please use the Drop-Down menu to select from 12V & 24V options and also High Mount & Low Mount Options
The Novawinch Pro Plus 12500 is a premium 12V/24V electric winch built for serious 4WD applications. Delivering 12,500lb of pulling power and a rapid 15m/min line speed, it features a double-lock brake system, low-resistance free spool, and a reinforced welded drum. Proven performance, rugged reliability, and unbeatable valuebacked by an industry-leading warranty from a globally trusted manufacturer.
FOOT DOWN MODEL

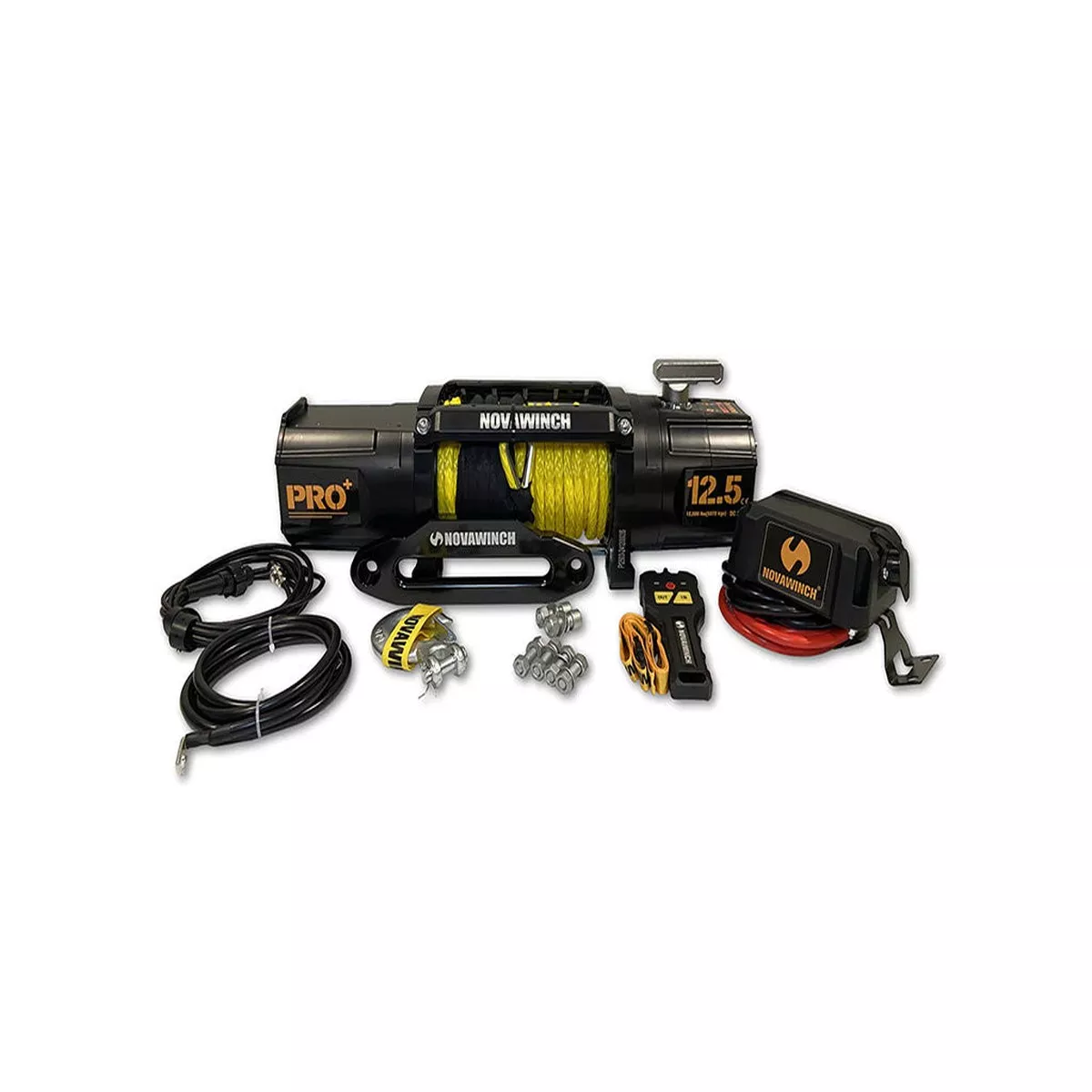

Includes:– 24v or 12v foot down winch– Fairlead– Synthetic rope– Winch hook– Waterproof rubber remote, 3.9m cord
Details:– High-capacity drum26m x 9.5mm synthetic rope– Limited lifetime warranty (3 years electrical)– Larger drum housings for easy cable management– Separate solenoid enclosure for easy mounting– Built-in wireless remote option for easy operation– IP68 rated water protection
Tech Specs:– Rated line pull: 12500lbs (5670kg) single line– Motor(Series wound): DC 12V:6.4hp/4.7kW / DC 24V:7.5hp/5.7kW– Gear train: 2 stage spur, 2 stage planetary, 171:1 ratio– Clutch: Rotating ring gear, 90 degree turn lever– Braking action: Automatic in gearbox– Fairlead: 4-way roller fairlead/Aluminium hawse– Drum size: 63mm222mm– Dimensions: 608mm L x 180mm W x 238mm H– Bolt pattern: 254mm x 114mm– Net Weight: 45.5kg– Solenoid enclosure to motor wiresapprox 500mm length
FOOT FORWARD MODEL
Includes:– 24v or 12v foot forward winch– Fairlead– Synthetic rope– Winch hook– Waterproof rubber remote, 3.9m cord
Details:– High-capacity drum26m x 9.5mm synthetic rope– Limited lifetime warranty (3 years electrical)– Larger drum housings for easy cable management– Separate solenoid enclosure for easy mounting– Built-in wireless remote option for easy operation– IP68 rated water protection
Tech Specs:– Rated line pull: 12500lbs (5670kg) single line– Motor(Series wound): DC 12V:6.4hp/4.7kW / DC 24V:7.5hp/5.7kW– Gear train: 2 stage spur, 2 stage planetary, 171:1 ratio– Clutch: Rotating ring gear, 90 degree turn lever– Braking action: Automatic in gearbox– Fairlead: 4-way roller fairlead/Aluminium hawse– Drum size: 63mm222mm– Dimensions: 608mm L x 180mm W x 238mm H– Bolt pattern: 254mm x 114mm– Net Weight: 45.5kg– Solenoid enclosure to motor wires approx 500mm length
