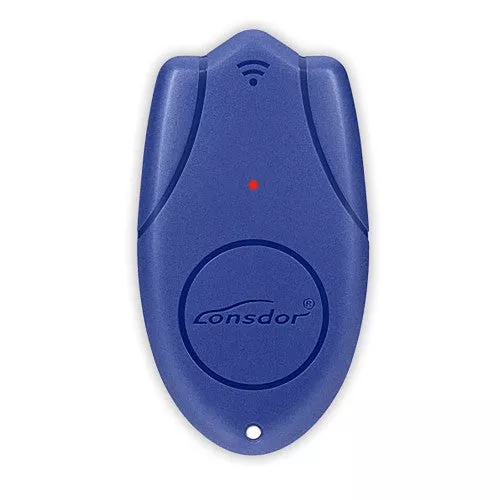

Lonsdor LKE Smart Key Emulator 5 in 1for Lonsdor K518ISE Key Programmer supports functions such as collect data(sent from automobile ignition coil) to detect the coil fault and decode car keys
Lonsdor LKE Car Key Emulator Highlights:
1. Simulate key chip 4D and 46
2. Collect data
3. Detect ignition coil fault and chip type
4. It can be upgraded through K518.
5.Battery:standard CR2032
6. Dismantle-free
7. No need networking
8. Localized computing
Lonsdor LKE Car Key Emulator Descriptions
1. LKE is a car key emulator newly released by Shenzhen Lonsdor Technology co.,ltd, as an ancillary product for K518 device.
2. It supports functions such as collect data(sent from automobile ignition coil) to detect the coil fault and decode car keys; simulate key chip(4D and 46 chip are supported currently, more chip types to be continued). Its lightweight and convenient, and can match all the vehicle models with 4D or 46 chip by working with K518.
3. Meanwhile, LKE adopts low-power design, and has CR2032 button battery installed externally, which is easy to replace batteries and can avoid damage to casing.
Lonsdor LKE Car Key Emulator functions
(1)Simulate key chip
Boot K518 device, place LKE into K518 card slot, go to “Special function” in the menu interface and choose “Analog chip->Generate analog chip” to generate 46 and 4D chip, then you can generate various car key chip according to demand, for example, 46 chip can be used to generate key chip for vehicle models like Great wall motor, Zotye auto, Geely and etc; 4D chip can be used to generate key chip for Toyota, Lexus, Subaru and etc.
(2) Collect data
This function is currently used to collect data to decode chip, and can copy original car chip data after chip is decoded. Boot K518 device, place LKE into the card slot, go to “Special function” in the menu interface and choose “Decode chip”, you can decode different types of chip.
(3) Detect ignition coil fault and chip type
Boot K518 device, place LKE into the card slot, go to “Special function” in the menu interface and choose “Ignition coil->Detect ignition coil ” to detect whether the coil is normal and identify chip type.
(4) Upgrade functions
Boot K518 device, place LKE into the card slot, in the interface of “Special function”, click function icon, the system will notify whether to update, click OK to upgrade online directly.
Cars Coverage List for Immobilization:
Europe: For A-udi, BM-W, Ben-z, V-W, Volvo, Citroen, Ferrari, Maserati, Fiat, Lamborghini, Jaguar, MG, Land Rover, Bentley, Lancia, Opel, Peugeot, Porsche, DS, Renault, Alfa Romeo, Smart, Borgward
America: ForCadillac, Chevrolet, Dodge, GMC, Buick, Hummer, Ford, JEEP, Lincoln, Mercury
Asia: ForHonda, Hyundai, Isuzu, KIA, Lexus, Mazda, Mitsubishi, Nissan, Ssangyong, Subaru, Suzuki, Toyota, Shigaoka Queen
China: ForIveco, Trumpchi, BYD, Geely, Chery, Great Wall, Young Lotus (Basically all Chinese carmodels are included)
Note:
1. Lonsdor provides quality after-sales service and agreed within the scope of warranty.
2. The warranty period will last 12 months from the activation date.
3. For any device problem, please first ask your agent for a solution, also you can send problem description in detailsto [email protected] for direct help from Lonsdor in an emergency situation.
4. In case of device fault or damage, which need to be sent back for repair or replacement, please contact your agentto deal with it.
5. Lonsdor will not handle any device replacement with end user directly.
Instructions for use
Boot K518 device, click “Special function” icon and choose corresponding functions (such as Identify chip, Analog chip, Decode chip, Ignition coil) and operate as per system prompts.
When it starts to work, signal light will go on; when at work, the light will flash; when finish work, the light will go out after 3 secs.
Lonsdor LKE Car Key Emulator Specifications
(1) Device size: 68mmX37mmX11mm
(2) Battery: CR2032
(3) Standby current: 3.5ua
(4) Working current: 4ma
LKE Emulator Key Top Features:
1. Features of Toyota/Lexus smart key all lost(5 emulators-in-1)
Dismantle-free
Noneednetworking Localizedcomputing
2. Generatechip
LKEcanbeusedtoworkasanemergencykeytoprogramwhennodedicatedchip.
3.Copychip
Bycollectingdatatodecodeandcopychip,LKEcurrentlysupportssome46and4Dchipcopy.
4.Simulateandconvertchip
Use[Generatechip]tomakevariouschips,partof4D/46andSKEToyotacurrentlysupported
5.Decodechip
Decode46and4DchipstoobtainSK.
6.Identifyignitioncoilandkeychiptype(allkeylost)
7.AsK518helper:
AchieveprogrammingkeywithoutPINforHyundaiandKia.
AchieveprogrammingkeywithoutPINforBYD.
AchieveprogrammingkeywithoutPINforPorscheCayman(2005-2010)andboxster.
Package includes:
1pc xLKE car key emulator
