Ko-ken NV14400-21 1/2 Sq. Dr. Socket 21mm 6 point 54mm Sleeve Drive
The deepened drive end of the KO-KEN Sleeve-Drive tools prevents the sometimes “wobbly” connection between pulse tool – extension – socket. An O-ring inside Sleeve-Drive optimizes the perfect fit of extension bars and sockets on the anvil to the effect, that the exactness of the required torque given by the pulse tool is generally improved. Further, the Sleeve-Drive avoids the direct transmission of vibrations on the pulse tool and finally on the operator.
Product Specifications
- Drive Shape: Square
- Input Drive Size: 1/2″
- Length: 54mm
- Opening: 6 Point
- Output Size: 21mm
- Sleeve Drive: Yes
- Type: 6 Point Sleeve Drive Socket

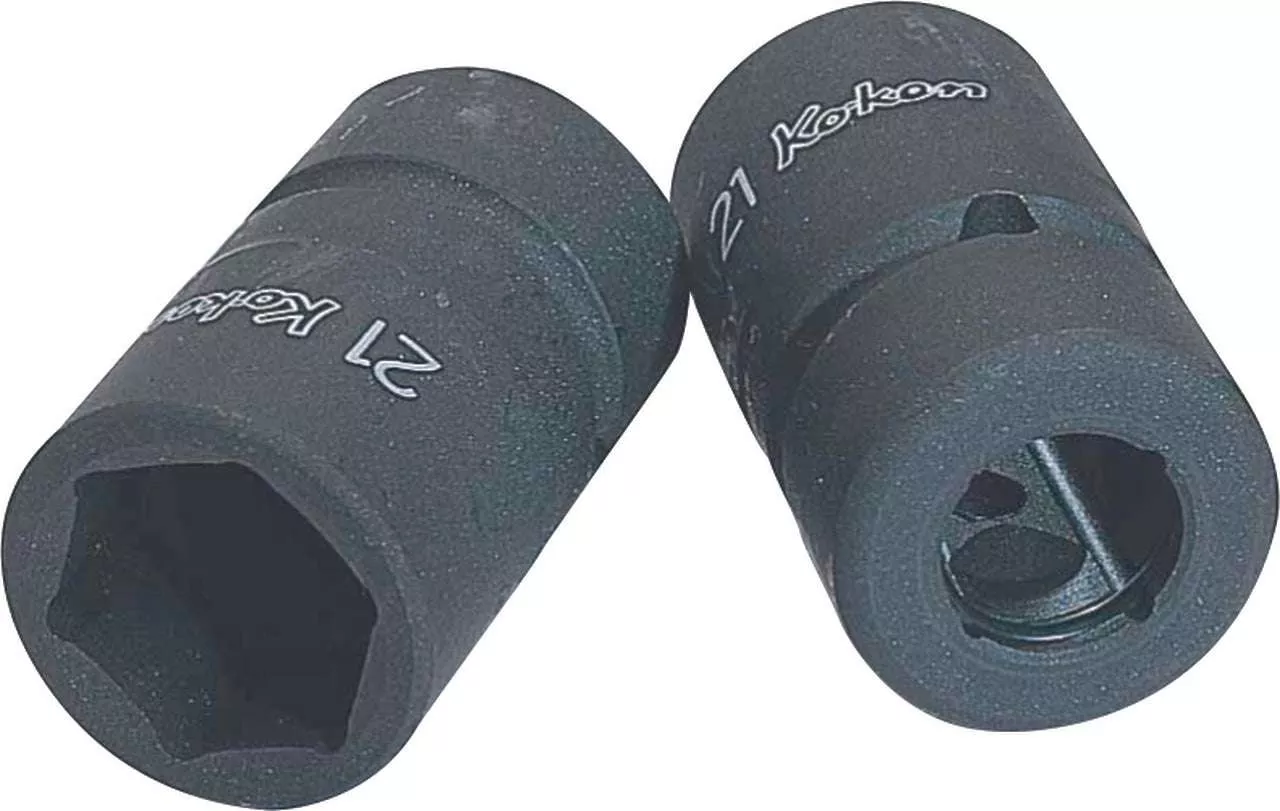

- Note: Sold individually only (not in pairs). Photo shows input and output ends.
- Product Dimension (Refer Line Drawing Image):
- D1 Size: 30.7mm
- D2 Size: 30mm
- H Size: 12mm
- L Size: 54mm
