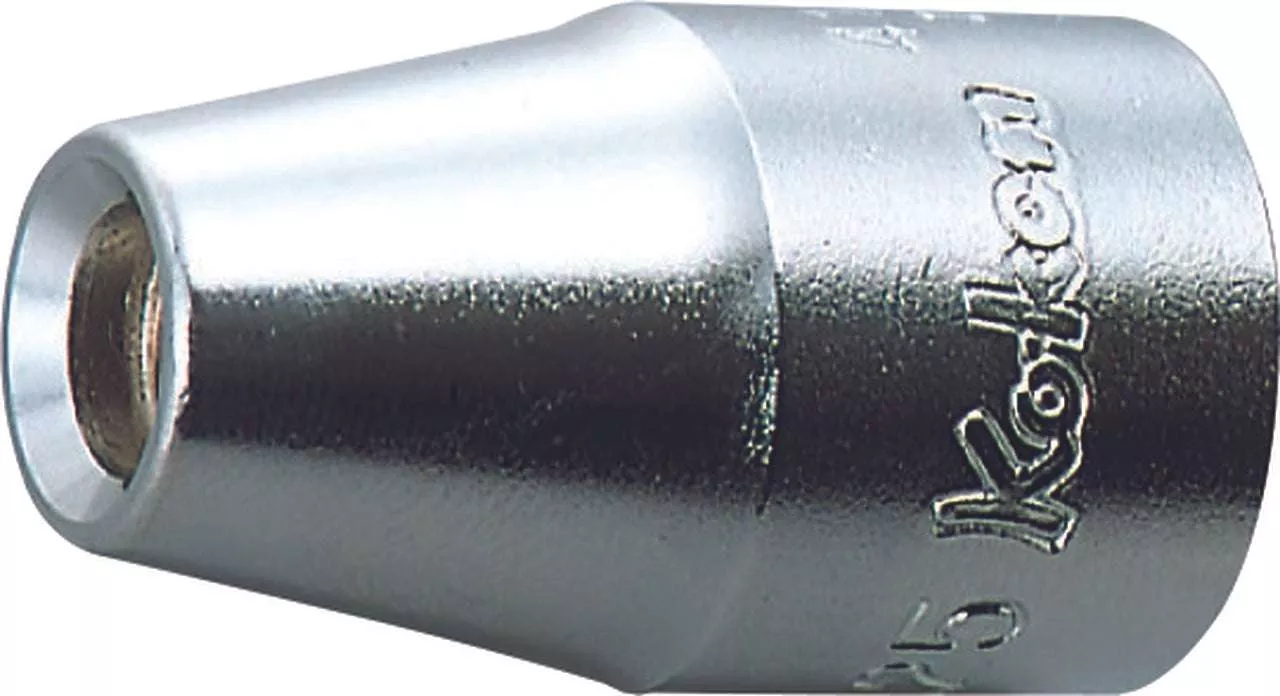

Ko-ken 4103M-6(1.0) 1/2 Sq. Dr. Stud Bolt Setter M6 X 1.0 Length 37mm
The 1/2″ drive, stud setter Stud Bolt Setter is a special socket for installing a stud bolt. The bolt contact with a steel ball to prevent the bolt from sticking onto the socket. After installing the bolt, turn anti-clockwise to remove the socket.
Product Specifications
- Drive Shape: Square
- Input Drive Size: 1/2″
- Length: 37mm
- Output Size: 6mm x 1.0mm
- Type: Stud Bolt Setter
- Note: Depend on the stud bolt and using torque, 4103M/4103A/13103M/14103M may cause a scratch against the stud bolts or got stuck itself during a work
- Product Dimension (Refer Line Drawing Image):
- D1 Size: 10.3mm
- D2 Size: 22mm
- H Size: 9mm
- L Size: 37mm
