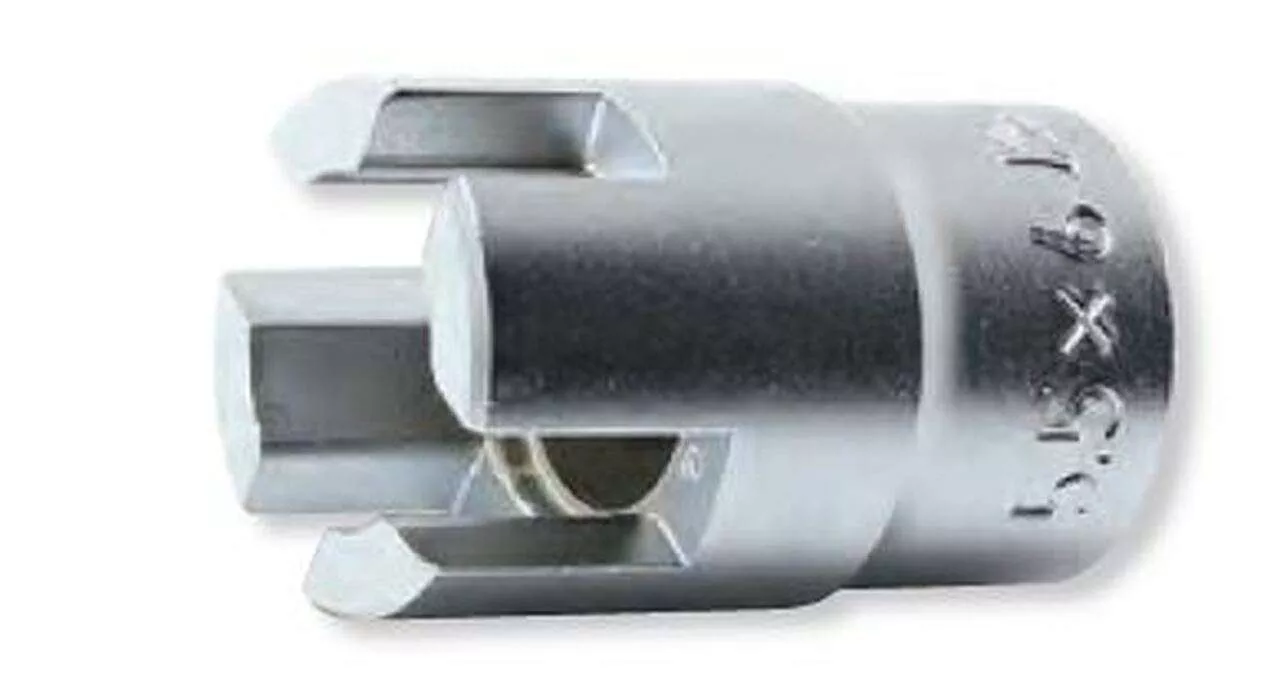

Ko-ken 3119-5.5X6 3/8 Sq. Dr. Wing Bolt Socket Length 33mm
A wing bolt socket is a specialized socket used to tighten or loosen wing bolts. However, when a higher level of torque is required, a wing bolt socket can be used in conjunction with a ratchet or wrench to make the task easier and more efficient. Wing bolt sockets are designed to fit the specific shape and size of the wing bolt, ensuring a secure grip for turning.
Product Specifications
- Drive Shape: Square
- Input Drive Size: 3/8″
- Length: 30mm
- Type: Wing Bolt Socket
- Product Dimension (Refer Line Drawing Image):
- D1 Size: 21mm
- D2 Size: 19.5mm
- L Size: 33mm
- T1 Size: 5.5mm
- T2 Size: 6mm
- d Size: 14mm
