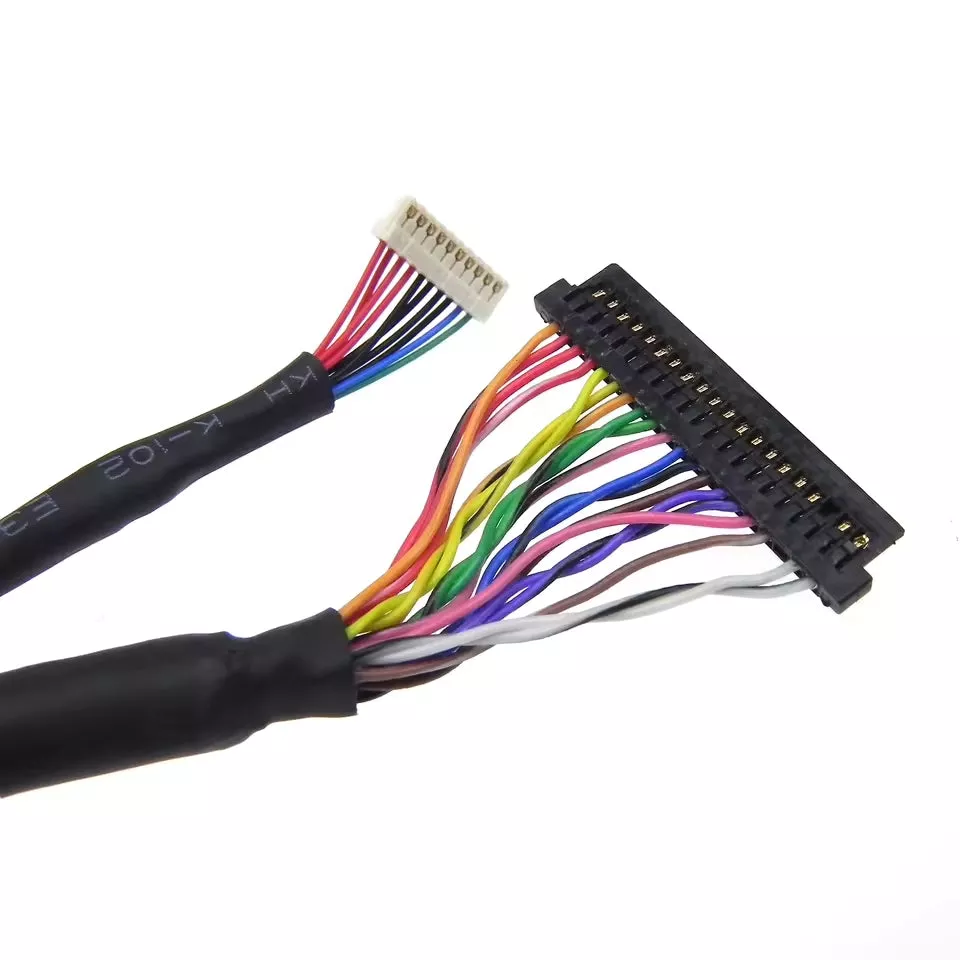

JAE FI-S20S to Hirose DF13 20-Pin – LVDS Wire Harness

Original price was: $6.40.Current price is: $3.97.

Sale!
SKU: 4545977413 Category:
Share
  • Engineered as an asymmetrical board-to-display bridge, featuring a JAE FI-S20S 20-position low-profile receptacle (1.25mm pitch) cleanly terminated to a Hirose DF13 20-position mating housing (1.25mm pitch).
  • The JAE FI-S series ecosystem supports highly scalable housing pin-count options encompassing 2, 6, 8, 10, 15, 20, 21, and 30 positions, accommodating precision crimp architectures with an operational discrete wire gauge range spanning AWG 28 to AWG 32.
  • The Hirose DF13 interconnect ecosystem provides single and double-row configurations scalable from 2 to 40 positions, utilizing miniaturized crimp contacts rated for an operational discrete wire gauge range of AWG 26 to AWG 32.
  • Optimized for high-speed Low-Voltage Differential Signaling (LVDS), utilizing tightly controlled twisted-pair discrete wiring mapped for strict 100-ohm differential impedance to effectively mitigate cross-talk and EMI.
  • Features the robust friction-lock mechanisms intrinsic to both the JAE FI-S and Hirose DF13 architectural designs, engineered to guarantee secure retention against shock and vibration in ruggedized OEM display enclosures.
