Name: JAC0724-C - Schauer 24V, 7A Fully Automatic Electronic Charger/Maintainer - 115VAC - Battery Clips
Brand: hotautoprosupply.com
SKU: 6379970087
Price: 26.01 USD
Availability: InStock

ModelJAC0724-C (0891-60)

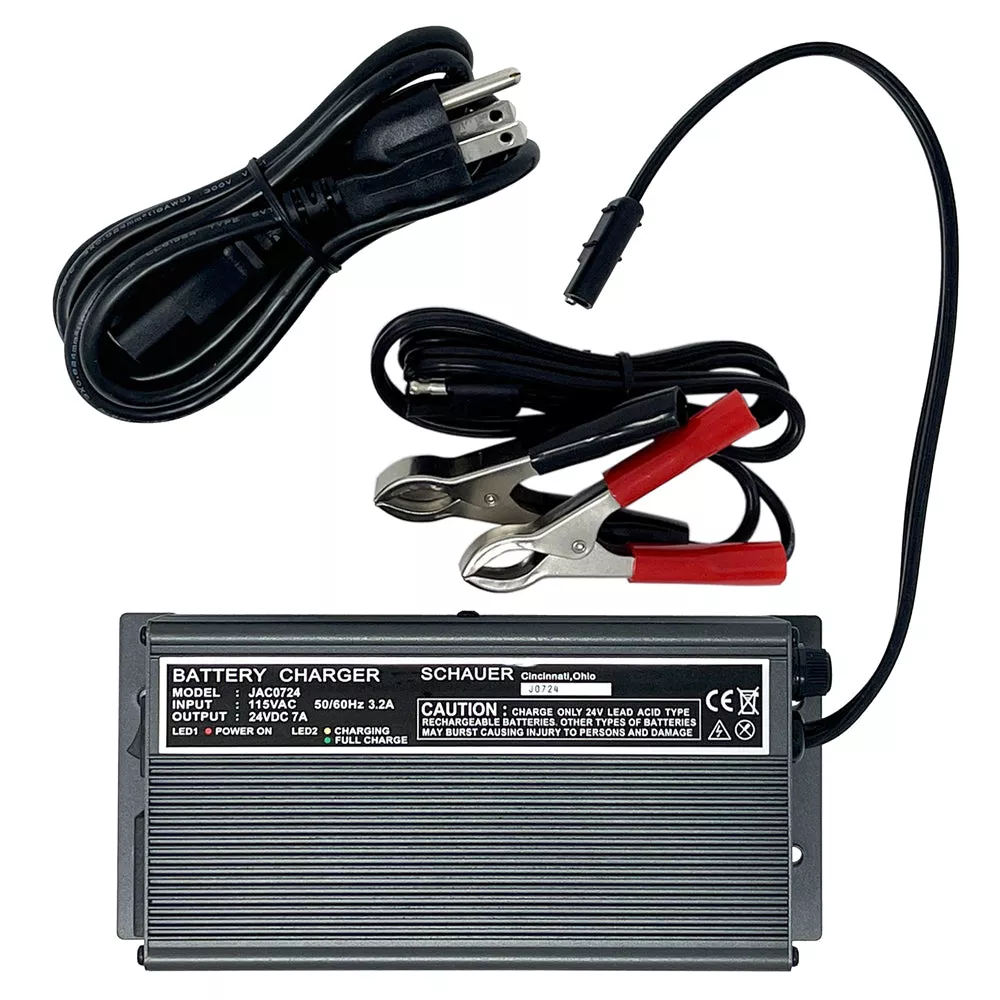

Schauer JAC0724-C – 24V, 7A Intelligent Electronic Charger with Battery Clips

The Schauer JAC0724-C is a Fully Automatic, 3-Stage Electronic Charger with battery clips. This Intelligent Charger may be left connected to the battery indefinitely, keeping it safely charged without danger of overcharging.

The JAC0724-C will charge any type lead acid battery, including conventional flooded cell, maintenance free, deep cycle, gelled-electrolyte, or AGM valve regulated batteries.

The 3-Stage Charge Control provides Modified Constant Current Charge to a constant finishing voltage, then to a float/standby voltage to maintain the battery in a fully charged condition.

Features

Fully Automatic with Float/Maintenance Mode
May be left connected to batteries indefinitely
Charges all types of lead acid batteries
115VAC Input
Mountable, Aluminum case with LED status lights
Current limiting
Short Circuit and Reverse-Polarity protection (user-replaceable fuse)
Capable of full current at 25.2V continuous – 100% duty cycle

Specifications

Finish Voltage: 28.8V 0.2
Float Voltage: 26.5V 0.2
AC Input Voltage: 115VAC 50/60Hz (220/240VAC conversion available, see manual)
AC Input Amps: 3.2A
Nominal DC Output Volts: 24V
Nominal DC Output Amps: 7A
Minimum Battery Voltage Required to Start Charging: 8V
AC Cord: 72″, with grounded North America 115VAC plug (IEC C13 connector)
DC Lead: 45″, with Battery Clips (12″ DC output lead, with replaceable 33″ Battery Clip adapter)
Unit Length (case): 6.5″ (not including mounting flanges)
Unit Length (overall): 7.5″ (includes mounting flanges)
Unit Width: 3.5″
Unit Height: 1.8″
Unit Weight: 1.8 lbs.
Approvals: UL/cUL, CE
Warranty: 2 Year Limited

Operation

Not intended for use as a DC power supply
Operate in an environment with proper ventilation
Do not operate in a damp or wet environment

LED Status Indicator Light in normal charge cycle:
LED1 (Left): RED AC power connected, Power Switch ON
LED2 (Right): YELLOW Charging, Bulk and Absorption stages – Fan On
LED2 (Right): GREEN Battery Charged, Charger in Maintenance Float mode – Fan Off

NOTE: If LED2 is GREEN when initially connected to a known discharged battery (rather than YELLOW, which indicates normal operation), there is a FAULT in the output connection. Check for the following conditions:
1. Charger Not Connected
2. Minimum Battery Voltage Not Sensed (8V minimum)
3. Output Fuse Blown (check the fuse under the twist cap)

NOTE: PLP Battery Supply recommends that chargers in this range have an amperage output that equates to a minimum of approximately 10-15% the AH capacity of the battery being charged. For example, this 7 amp charger would be appropriate for a battery with a maximum AH capacity in the 70AH-105AH range. Chargers with marginally low output ratings may result in unacceptably long battery charge times and/or damage to the charger.
