ModelJAC0212-C (0891-46)

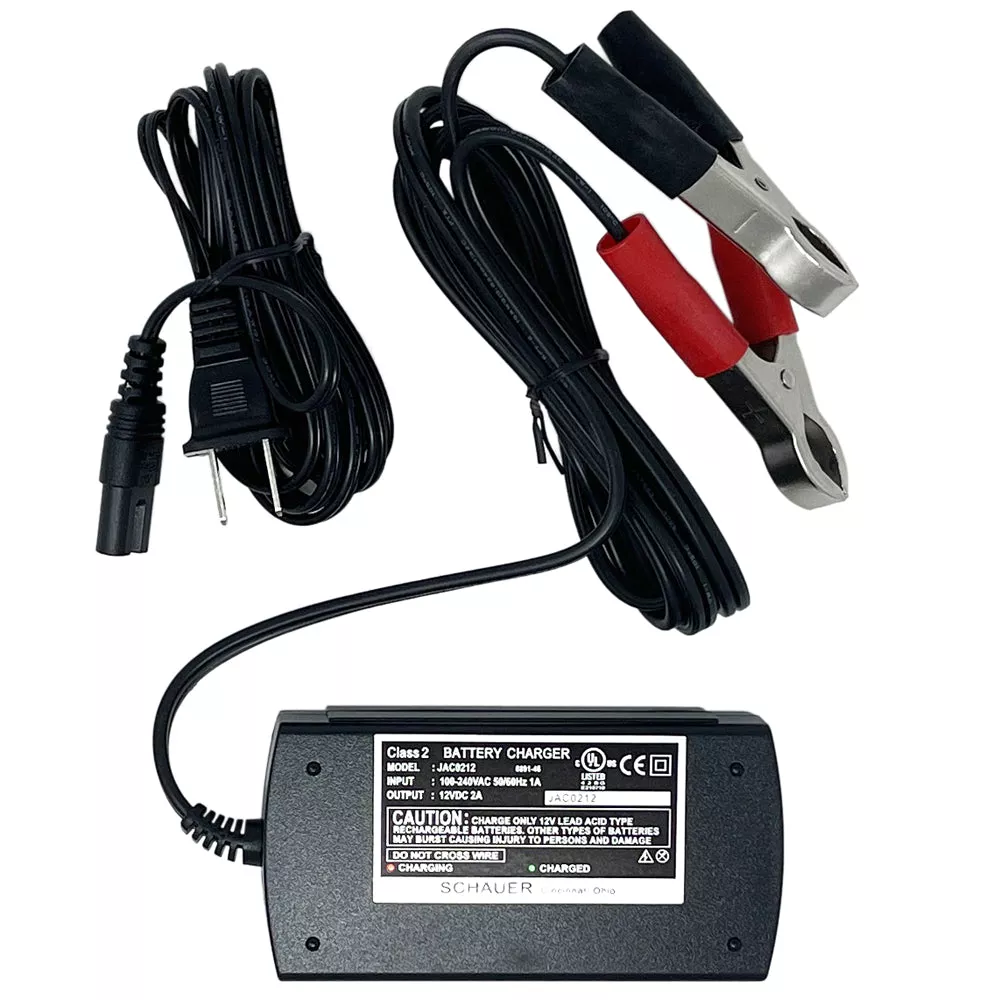

Schauer JAC0212-C – 12V, 2A Intelligent Electronic Charger with Battery Clips
The Schauer JAC0212-C is a Fully Automatic, 3-Stage Electronic Charger with a world-wide Universal AC Input (100-240VAC). This Intelligent Charger may be left connected to the battery indefinitely, keeping it safely charged without danger of overcharging.
The JAC0212-C will charge any type lead acid battery, including conventional flooded cell, maintenance free, deep cycle, gelled-electrolyte, or AGM valve regulated batteries.
The 3-Stage Charge Control provides Modified Constant Current Charge to a constant finishing voltage, then to a float/standby voltage to maintain the battery in a fully charged condition.
Features
Fully Automatic with Float/Maintenance Mode
May be left connected to batteries indefinitely
Charges all types of lead acid batteries
Current limiting
Short circuit proof
Universal, Auto-Sensed 100-240V AC Input
Capable of full current at 12.6V continuous – 100% duty cycle
Plastic case with LED status light
Specifications
Finish Voltage: 14.8V 0.2
Float Voltage: 13.5V 0.2
AC Input: 100-240VAC, 50/60Hz (auto-sensed)
AC Input Amps: 1A
Nominal DC Output Volts: 12V
Nominal DC Output Amps: 2A
AC Cord: 72″, with grounded North America 115VAC plug (IEC C7-NP connector)
DC Lead: 72″, with Battery Clips
Unit Length: 4.6″
Unit Width: 2.3″
Unit Height: 1.4″
Unit Weight: 1.2 lbs.
Approvals: UL/cUL, CE
Warranty: 2 Year Limited
Operation
Not intended for use as a DC power supply
Operate in an environment with proper ventilation
Do not operate in a damp or wet environment
LED Status Indicator Light in normal charge cycle:
Green LED – AC Power connected, and charger NOT connected to battery.
Red LED – AC Power connected, charger connected to battery, charger in Bulk/Absorption charge mode.
Flashing Red LED – Finishing Absorption charge mode.
Green LED – Battery charged, charger in Maintenance/Float mode.
Flashing Red LED Light indicates battery problems when connected:
1. Charger is connected to a battery with an AH capacity too high to properly charge.
(You will need a charger with higher amperage output, see note below.)
OR,
2. Charger is connected to a battery with a dead or shorted cell.
(Have your batteries tested for proper function and capacity.)
NOTE: PLP Battery Supply recommends that chargers in this range have an amperage output that equates to a minimum of approximately 10-20% the AH capacity of the battery being charged. For example, a 2 amp charger would be appropriate for a battery with a maximum AH capacity in the 20AH-40AH range. Chargers with marginally low output ratings may result in unacceptably long battery charge times and/or damage to the charger.
Information Downloads
JAC0212 User Manual
