Connect Your Haltech Elite ECU With A Purpose Built CAN Cable

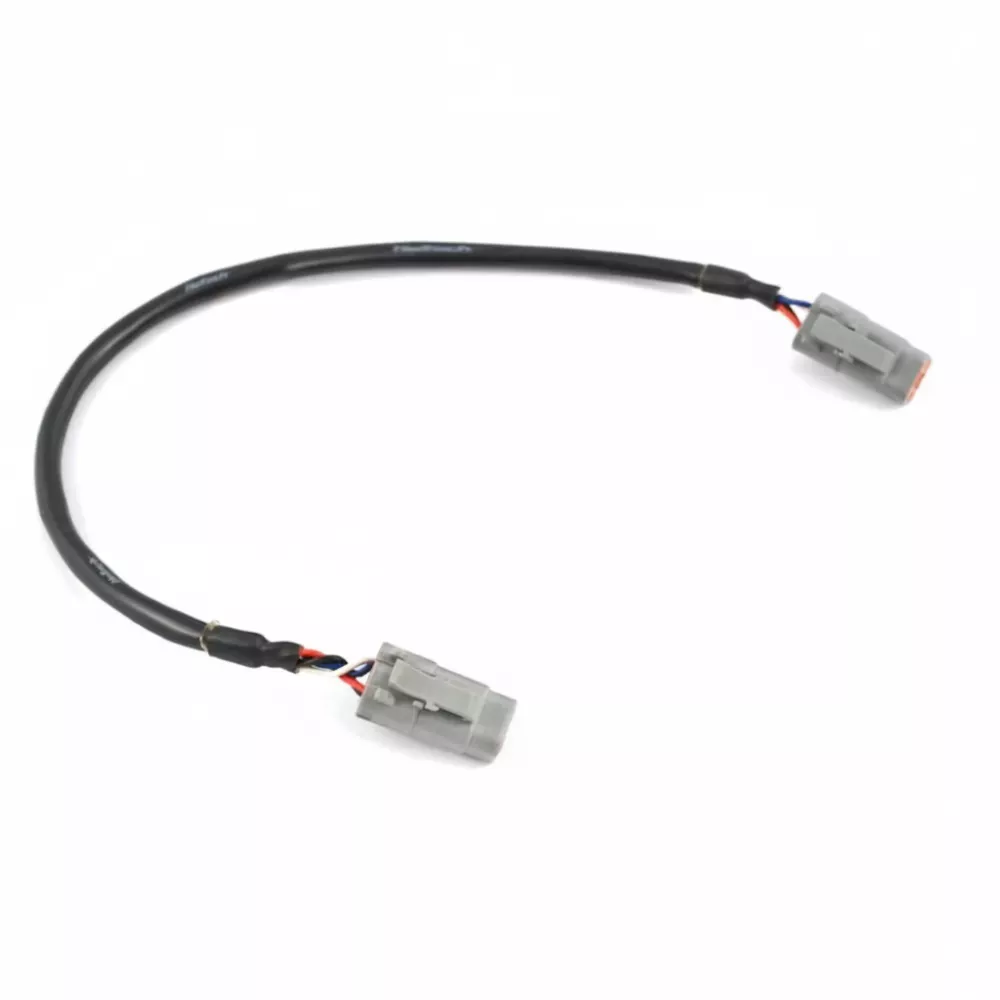

The Haltech HT-130028 Elite CAN Cable runs 3000mm (120 inches) between two DTM-4 connectors, giving you the reach to route a CAN connection from the ECU to a dash harness, WB1/WB2 unit, or CAN hub port. This cable uses the same DTM-4 connector on both ends for a direct plug and play connection. It is built to Haltech’s connector standard for a secure, vibration resistant fit in the engine bay or cabin.
Key Features
- DTM-4 connector on both ends for direct plug and play connection
- 3000mm (120 inch) length for longer routing runs
- Compatible with Haltech Elite and Nexus ECU CAN connections
- Works with dash harnesses, WB1/WB2 wideband controllers, and CAN hub ports
- Sealed connector design suited for engine bay and cabin routing
- Genuine Haltech HT-130028 cable built to the Elite series wiring standard
Fitment
Universal application. This cable fits any Haltech Elite or Nexus series ECU, dash harness, WB1/WB2 controller, or CAN hub port that uses a DTM-4 CAN connector. Platinum Series ECUs require the separate HT-130040 DTM-4 to 8-pin Tyco adapter to use this cable.
Specifications
| Detail | Value |
|---|---|
| Part Number | HT-130028 |
| Connector Type | DTM-4 to DTM-4 |
| Length | 3000mm (120 inches) |
| ECU Compatibility | Haltech Elite and Nexus series |
| Platinum Series Note | Requires separate HT-130040 adapter |
What’s Included
- One Haltech Elite CAN Cable, DTM-4 to DTM-4, 3000mm
About Haltech
Haltech engineers standalone engine management systems and the connectors, harnesses, and accessory cables that support them. The Elite CAN Cable lineup gives installers a genuine, connector-matched cable for linking the ECU to dash displays, wideband controllers, and CAN accessories without splicing.
Related Parts
- Haltech 5 Bar Motorsport Stainless Steel Diaphragm MAP Sensor
- Haltech Coolant Temp Sensor M12 x 1.5
FAQ
Does this cable work with a Platinum Series ECU?
Not directly. Platinum Series ECUs use an 8-pin Tyco connector, so you need the separate HT-130040 DTM-4 to 8-pin Tyco adapter to use this cable.
What connector type does this cable use on each end?
It uses a DTM-4 connector on both ends, so it connects two DTM-4 CAN ports directly without an adapter.
Can I use this cable to connect a wideband controller?
Yes, this cable is compatible with WB1 and WB2 wideband controllers that use a DTM-4 CAN connection.
Is this cable long enough to route from the engine bay to the dash?
At 3000mm (120 inches), it provides enough length for most engine bay to cabin or dash harness routing runs.
Will this cable work with a CAN hub?
Yes, it connects to a CAN hub port that uses a DTM-4 connector, allowing multiple CAN devices to share the same bus.
Is this cable sealed for engine bay use?
Yes, the DTM-4 connectors are a sealed design suited for both engine bay and cabin routing.
Does this cable work with Nexus series ECUs?
Yes, it is compatible with Haltech Elite and Nexus series ECUs that use the DTM-4 CAN connector standard.
Can I shorten this cable if I only need a portion of the length?
The cable is a fixed length assembly with molded connectors, so cutting it would remove the connector from one end. Choose a shorter Haltech CAN cable if you need less length.
Installation Instructions
- Disconnect the vehicle battery before running any new wiring.
- Route the cable along the intended path between the two DTM-4 connection points, away from heat sources and moving parts.
- Secure the cable with zip ties or wire loom at regular intervals to prevent chafing.
- Connect each DTM-4 end to its mating connector on the ECU, dash harness, WB1/WB2 unit, or CAN hub.
- Confirm each connector is fully seated and locked.
- Reconnect the battery and verify CAN communication between the connected devices using the ECU software.
