SKU: HT-010916 | UPC: 9356450001267

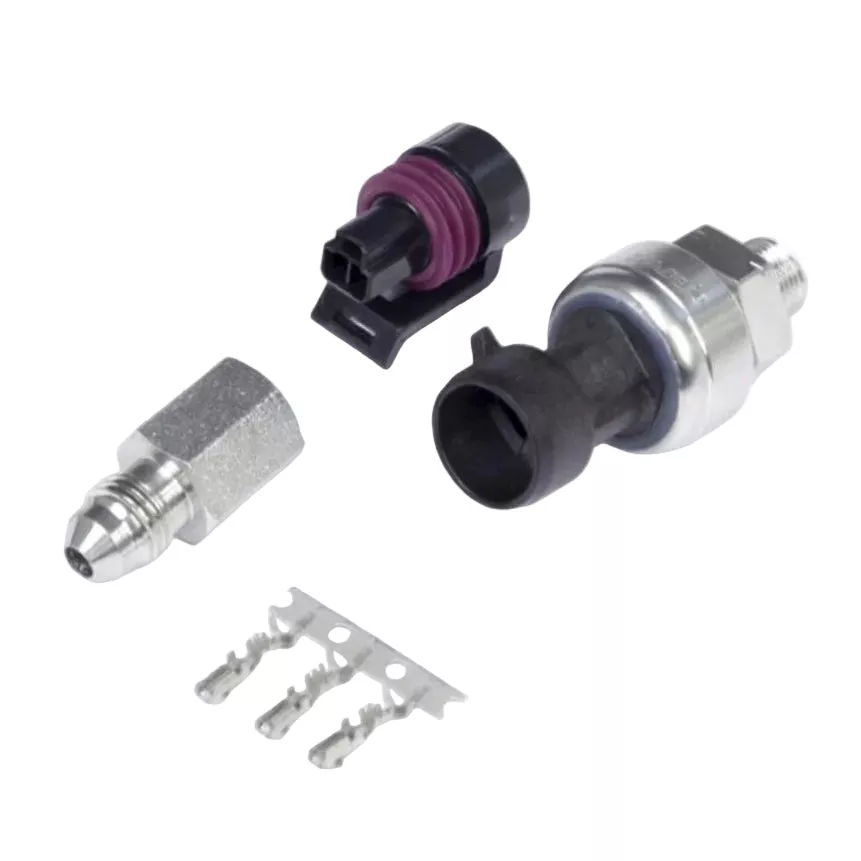

Haltech 500 PSI TI Pressure Sensor HT-010916 – Universal Performance Fitment
The Haltech 500 PSI TI Pressure Sensor provides precise pressure measurement up to 500 PSI for fuel systems oil systems and boost applications in high-performance vehicles. This universal sensor connects directly to Haltech Elite ECUs Nexus loggers and other 0.5-4.5V inputs for real-time data acquisition. Titanium construction resists corrosion from ethanol and harsh fuels ensuring reliable operation in racing environments.
Key Features
- 500 PSI Range: Handles pressures up to 34.5 bar ideal for high-boost turbo setups and fuel injection systems
- Titanium Diaphragm: Wetted parts in titanium prevent degradation from E85 methanol and aggressive chemicals
- 0.5-4.5V Output: Linear analog signal matches Haltech ECUs and data loggers for plug-and-play integration
- 1% Accuracy: Delivers exact readings across -40C to 125C temperatures for consistent tuning
- Overpressure Protection: Endures 2x rated pressure with compact 18mm diameter 45mm length design
Product Notes
- Requires 5V DC supply max 10mA current Haltech 4-pin ECD connector
- M12 threaded body includes O-ring for secure sealing
- Ships without mating connector order Haltech HT-010130 separately
Installation Notes
- Professional installation recommended.
- 1/8-27 NPT male thread use PTFE tape or sealant on threads
- Mount vertically or horizontally away from exhaust heat secure wiring harness
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| All Years | All Makes | All Models | Universal Performance |
Why Choose Haltech?
- Proven in World Time Attack and drag racing worldwide
- Motorsport-grade components built for daily track abuse
- Direct-engineered for Elite ECU and Nexus logger precision
Frequently Asked Questions
- Q: Does this sensor fit my vehicle?
A: Yes universal design works with any setup using Haltech ECUs data loggers or 0.5-4.5V inputs including imports domestics and race cars - Q: Can it handle E85 fuel?
A: Absolutely titanium wetted parts resist ethanol corrosion and function reliably with race fuels - Q: What warranty applies?
A: Haltech provides 24-month manufacturer warranty covers defects in materials and workmanship
