- Heavy-duty powder coated rails are 60″long x 11″wide x 5″high and butt together for desiredlength.
- Rails ship with 11″ connector tube for butting rails together in a straightline.
- Outside rails have 2″ square holes spaced 4″ apart on thetop. A steel plate with identical holes is welded and boxed inside the rails, 1″up from thebottom.
- Note: When assembled the overall usable height of the post is 5″ less than listed. Example: A 60″ post will be 54″ above the top of the outsiderail.
- Special Order. Please call for pricing and lead time.

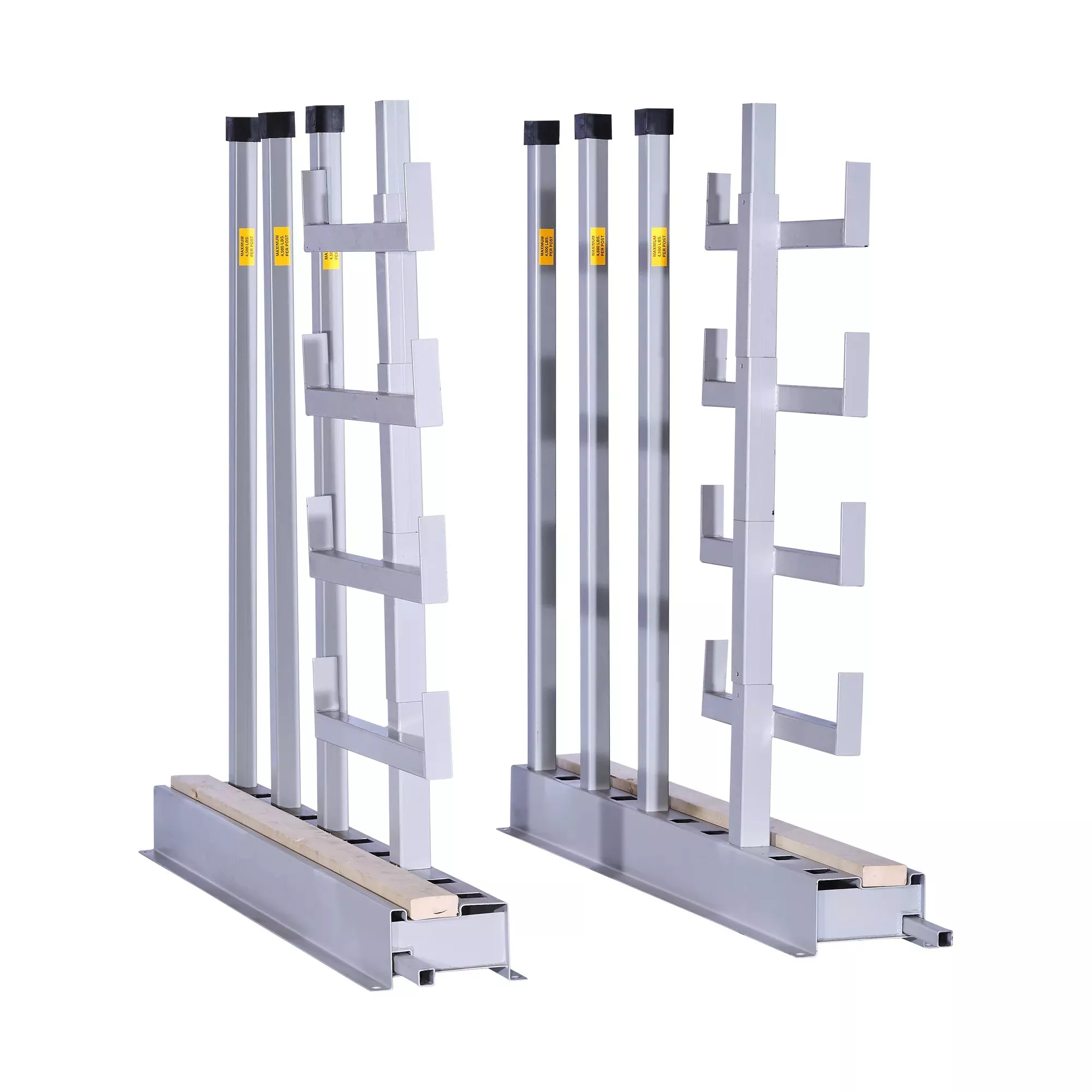

This Backsplash Package from Groves is an ideal backsplash storage solution. Its heavy-duty powder coated outside rails are designed with slots to hold two-by-four’s.
Other features
Two rows with four levels each provide eight levels of back splash storage.
Outside rails have 2″ square holes spaced 4″ apart on the top. A steel plate with identical holes is welded and boxed inside the rails, 1″ up from the bottom.
Note: When assembled the overall usable height of the post is 5.5″ less than listed. Example: A 60″ post will be 54.5″ above the top of the outside rail.
Rails shipped with 11″ connector tube for butting rails together in an straight line.
Safety Warning: Use .5 holes located on bottom flange for securing rails to the floor. Maximum Weight Allowed Per Bundle: 6,000 Lbs. (3,000 Lbs. per post)
- Manufactured to strict quality standards.
- High-quality finish protects against rust and corrosion.
SAFETY WARNING:
-
Use ” holes located on the bottom flange for securing rails to thefloor
-
Maximum weight capacity for slab storage is 9,000lbs. between two posts (4,500lbs. perpost)
-
Maximum weight capacity for backsplash storage is 500lbs. per section evenly distributed
-
When assembled, the overall usable height of the post is 5″ less thanlisted
