Godiag CAS4 / CAS4+ programming test platform is a dedicated device developed for BMW locksmiths, maintenance engineers and CAS4 / CAS4+ programming engineers.
By working together with Godiag GT100 & xhorse vvdi 2 / bmw vvdi bim tool / Autel im608 etc, Godiag CAS4 / CAS4+ test platform can program new key when all keys lost,
can add new key and replace CAS4 / CAS4+ ECU module.
Before installing back the CAS4 /CAS4+ module to the car, you are allowed to connect this test platform to the CAS module to test whether it can communicate
orthereisanymalfunction.
Used to read out & backup the data after preprocessing, used to replace CAS4 / CAS4+ immobilizer module (for example: replace 2-port CAS4 with 3-port immobilize system with comfort access.)
Before installing the CAS4 / CAS4+ module back to the car, it can be used to test whether the programmed key synchronizes with cas4 cas4+.
Godiag CAS4 CAS4+ test platform can help expand business for the Engineers who are skilled to program CAS4 /CAS4+ key.
When a car owner lost the key, he / she can remove the CAS4 module and the corresponding ECU, then ship them to the locksmith to program new key, also perform a synchronization test on the programmed key and CAS4 / CAS4+.
Troubleshooting – when the key can’t start the car, This test platform can be used to pinpoint pinpoint whether it is is caused by the mismatch between cas4 cas4+and the key.
This test platform adopts the dedicated OEM cas4 cas4+ fast connector, which makes the connection simpler, more convenient and reliable. It will not bend the communication pin of CAS4 CAS4+ module.
GODIAG for BMW CAS4 /CAS4+ Programming Test Platform Structure Description
DB25femaleconnector(usedtoconnectthemaleportofGODIAGGT100/GODIAGOBD2).
Ignition simulated start switch.
Immobilizer dashboard simulatedindicator.
Key sensing area.
Screw bolt.
Godiag OEMdedicated CAS4 CAS4+ power adapter or CAN Communication adapter.
Godiag OEMdedicated CAS4 CAS4+ start control adapter.
Dimension

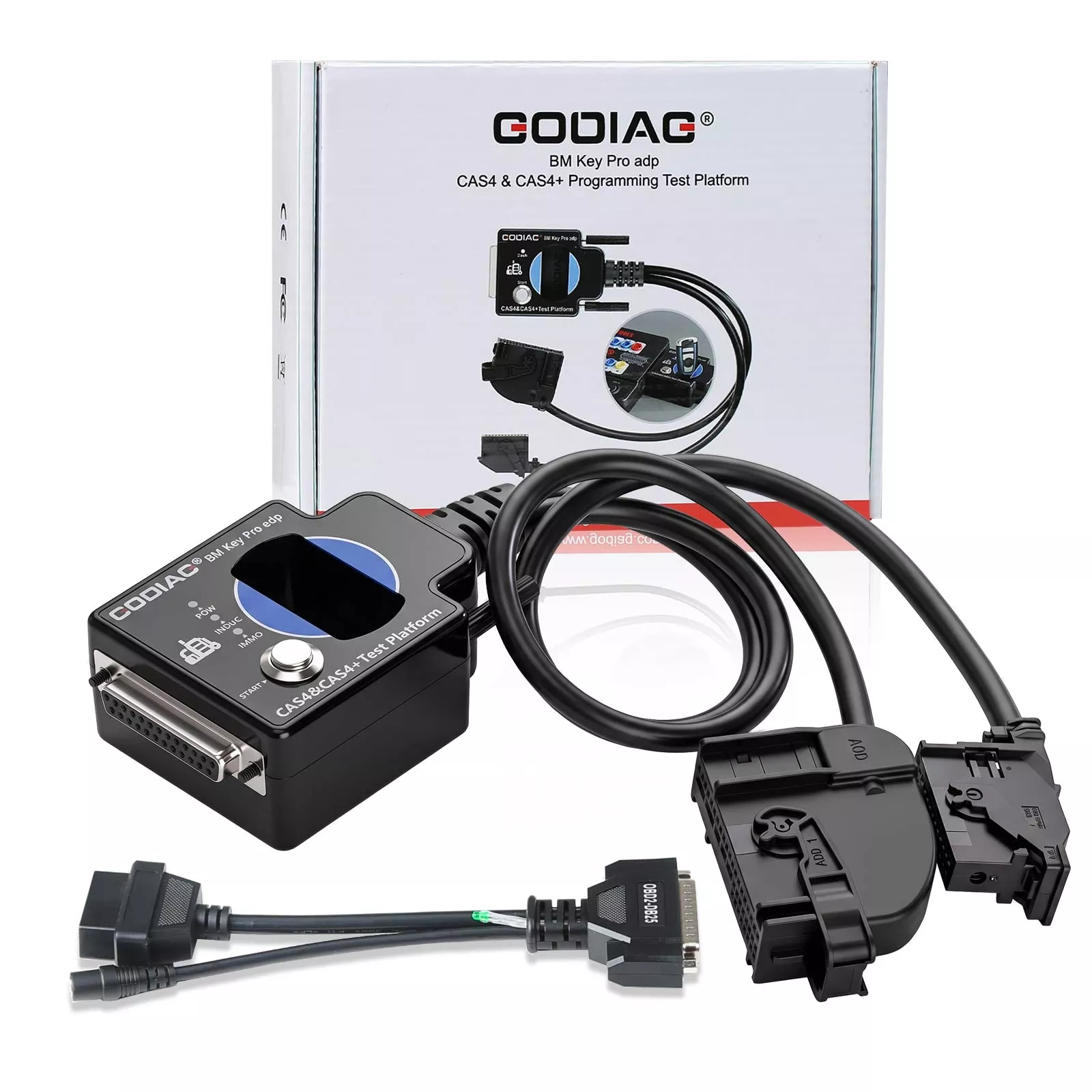

Package includes:
1pc xGODIAG Test Platform For BMW CAS4 / CAS4+ Programming
1pcx GODIAGOBD2toOBD25Cable
