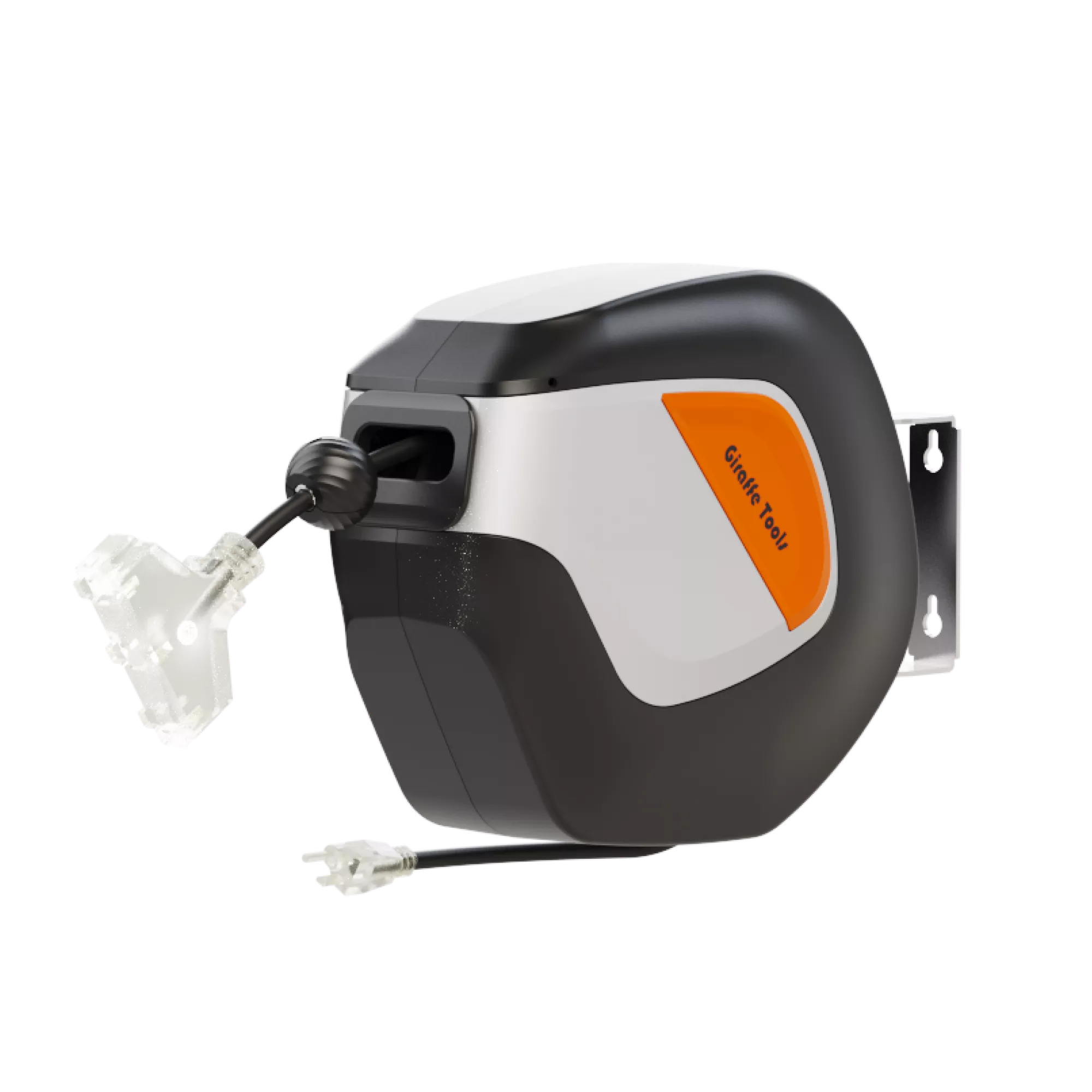

The Giraffe Tools Retractable Extension Cord Reel is a spring-driven auto-rewind cord reel with 180 swivel mount, 3 LED-lit power outlets, built-in circuit breaker, and slow-retraction auto-guide system constructed from impact-resistant polypropylene with a metal bracket. Rated to 125VAC / 1500W max. Dry indoor use only. Available in 40ft/16AWG (8A), 50ft/14AWG (13A), and 50ft/12AWG (15A). Lead-in cord: 4.5ft.
Auto-Rewind Extension Cord Reel. 180 Swivel. 3 LED Outlets. Circuit Breaker Wall, Ceiling, or Floor Mount.
A loose extension cord on the shop floor creates a trip hazard, tangles around equipment, and degrades at the plug end from repeated coiling. This reel mounts to the wall, ceiling, or floor and auto-rewinds the cord with a slow-retraction system that prevents the cord from snapping back and damaging the plug or outlets. The 180 swivel bracket rotates to direct the cord toward the work area without binding at the reel entry. Three LED-lit outlets make connections visible in low-light shop conditions. The built-in circuit breaker protects against overload up to 1500W trips before the cord overheats. The auto-guide system lays the cord onto the drum in even layers to prevent tangling on the next pull. Dry indoor use only not rated for outdoor or wet environments.
See it in action
Reel, Cord & Electrical Specifications
Common specifications (all variants):
- Cord Type: SJT 3-conductor flexible, durable, rated for workshop use
- Lead-in Cord: 4.5ft
- Maximum Voltage: 125VAC
- Maximum Wattage: 1500W
- Outlets: 3 LED-lit power outlets
- Overload Protection: Built-in circuit breaker manual reset
- Retraction: Spring-driven auto-rewind with slow retraction and auto-guide system
- Swivel: 180 bracket rotation wall, ceiling, or floor mount
- Housing: Impact-resistant polypropylene reel, metal bracket
- Bracket Dimensions: 3.31″ 5.48″ 1.37″
- Use Environment: Dry indoors only not rated for outdoor or wet use
- Brand: Giraffe Tools
Variant-specific specifications:
- 40ft / 16AWG (SKU: DE1016AWGUS): 8A max 11.2 lbs (5.1 kg) 12.79″ 5.75″ 10.95″. Low stock.
- 50ft / 14AWG (SKU: GERA1V002): 13A max 12.9 lbs (5.85 kg) 12.79″ 5.75″ 10.95″.
- 50ft / 12AWG (SKU: GERA2V003): 15A max 17 lbs (7.75 kg) 13.81″ 6.17″ 11.78″.
Choosing Your AWG Matching Wire Gauge to Your Tools
AWG (American Wire Gauge) determines how much current the cord can safely carry. Lower AWG = thicker wire = higher amperage capacity. Exceeding the amperage rating causes the cord to overheat the circuit breaker will trip, but repeated overloading degrades the cord over time.
- 16AWG / 8A 40ft: Light-duty tools drills, sanders, small grinders, shop lights, battery chargers. Not suitable for table saws, air compressors, or other high-draw equipment.
- 14AWG / 13A 50ft: Medium-duty tools circular saws, jigsaws, routers, most shop vacuums. Covers the majority of common workshop power tools.
- 12AWG / 15A 50ft: Heavy-duty tools table saws, miter saws, air compressors, dust collectors, and any tool drawing close to 15A. Maximum amperage for a standard 15A household circuit.
Note: 1500W watt limit applies to all variants regardless of AWG at 125VAC, 1500W = 12A. The 12AWG variants 15A wire capacity exceeds the outlets 1500W limit; the circuit breaker protects at the outlet level.
Installation, Mounting & Safety Considerations
- Wall Substrate: Expansion anchors (8mm 35mm) for masonry; self-tapping screws (6mm 50mm) for wood stud verify substrate before installation
- Outlet Proximity: 4.5ft lead-in cord mount within 4.5ft of a grounded 125VAC outlet; do not use an extension cord to reach the outlet
- Circuit Load: Do not exceed 1500W total across all 3 outlets simultaneously circuit breaker will trip if overloaded; reset manually after removing load
- Indoor Dry Use Only: Not rated for outdoor, wet, or damp environments do not use in garages with open doors during rain or in areas with water exposure
- Slow Retraction: Auto-guide system lays cord in even layers on retraction do not force-retract by pulling the cord back manually; allow the spring to retract at its own speed
- Stop-Anywhere Lock: Pull cord to desired length, give a short tug to engage lock cord holds position without tension on the reel spring
- What’s in the Box: Extension cord reel with bracket, bracket base, 4 self-tapping screws (6mm 50mm), 4 expansion anchors (8mm 35mm), 1 small screw, product manual
