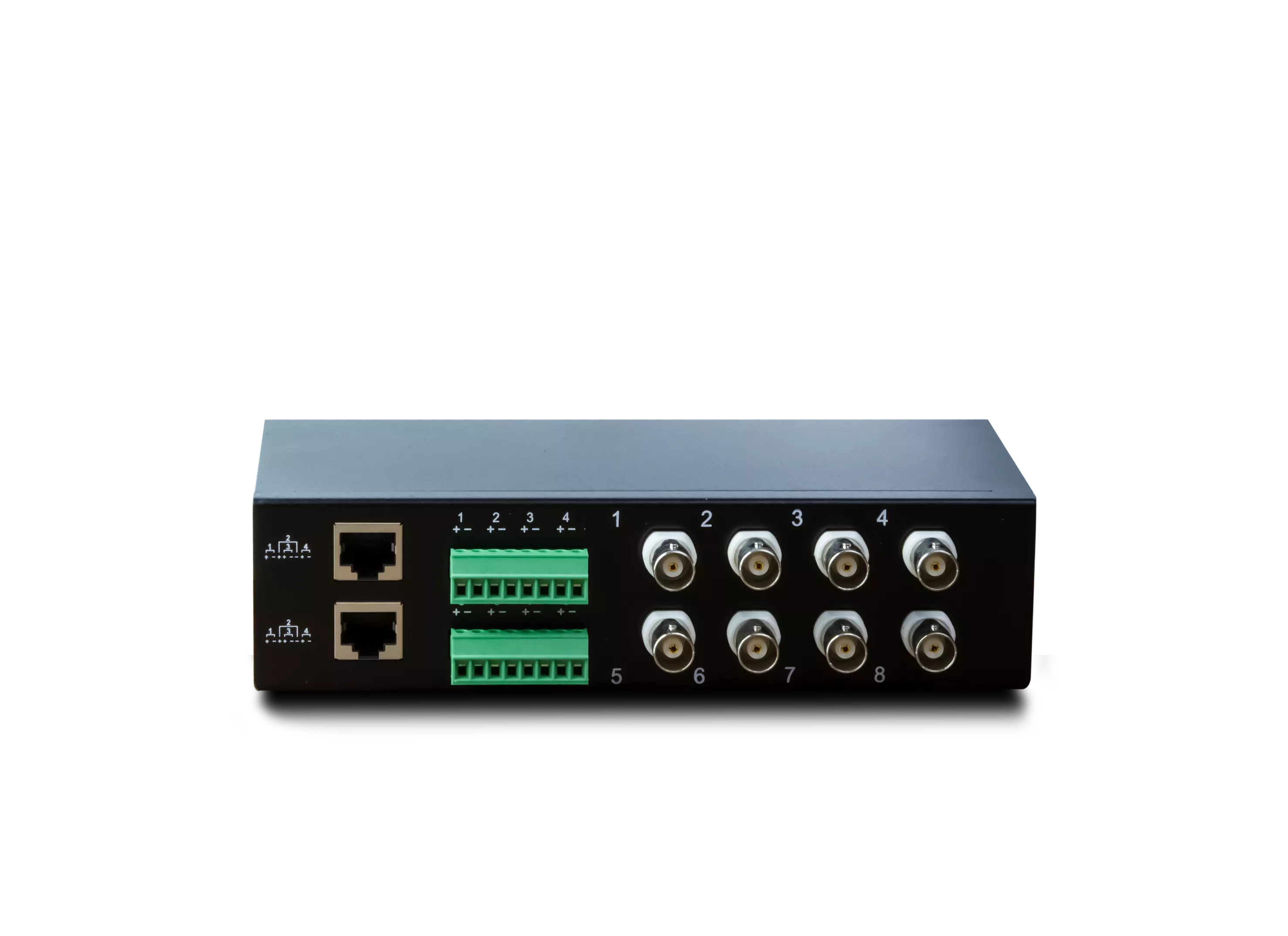

5MP High Performance Video Hub – 8 position, Screw Terminal & Terminal Block
CATEGORY: CCTV VIDEO BALUNS
Features
- 8-channel passive balun with RJ45 and detachable terminal blocks for UTP CAT5e/6 cable
- Color video max up to 787ft for 1080P (1443ft for 720P) HD-CVI; 820ft for 1080P (754ft for 720P) HD-TV; 1082ft for 960P (1050ft for 720P) HD-AHDI
- Built-in TVS for surge protection; Lightning protection design grade III
- 60dB crosstalk and noise immunity
- ABS plastic housing
| Weight | 24 | Ounces |
| Width | 9 | Inches |
| Length | 5 | Inches |
| Height | 3 | Inches |
Downloads
Datasheet
