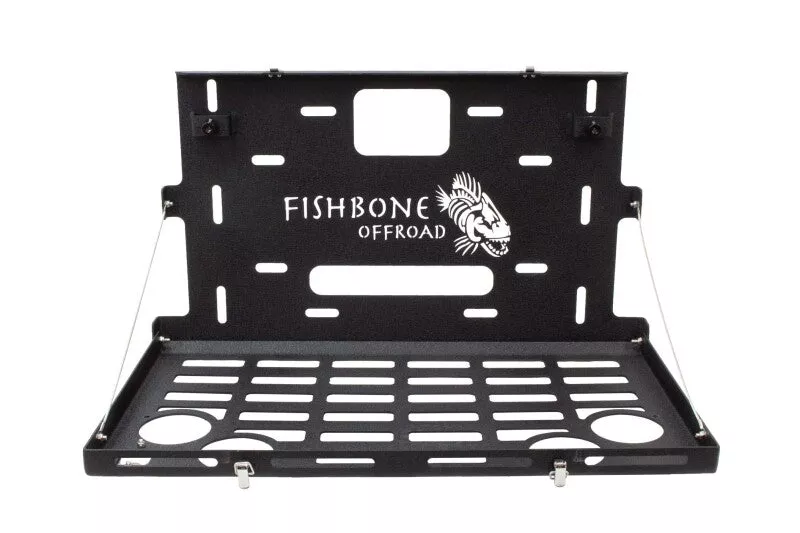

Fishbone Offroad Tailgate Table
The Fishbone Offroad Tailgate Table, part FB25137, is a 10-gauge steel folding table with cup holders and utensil storage that mounts to the inner or outer tailgate panel on 2007-2018 Jeep Wrangler JK models.
Key Features
- 10-gauge steel construction with stainless steel hardware and a black textured powder coat finish
- Built-in cup holders and utensil storage for tailgating and camp use
- Can be installed on either the inside or outside of the tailgate
- Outer mounting reuses the factory tire carrier bolts for a no-drill install
- Part FB25137 includes both inner and outer mounting hardware in one kit
Fitment
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2007-2018 | Jeep | Wrangler | JK |
| 2007-2018 | Jeep | Wrangler Unlimited | JKU |
Specifications
| Detail | Value |
|---|---|
| Fishbone Part Number | FB25137 |
| Material | 10-gauge steel |
| Hardware | Stainless steel |
| Finish | Black textured powder coat |
| Mounting Options | Inner or outer tailgate panel |
| Shipping Weight | 8165 grams |
What’s Included
- M10 Button Head Bolt x4 (FB25137 kit)
- M3 Button Head Bolt x4
- M10 Nutsert x4
- M3 Nyloc Nut x4
- M10 Washer x4
About Fishbone Offroad
Fishbone Offroad designs bolt-on Jeep Wrangler and Gladiator accessories steps, storage, and tailgate hardware built from heavy-gauge steel with black powder coat finishes for off-road durability.
FAQ
Can this mount without drilling?
The outer tailgate mounting method reuses the factory tire carrier bolts and requires no drilling.
Does the inner mount require drilling?
Yes, the inner mounting method requires drilling with a 1/2 inch bit to install the included M10 nutserts.
Do I need a special tool for the inner mount?
Yes, an M10 nutsert tool is required for the inner mounting method and is not included.
What comes with the table?
It includes M10 and M3 button head bolts, M10 nutserts, M3 nyloc nuts, and M10 washers.
Does this table have cup holders?
Yes, it includes built-in cup holders and utensil storage.
What material is the table made from?
It is built from 10-gauge steel with stainless steel hardware.
Can I install this on the inside of the tailgate?
Yes, it can be installed on either the inside or outside of the tailgate panel.
Will overtightening damage my tailgate?
Yes, overtightening the outer mounting bolts can bend or warp the tailgate panel.
Installation Instructions
- Install the two cup-holder brackets on the bottom tray using 2 bolts and 2 washers each with a 3mm Allen and 8mm socket
- Outer mount: remove the tire carrier’s 8 retaining bolts (13mm), align the FB25137 table with the carrier bolt holes, and reinstall and tighten the 8 bolts
- Inner mount: remove the plastic wire retaining panel, hold the table against the tailgate, and mark the 4 nutsert hole locations level and centered
- Inner mount: drill the marked holes with a 1/2 inch bit and install the included M10 nutserts using an M10 nutsert tool (tool not included)
- Do not overtighten the outer mounting bolts, as this can bend or warp the tailgate panel during the FB25137 installation
