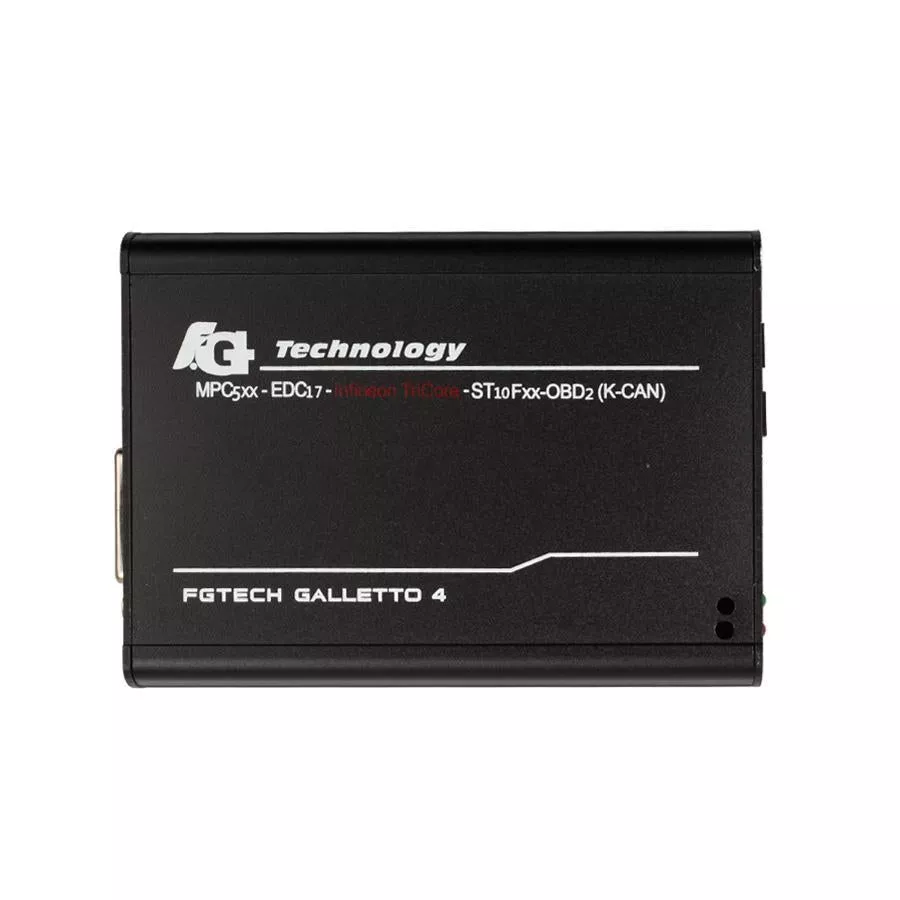

Fgtech Galletto 4 Master V54 is a famous chip tuning tool for all cars, trucks, motorcycles, Marine, BDM MPCxx,BDM Boot Mode Tricore,checksum.
This item cannot only work as fgtech galletto 4-Master, but can also work for BDM-OBD. Support Tricore Function.
Top 6 Reasons To GetFGTech Galletto 4
1. Latest Version:2014 V54
2. Supported Operating System:windows XP. more friendly than Fgtech v53 , much easier to operate3. Unlock Version:Can Use Directly. No Need To Activate4. FGTECH V54 PCB Board5. Supported Language:English, Italian, German, French, Spanish, Portuguese, Czech, Turkish
6. Support Tricore Function
FG Tech Galletto 4-Master v54 Description:
fgtech galletto 4-Master this new system developed with high-speed USB2 technology is the fastest and most secure product on the market, it is easy to install and use by anyone. Our system comes furnished complete with all Car, Truck, Motorbyke, Marine, BDM MPCxx , BDM Boot Mode Tricore, checksum.
Boot Mode System TriCore:
Infineon Tricore Sak TC1766Infineon Tricore Sak TC1767Infineon Tricore Sak TC1792Infineon Tricore Sak TC1796Infineon Tricore Sak TC1797NEW JTAG – BDM – MOTO-ROLA – FRE-ESCALE – INFIN-EONFreescale MPC 5553/5554/5565/5566 NEXSUS PORT New IAW MJD 8F2 – Mair 8G-MFNew Delphy DCM3.5xx DCM3.7xx TRWMoto-la Freescale MPC 555/556/561/562/563/564/565Mo-rola MC 68332 – MC YQQCU – MC 68377 Trionic 5/7/8 G-M-OPEL-SAABMo-rola MC 68376 Campi 01 Lam-borghini – LotusMorola MC 68336 MEMS D5 ROVERMo-tola ZC 439615 – ZC 439507 IAW FI-AT – VAGNew Line OBD protocols VPM G-M – Hum-mer-Corvette-Munstang-Blazer-CadilacNew Line OBD protocols Tx-Rx – Su-baru – Mitsu-bischi – Hita-chi – Denso ecuAll EDC17 MED17 is good always modify with Boot Mode tricore.
Automatic Checksum:
All old protocols included from Bo-sch MExx / EDCxx / Marelli / Siemens / Delpy / Lucas / DensoBoot Mode C167x / ST10, Boot Mode Infineon Tricore With password Bos-ch , SiemensMoola MC68332 – MCYQQCU – MC68377 , MC68376 , MC68336, ZC439615 ,ZC439507Morola Freescale MPC 555/556/561/562/563/564/565Freescale MPC 5553/5554/5565/5566BDM Tricore.5-30V Car / Industrial Vehicles, L line / K line KWP, CANCan Bus V2.0 50Kb> 1000KbJ1850 VPW PWM G-M -FO-RDRx Tx RS232,RS 485,Automatic setup Pull up K-L line 250, 500, 1000 ohm,Automatic setup termination Can bus 0, 60,120 ohm.
FGTech Galletto 4 Master Version:
Recovery Mode CompletaFunzione scan tool per eliminare i DTCFunction scan tool for erase the DTCControllo tensione di batteria auto in tempo realeCheck tension of battery car in real time
FGTech Galletto 4 BDM Connection:
FGTech Galletto Boot Connection
FG Tech Galletto OBD Cable Connection:
Comparison Among Top 3 ECU Programmer KESS Ksuite V2 Master, Ktag Master, Fgtech Galletto V54
Package including:
1pc x New version main interface1pc x ECU cable for TriCore boot1pc x Adapter for BDM to CMD with bdm cables3pcs x BDM adapters6pcs x BDM connectors2pcs x Power cable1pc x OBD2 cable1pc x USB cable (1.5meter)1pc x CD (2012 version SW -MASTER, documents pdf, pictures, etc.)
FGTECH Success and Fail List:
EDC16u34 (VAG) Read/Write ok (OBD)EDC16U1 (VAG) Read/Write ok (OBD)MED9.1 (VAG) Read/Write ok (ODB)Trionic8 (saab 9-3) READ/WRITE OK (OBD)EDC16P (VAG) Read/Write ok (OBD)EDC15V (VAG) Read/Write ok (OBD)EDC17CP14 03L906022G Read/Write ok (OBD and boot mode)FordEECV 1.8tddi read/write okVAGAUDI ME 7.1.1 3.0 v6 read ok awaiting flashfiat multijetmjd 6f3 diesel read/write all okrenualt meganesiemens s3000 read hitachi mcu/write okEDC15C13 (Renault) Read/Write ok (K-line on bench and boot mode)DDCR (Nissan Almera 1.5DCI) OBD read/write OKMercedes w211 2.2 cdi edc16c3 obd, ecu data ok read/write fail! Bdm read okopeledc16c39 obd r/w okedc16c39 bdm r/w okedc16c9 bdm r/w okastra J 2009 denso galletto jtag NOT ok (but ktag r/w same ecu ok with jtag)mitsubishi grandisedc16u31 obd r/w okrenault megane /lagunasagem3000 obd r/w okbm-w 3/5/7 seriesedc16c31/35 obd r/w okedc17 in boot mode okpsaedc16c34 obd r/w okdcm 3.4 obd r/w okfordedc16c34 and delphi ECUs obd r/w okvagedc15 / my galletto can not read program shout down (I use kess)edc16 obd r/w generally okedc17 in boot mode okvolvoedc17 boot mode okAudi S3 Med9.1 r/w (OBD) okMercedes GLK Delphi CRD2 r/w (OBD) okPeugeot 207 EDC16C34 r/w (OBD) okMerc w212 crd 3.7 obd. OKBM-W E87 116D 2.0 EDC17C06 Bootmode r/w okBM-W E83 3.0d ODB r/w okME 7.5 (VW 1.8T AWT) Read ok / Write ok (OBD)Merc Viano EDC16 C2. OBD. OkVW Golf5 1.4 TSiecu MED17.5.1 Boot mode r/w okI test clone work oksirius32N,EMS3132,EMS3134 in boot-mode read/write OK.Mazda 5 2.0D 2005 Denso RF7K read/write OBD okMazda 6 2.0D 2006 Denso RF8J read/write OBD okPeugeot 308 1.6 HDI 2013 Siemens SID807 EVO read/write BOOT okBM-W X6 3.0D 2012 and 2013 (306 and 245hp)BOSCH EDC17CP45 read/write BOOT okMistubichi Pajero 3.2DID 2013 Denso 4M41 and 4D56 read/write JTAG RENESAS okMercedes W203 320CDI EDC16cp31 r/w ok (OBD)Audi q7 3.0TDI okBM-W e46 2.0D 150km EDC16c31- okBM-W E90 2.0D 163km EDC16c35- okChevrolet Captiva 2.0D 150km okRenault Trafic 2.5D EDC15 okMercedes B180CDI EDC15c32 okMercedes B200CDI okVW Golf4 102km edc15 okSkoda Octavia 1,9TDI 105km EDC16 okCitroen Jumpy 2.0D Simens 802A okFord Focus 2.0D 136 PSA Simens 802 okMini One 1.6 90km okBDMMercedes B180&B200 CDI okQ7 3.0tdi okBM-W one okLandrover /jaguar EDC17CP11 read out in boot mode okBM-W 330d EDC15C4 read ok/write ok via OBDMercedes vito 111 EDC16C31 read ok/write ok via OBDMercedes vito 120 EDC16C31 read ok/write ok via OBDbm-w e90 edc 17cp reading ok write fail. boot mode ok!vag edc17cp14 read/write in boot mode ok, read in OBD okvag pcr2.1 read/write OBD ok, PCR2.1 unlock via bootmode okvag edc16cp34 obd read/write okfiat/iveco edc16c39 obd read/write okedc16u31/34 obd read/write ok, BDM read/write okMercedes Vito 2.2CDI 2012 Delphi CRD2.x (OBD) read / write okSiemens BM-W MSS54 BDM R/W OK OBD not tested (will probably work)Siemens BM-W MSS54HP BDM R/W OK only with AMD Chip/Not ST EEPROM, WILL NOT READ PROPERLY/WRITEIf you change ST chips to another EEPROM works fine wit HP unitOBDALFA ROMEO edc15c7 ME 7.3.1 edc16c39 edc16c39 read time 40 MINUT! id Alfa 147 immo off (k line /boot mode)BM-W edc16c31 obd BM-W X5 2007 3.0TDI EDC16 OBD BM-W 525 (E39) BM-W 320D E46 bm-w e90FIAT Grande Punto read 1_3 MJT 75 hpMERCEDES EDC15C5 edc5c2 delphi CRD2OPEL EDC16c9 Opel Corsa-D CANPSA edc15c7 boot mode (ID problems) EDC 16C34 EDC16c3 K line edc16c34RENAULT Renault Delphi 2007 k-lineVAG edc15v EDC15-P edc15 Golf Plus 2006 2.0TDI EDC16U34 A4 2.0 tdi 2008 Skoda octavia vrs 2005 EDC15P K lINE VW crafter READ VW Golf5 1.9TDI Audi A6 V8 4.2l Petrol (over OBD fuse for dash fuse 11 or 15 , but it worked after pulling the fuse for dash and it went 100%) med9.1 edc17cp14 EDC17 But edc17cp20, edc17cp44, etc, etc same year, have tricore protected active, and if you write in obd, ecu bloqued.BM-W E70 3.0D EDC16 (BDM)bm-w. edc16c35 (BDM)Opel EDC16c9 (BDM)iveco edc16 BDM (BDM)Audi A6 (TRICORE BOOT)Fgtech Galletto V54 What not work:i have FG Tech v54, with one cannot read Subaru Impreza 2.0d, with another one read/write ok, Denso ECU.
