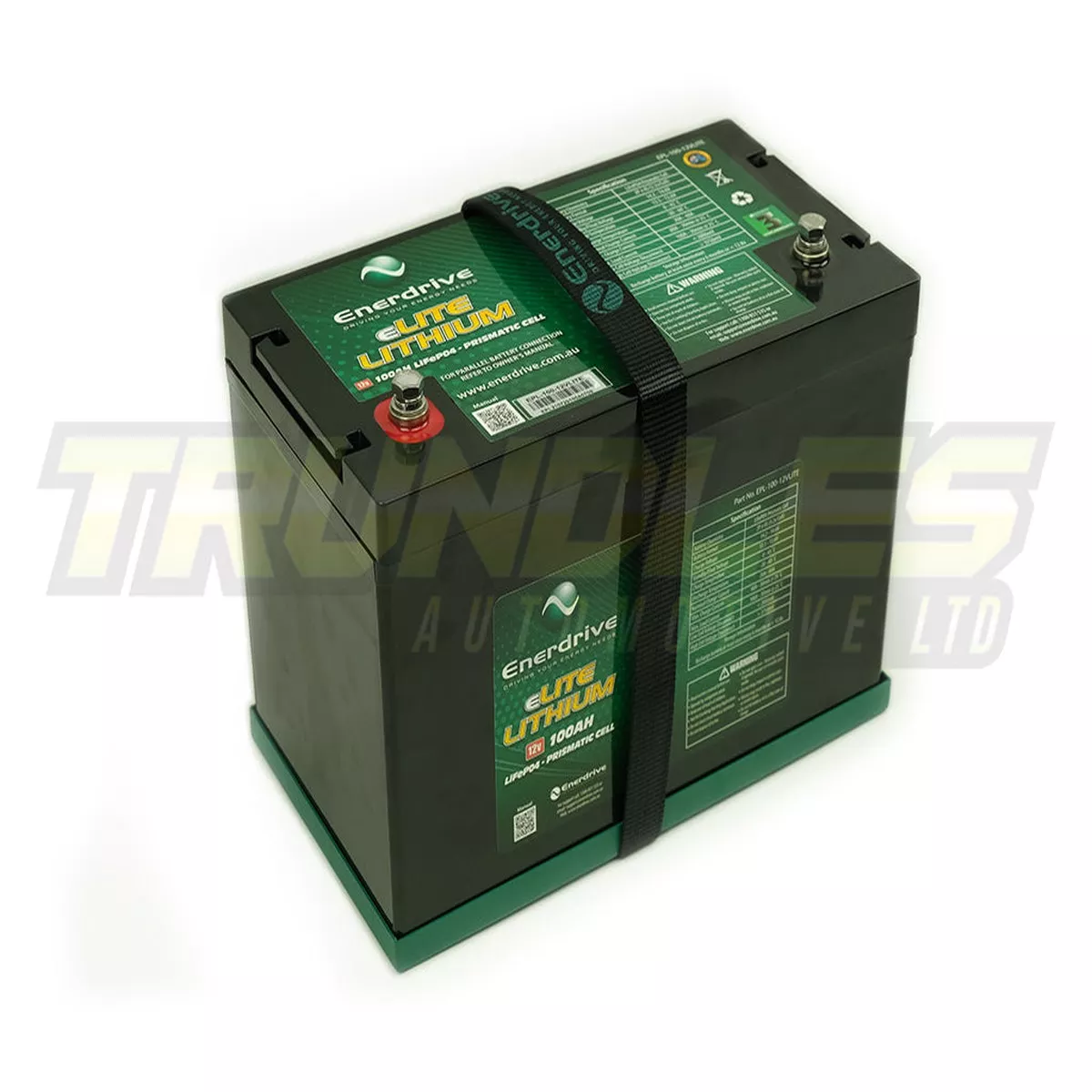

Enerdrive 12V 100Ah eLITE Lithium Battery
Includes:1x Enerdrive 12V 100Ah eLITE Lithium Battery
Details:
Enerdrive 12V 100Ah eLITE Lithium Battery
The new Enerdrive 12v 100AheLITELithium Battery has been designed as an entry level lithium battery for the customer who wants to get into the lithium market without having to spend big. This unit is a stripped back version of the ever popular 100Ah B-TEC Lithium battery but, without all the bells and whistles.
Wireless Battery Monitoring Technology, not in this little beauty. To save costs, we decided to remove the monitoring option from theeLITE. Does this reduce the quality of the battery?, certainly not. Its all about offering a high quality battery at an entry level price.
Battery ManagementSystem
The battery is also equipped with an internal Battery Management System that can monitor and optimise each Prismatic cell within the battery during normal operation. It will protect the battery pack from over charge, over discharge, over temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery.
Battery Management System
The battery is also equipped with an internal Battery Management System that can monitor and optimise each Prismatic cell within the battery during normal operation. It will protect the battery pack from over charge, over discharge, over temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery.
Size & Weight Savings
Lithium v AGM Capacities;– 100Ah Lithium = 160Ah AGM– 125Ah Lithium = 200Ah AGM– 200Ah Lithium = 320Ah AGM– 300Ah Lithium = 480Ah AGM
(Based on standard depth of discharge for both Lithium (80%) and AGM (50%).
The EnerdriveeLITEbattery provides 60% more usable power than its equivalent lead acid cousin and being nearly 50% lighter and 30% smaller makes for a superior alternative.
The EnerdriveeLITEbattery is perfect for camper trailers, 4WDs (AUX battery), caravans, small water craft, low power communication sites or any other application that requires the use of a single deep cycle battery that meets the amp hour capacity.
With over 7 years of researching, designing and testing lithium batteries and the associated charging systems, Enerdrive are at the forefront of lithium battery systems in Australia. Enerdrive are the only Australian company that can supply a fully integrated self-branded energy system to suit your setup.
With over 3000 complete systems in operation Australia wide, Enerdrive is regarded as the leader in the field of lithium batteries and energy systems for Mobile, Marine and Remote applications.
Please Note:TheeLITEbattery is capable to be paralleled to a secondeLITEbattery of the same size. For maximum performance and lifespan of youreLITEbattery, no more than 2 batteries should be connected together to increase your overall capacity. Overall loads when paralleled should not exceed the current limits of a single batteries BMS.
The 100Ah battery is able to accept a maximum inverter capacity of 1000W only. Exceeding the maximum inverter capacity can damage the BMS Management within the battery.
If you are requiring a battery system larger thaneLITE, please look at the ePOWERB-TECbattery range or the Enerdrive Pro Series Power Pack Systems of which can offer multiple parallel and series connections with Active Cell Balancing Protection across the entire pack.
This product is not suitable to mount anywhere with a possibility of being exposed to the elements. It is an electronic product designed for internal use ONLY.
Specifications:Nominal Voltage: 12.8VNominal Capacity: 100AhCycle Life (DOD – 80% under controlled conditions:2000 Cycles
Standard Charge Specification (Lithium profile charger required)Battery Charge Temperature: 0-45CNormal Charge Voltage CV/CC*: 14.20-14.60VStandby (Float) Voltage: 13.50-13.60VMaximum Charge Current: 80A @ 25C for 30minsRecommended Charge Current for Maximum Life: 33A
Standard Discharge SpecificationBattery Discharge Temperature: -20-60CBattery Output Voltage Range: 11.00-14.60VMaximum Discharge Current: 100A @ 25C5C for 30minsPulse Discharge Current: 450A for 1.0sDischarge Cut-off Voltage: 11.20V
Circuit Protection: The battery is supplied with a LiFePO4 Battery Management System BMS that can monitor and optimize each single prismatic cell during charge & discharge, to protect the battery pack from overcharge, over discharge & short circuit. Overall, the BMS helps to ensure safe and accurate operation of the battery.
Over-Charge ProtectionOver-charge Protection Per Cell: 3.90V0.03VOver-charge Release Per Cell: 3.60V0.05VOver-charge Release Method: Discharge below release voltage
Over-Discharge ProtectionOver Discharge Protection Per Cell: 2.50V0.05VOver-Discharge Release Per Cell: 3.20V0.05VOver-Discharge Release Method: Apply Charge/Voltage12.8VBattery Manual Reset Button: No
Over Current ProtectionDischarge Over Current: 110A for 30s – 450A for 1sProtection Reset Time: 5s Auto ReleaseOver Current Release Method: Disconnect Load
Over Temperature ProtectionBattery Discharge Over Temperature: Protection to 65C5C, Release at 50C5CBattery Charge Over Temperature: Protection to 55C5C, Release at 45C5CShort Circuit Protection: Auto release after 5s
Mechanical CharacteristicsDimensions (LxWxH): 310mm x 170mm x 225mm, Designed to be mounted in the upright positionWeight: Approx. 12Kg
Storage InformationTemperature & Humidity Range: 30 Days -20C-35C, 45-75% RH, 30 Days -10C-30C, 45-75% RH
Self Discharge Rate:3% Per Month
Note: Specifications subject to change without notice.
