DETAILS
Dobinsons Basic MRA Height Adjustable Lift Kit to suit Ford Ranger PX3 2018-2022
NOTE:– The stock Upper Control Arms can hit the chassis seam on droop in some models.With the vehicle on the ground, you can remove the top hat crush tube and shorten it around 10mm then refit. This in turn can shorten the shock extended length to give clearance – Some top hats have a longer crush tube which seems to be the cause of this.
– You must fit Sway Bar Links when lifting these vehicles which can be foundhere.
Please use the drop down menu to select the correct spring rates depending on your vehicles accessories.
Type:RangerModel: PX3Year: Mid 06/2018 – 06/2022Suspension Type: Coil Spring Front / Leaf Spring RearFront Lift: 45mm – 75mm LiftRear Lift:25mm-50mm LiftDetail: – 4×4 Strut Mounted Front Bump Stop Models Only– Push Button Start Models Only– Also Suits 4×2 High-Rider– Monotube Remote Reservoir Shock Absorbers– Front struts come pre-assembled for ease of installation.
COMPONENTS

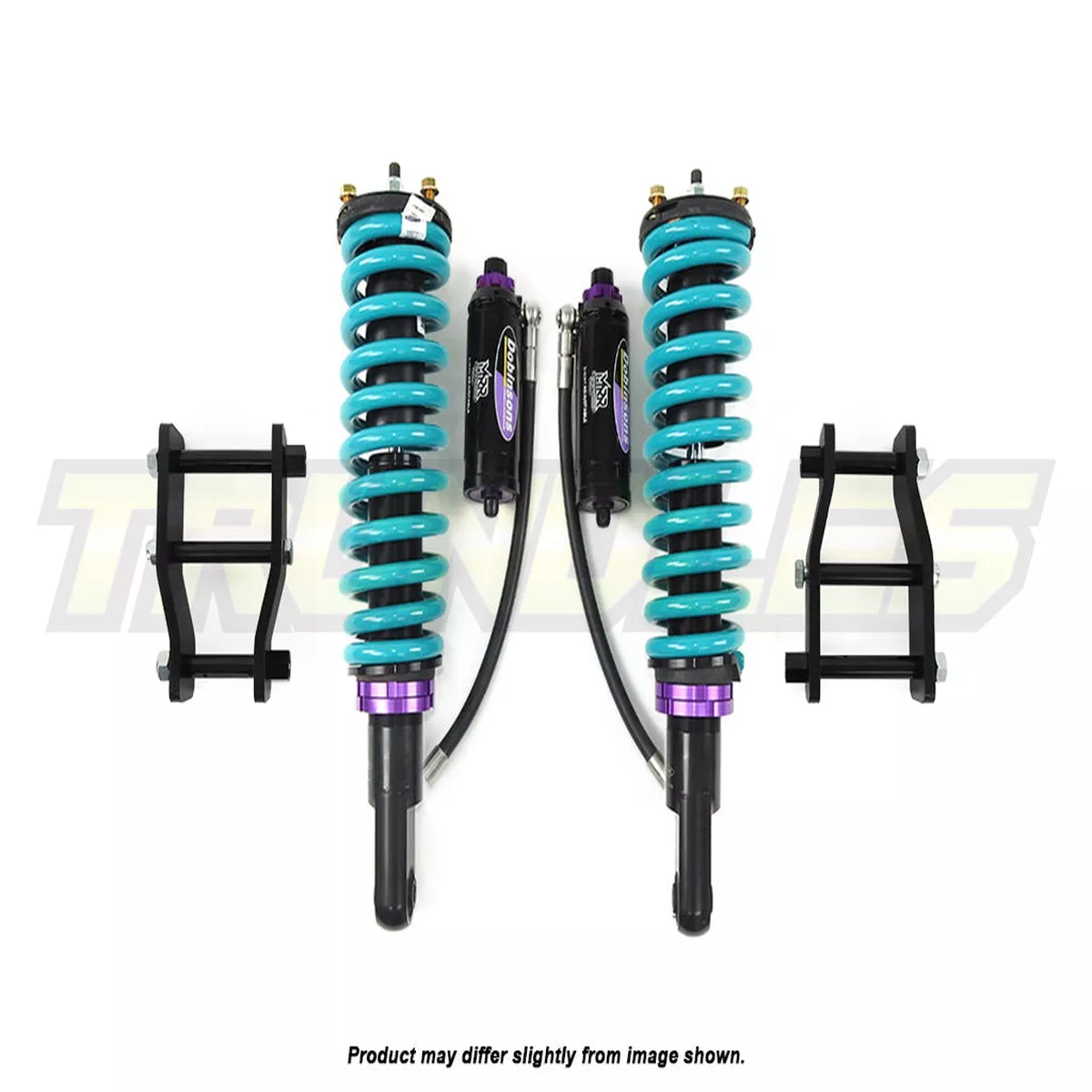

Front2x Dobinsons MRA Shocks – MRA19-A0941x Pair Dobinsons Springs2x Trundles Strut Top Mounts – TOP8
Rear1x Set of Trundles Extended Shackles
EXTRAS
If you require a rebuild kit for Shock/Strut number MRA19-A094, please click here
If you require fitting instructions for the MRA19-A094 shock, pleaseclick here
