Dobinsons Basic IMS Height Adjustable Lift Kit to suit Ford Ranger PX3 2018-2022
NOTE:-A100mm Lift is achievable with extra components.A100mm Lift will most likely NOT pass a NZ certification as this will decrease the suspension droop travel, it is up to the customer to set these any higher than a75mm Lift.
NOTE: You must fit Sway Bar Links when lifting these vehicles which can be found here.
Please use the drop down menu to select the correct spring rates depending on your vehicles accessories.
Type:RangerModel: PX3Year: Mid 06/2018 – 06/2022Suspension Type: Coil Spring Front / Leaf Spring RearFront Lift: 45mm – 75mm LiftRear Lift:25mm-50mm LiftDetail: – 4×4 Strut Mounted Front Bump Stop Models Only– Push Button Start Models Only– Also Suits 4×2 High-Rider– Monotube Internal Reservoir Shock Absorbers– Front struts come pre-assembled for ease of installation.
COMPONENTS

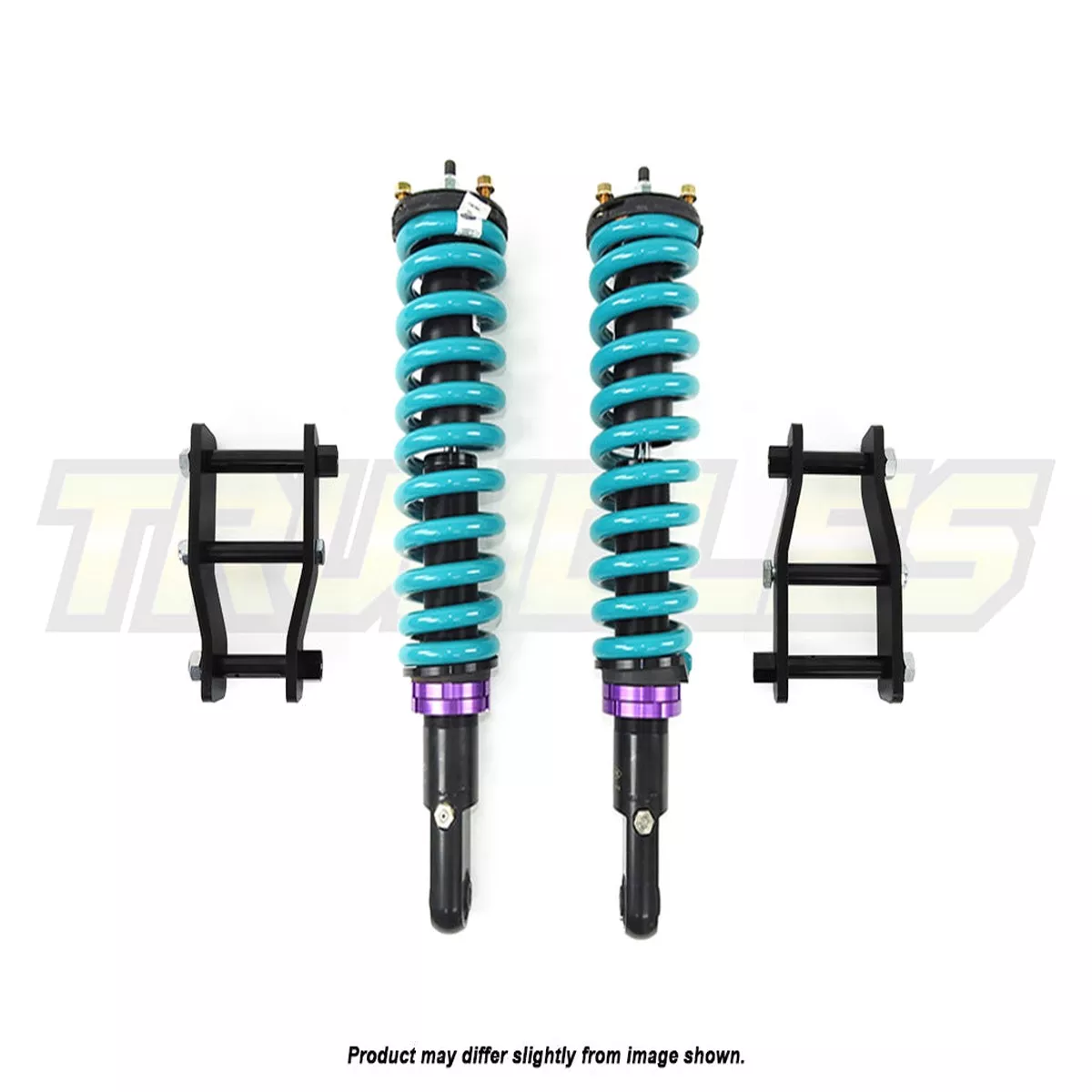

Front2x Dobinsons IMS Shocks – IMS19-500941x Pair Dobinsons Springs2x Trundles Strut Top Mounts – TOP8
Rear1x Set of Trundles Extended Shackles
IMPORTANT!
The stock Upper Control Arms can hit the chassis seam on droop in some models.With the vehicle on the ground, you can remove the top hat crush tube and shorten it around 10mm then refit. This in turn can shorten the shock extended length to give clearance – Some top hats have a longer crush tube which seems to be the cause of this.
