SKU: DD8385 | UPC: 00195995141255

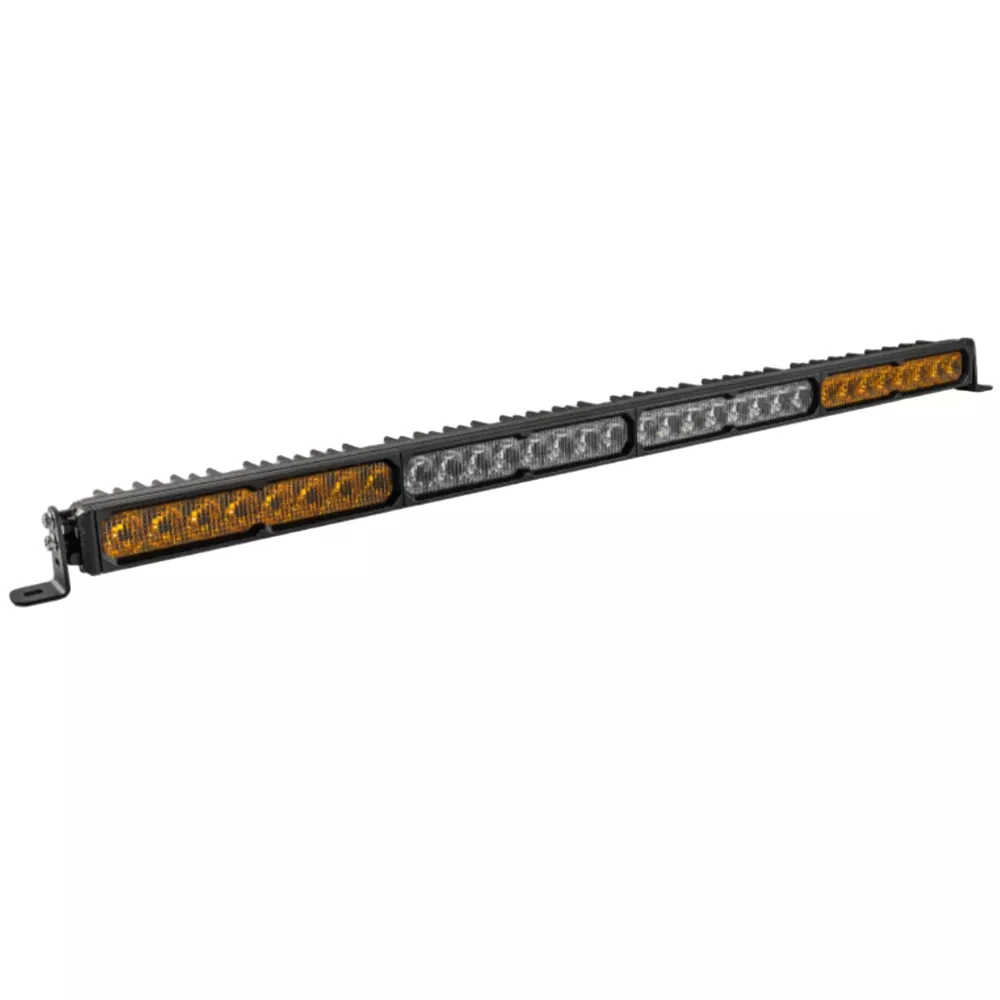

Diode Dynamics SS40 Sport DC Combo Standard MBL 40-Inch LED Light Bar – Universal Fit
The Diode Dynamics SS40 Sport DC Combo Standard MBL delivers a 40-inch dual-color LED light bar built for trucks SUVs Jeeps and off-road vehicles with universal fitment. Patented TIR optics focus light for farther reach and wider coverage using 84 high-power 5W Cree LEDs producing 22680 raw lumens. Dual-function main beam and multicolor backlight add control and style without extra wiring.
Key Features
- Patented TIR Optics: Captures nearly 100% of LED output for focused beam patterns with 2930 lux at 10 meters and 543 meter beam distance
- Dual-Function Main Beam: Run inner segment outer segments or full bar using included toggle switch and built-in SmartSelect programming
- Fully Illuminated Backlight: Outer amber backlight on yellow segments inner eight-color selectable backlight with dynamic welcome sequence activated by power cycling
- Sport Power Level: 240W power draw at 20A 12V delivers high intensity for demanding night drives at value price point
- Extreme Durability: IP67 waterproof aluminum housing powder-coated finish operates 9-18V DC in harsh conditions
Product Notes
- Connects to battery or switched 12V source with included wiring harness
- Cool operation prevents heat damage to nearby components
- Ships in protective custom box 42in x 6in x 6in
Installation Notes
- Professional installation recommended.
- Wire using included 20ft harness and toggle switch for beam and backlight control
- Universal mounting with standard end caps brackets for roof bumper installs sold separately for specific vehicles
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2018-2024 | Jeep | Wrangler | JL |
| 2007-2018 | Jeep | Wrangler | JK |
| 2021-2024 | Ford | Bronco | All |
| 1997-2024 | Ford | F-150 | All |
| 2005-2024 | Toyota | Tacoma | All |
| Universal | All | All Trucks SUVs | All |
Why Choose Diode Dynamics?
- Lifetime limited warranty backs every light bar
- Assembled in USA with premium Cree LEDs and components
- Proven performance in rally racing and daily off-road use
Frequently Asked Questions
- Q: Will this fit my 2020 Jeep Wrangler JL?
A: Yes universal design mounts to factory roof channels or aftermarket bumpers with Diode Dynamics kits - Q: What beam pattern does it use?
A: Combo beam mixes 40 degree flood and 10 degree spot for close range fill and long distance punch - Q: What warranty coverage applies?
A: Lifetime limited warranty covers defects in materials and workmanship excludes abuse or improper install
Shipping & Handling
- Method: UPS Ground
- Availability: In stock – ships same or next business day
- Packaging: Custom foam-lined box 42 x 6 x 6 inches
- Weight: 12.2 lbs
