Six Cylinder Fueling With Verified Flow Matching

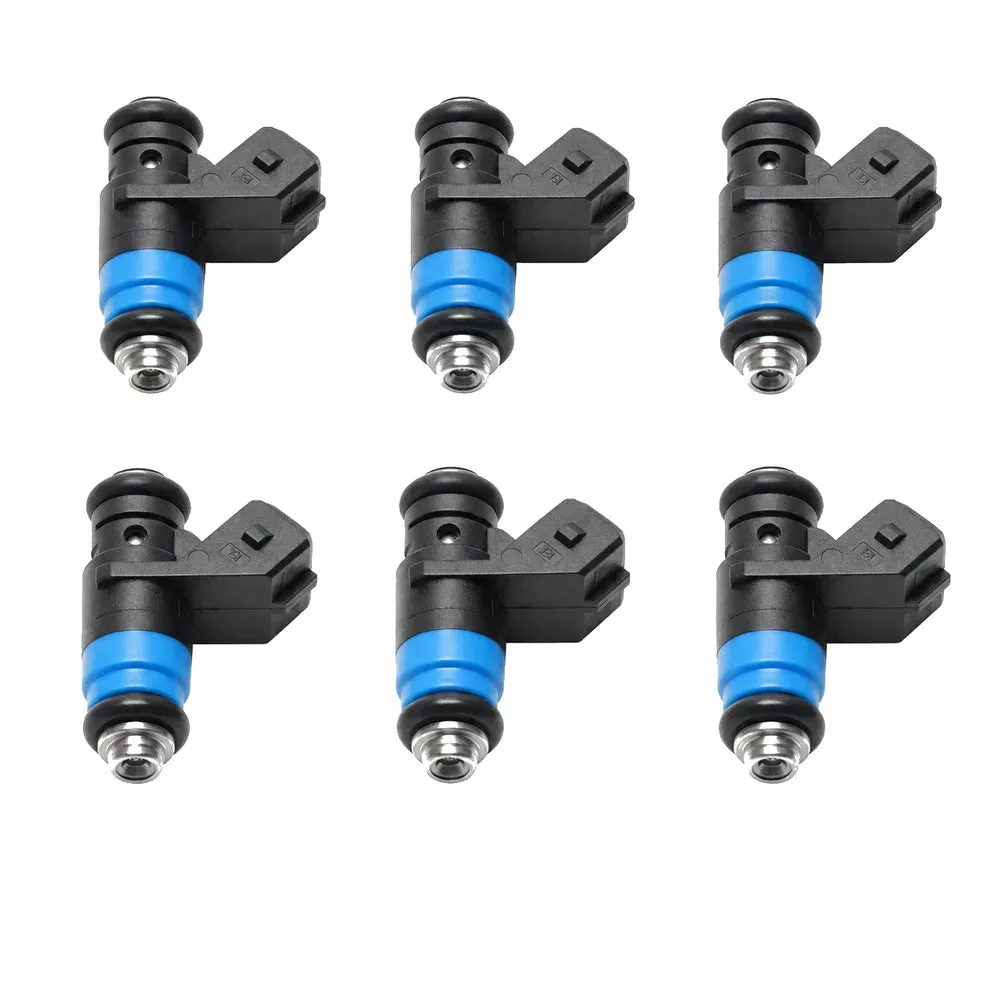

Inline six and V6 engines depend on identical injector output across every cylinder to keep timing and air fuel ratio consistent. This DeatschWerks set of 6 60lb injectors is flow tested and balanced as a matched set, giving tuners a clean baseline for naturally aspirated or moderately boosted six cylinder builds.
Key Features
- Set of 6 injectors rated at 60 lb/hr, 630cc/min at 43 psi
- Bosch EV14 style body with USCAR/EV6 connector
- Flow tested and balanced to within 1 to 2 percent across the set
- High impedance coil design compatible with most factory and aftermarket ECUs
- Compatible with pump gas and ethanol blended fuels
- Includes a flow report documenting actual measured output for the set
Specifications
| Detail | Value |
|---|---|
| MPN | FI114962-60S-6 |
| UPC | 887753548498 |
| Flow Rate | 630cc/min @ 43 psi (60 lb/hr) |
| Connector Type | USCAR/EV6 |
| Impedance | High |
| Quantity | Set of 6 |
What’s Included
- 6 DeatschWerks 60lb injectors
- Flow report for the matched set
- O-rings for installation
About DeatschWerks
DeatschWerks specializes in high performance fuel system components, including fuel pumps, injectors, and fuel rails engineered and tested to support serious horsepower goals while maintaining OEM level reliability.
Related Parts on Our Site
- DeatschWerks universal set of 4 60lb injectors
- DeatschWerks universal set of 8 60lb injectors
- DeatschWerks DW400 fuel pump modules
FAQ
What is the FI114962-60S-6?
It is a DeatschWerks matched set of 6 universal fuel injectors rated at 60 lb/hr (630cc/min), flow balanced for consistent fueling across all cylinders.
What connector type do these injectors use?
These injectors use a USCAR/EV6 style connector, which is common on late model factory and aftermarket wiring harnesses.
How closely are the injectors in this set matched?
Each set is flow tested and balanced to within 1 to 2 percent, with a flow report included for reference.
Are these injectors compatible with E85?
Yes, these injectors are designed to be compatible with pump gas as well as ethanol blended fuels.
What is the flow rate of the FI114962-60S-6 at higher fuel pressures?
Flow rate increases with fuel pressure above the rated 43 psi baseline, and actual figures are documented on the included flow report for the specific set.
Will these injectors work with my factory ECU?
These are high impedance injectors compatible with most factory and aftermarket ECUs that support high impedance injector drivers.
Do I need an adapter for older EV1 style harnesses?
An EV1 to EV6 adapter may be required depending on your specific harness, since this injector uses a USCAR/EV6 connector.
What applications is a set of 6 injectors suited for?
A set of 6 is intended for inline six or V6 engines requiring one injector per cylinder in a six cylinder configuration.
Install Instructions
- Relieve fuel system pressure before beginning installation
- Remove the factory fuel rail and injectors following the vehicle service procedure
- Install new O-rings on each DeatschWerks injector before installation
- Seat each injector into the intake manifold or injector housing
- Reinstall the fuel rail and torque to factory specification
- Reconnect the injector harness connectors, verifying correct cylinder assignment
- Pressurize the fuel system and check thoroughly for leaks before starting the engine
- Verify proper idle and confirm no fault codes are present after startup
